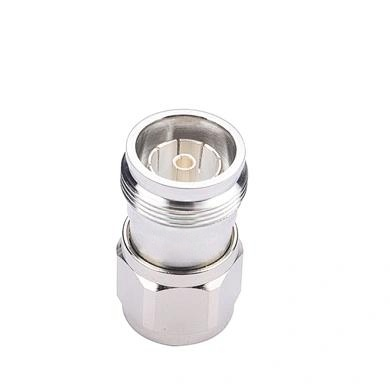

Understanding the MOP-AD-NM-MF: A High-Performance RF Connector for Reliable Signal Transmission
nnWhen precision and durability are paramount in RF applications, the MOP-AD-NM-MF stands out as a robust solution designed to maintain signal integrity across a wide frequency range. This connector, engineered with a straight mounting angle and advanced plating, ensures minimal signal loss and exceptional resistance to environmental factors. Its construction prioritizes low inter-modulation distortion, making it an ideal choice for demanding telecommunications and broadcast systems. The key to its performance lies in the meticulous balance of electrical and material properties, which directly impact the quality of signal transmission. Whether deployed in base stations, antennas, or test equipment, the MOP-AD-NM-MF delivers consistent results that engineers can trust.nn
Key Specifications of the MOP-AD-NM-MF Connector
nnTo fully appreciate the capabilities of this connector, it is essential to examine its technical parameters. The following table outlines the critical electrical, mechanical, and environmental specifications that define its performance.nn| Parameter | Value |n|———–|——-|n| Interface | Graphics for reference only |n| Model | MOP-AD-NM-MF |n| Mounting Angle | Straight |n| Impedance | 50 Ω |n| Frequency Range | DC~3 GHz |n| 3rd Order Inter-modulation (dBc@2×20W) | ≤ -155 |n| Inner Contact Resistance (mΩ) | ≤ 1.0 |n| Outer Contact Resistance (mΩ) | ≤ 0.4 |n| Insulation Resistance (M•km) | ≥ 5000 |n| Dielectric Withstanding Voltage (V, RMS, 50Hz, at sea level) | ≥ 2500 |n| VSWR (Voltage Standing Wave Ratio) | ≤ 1.06 |n| Insertion Loss (dB) | ≤ 0.08 |n| Inner Contact Material | Brass alloy plated with silver |n| Outer Contact Material | Brass alloy plated with Tri-Alloy |n| Insulator Material | PTFE |n| Temperature Range (°C) | -40 to +85 |n| Waterproof Rating | IP67 |n| RoHS Compliance (2011/65/EU) | Yes |nn
Electrical Performance and Signal Integrity
nnThe electrical properties of the MOP-AD-NM-MF are optimized for high-frequency applications. With an impedance of 50 ohms and a frequency range extending to 3 GHz, it supports a broad spectrum of signals while maintaining low VSWR and insertion loss. The third-order inter-modulation level of ≤ -155 dBc ensures minimal distortion, which is critical in systems where signal clarity is non-negotiable. The low contact resistance values—1.0 mΩ for the inner contact and 0.4 mΩ for the outer contact—reduce power loss and heat generation, while the high insulation resistance (≥5000 M•km) prevents leakage currents. The dielectric withstanding voltage of ≥2500 V RMS ensures robust isolation, safeguarding against voltage surges.nn
Material and Plating Design for Durability
nnThe choice of materials directly influences the longevity and performance of the MOP-AD-NM-MF. The inner contact features a brass alloy plated with silver, which enhances conductivity and corrosion resistance. The outer contact, also made from brass alloy, is plated with Tri-Alloy, a proprietary coating that provides superior wear resistance and environmental protection. The insulator, crafted from PTFE (polytetrafluoroethylene), offers excellent dielectric properties and thermal stability. Together, these materials ensure that the connector maintains its electrical characteristics even under harsh conditions.nn
Environmental Resilience and Compliance
nnThe MOP-AD-NM-MF is built to withstand challenging environments. Its IP67 waterproof rating guarantees protection against dust immersion and temporary water submersion, making it suitable for outdoor installations. The operating temperature range of -40°C to +85°C allows it to function reliably in extreme climates. Additionally, the connector complies with the 2011/65/EU RoHS directive, confirming that it is free from hazardous substances such as lead and mercury. This compliance not only supports environmental sustainability but also aligns with global regulatory standards for electronic components.nn
Applications and Integration
nnGiven its specifications, the MOP-AD-NM-MF is ideal for use in wireless communication systems, including 4G and 5G networks, where low signal loss and high reliability are essential. It also performs well in broadcast equipment, RF test setups, and satellite communication systems. The straight mounting angle simplifies integration into panel or chassis designs, while the threaded coupling ensures secure connections that resist vibrations and accidental disconnections. By choosing this connector, engineers can achieve consistent performance with minimal maintenance requirements.nn
Conclusion
nnThe MOP-AD-NM-MF connector exemplifies a thoughtful design that balances electrical precision with mechanical robustness. From its silver-plated inner contact to its IP67-rated housing, every aspect is engineered to support optimal signal transmission in challenging conditions. The low VSWR and insertion loss, combined with high inter-modulation suppression, make it a reliable component for critical RF applications. Whether you are upgrading an existing network or developing a new system, this connector provides the performance and durability needed to maintain signal integrity over time. With its compliance to RoHS standards and wide temperature tolerance, the MOP-AD-NM-MF is a future-proof choice for professionals who demand excellence in every connection.
