Product Overview
n

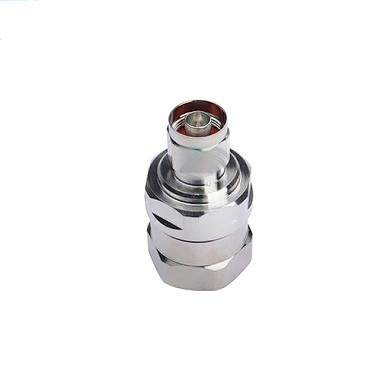

The MOP-CN-NM-CF78 is a high-performance N-type straight male connector meticulously engineered for 7/8 flexible RF cables. Designed for demanding telecommunications and data transmission applications, this connector ensures robust signal integrity and reliability across a broad frequency spectrum. Its precision construction and durable materials make it a superior choice for systems requiring minimal signal loss and excellent passive intermodulation (PIM) performance.
nn
Key Features and Benefits
n
This connector delivers outstanding electrical performance and mechanical resilience. With a frequency range extending from DC to 6 GHz, it supports a wide array of modern communication standards. The use of high-quality materials like silver-plated brass and PTFE insulation guarantees consistent impedance, low insertion loss, and superior environmental protection. The IP68 sealing class ensures reliable operation in harsh outdoor conditions, making it ideal for base stations, antennas, and other critical infrastructure.
nn
Technical Specifications
n
The following table details the complete technical specifications for the MOP-CN-NM-CF78 connector, covering materials, electrical characteristics, and environmental parameters.
nn
Material and Plating Details
n
| Component | Material | Plating |
|---|---|---|
| Inner Conductor Pin | Brass | Silver |
| Inner Conductor Socket | Tin-bronze | Silver |
| Body & Outer Conductor | Brass | Trimetal |
| Insulator | PTFE | — |
| Gasket | Silicon Rubber | — |
| Nut | Brass | Nickel |
nn
Electrical Characteristics
n
| Characteristic | Value |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC ~ 6 GHz |
| Insulation Resistance | ≥ 10,000 MΩ |
| Center Contact Resistance | ≤ 1.5 MΩ |
| Outer Contact Resistance | ≤ 1.5 MΩ |
| Dielectric Strength | 2,500 V rms |
| Working Voltage | 1,400 V rms |
| Insertion Loss | ≤ 0.10 dB |
| VSWR | ≤ 1.10 |
| PIM (2 x 20 W) | ≤ -160 dBc |
nn
Environmental and Mechanical Specifications
n
| Parameter | Specification |
|---|---|
| Durability (Matings) | ≥ 500 cycles |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Test Condition B |
| Vibration Test | MIL-STD-202, Method 204, Condition B |
| Temperature Range | -65 ~ +165 °C |
| RoHS Compliance | Yes |
| Sealing Class | IP68 24HR 1M at 20 °C |
nn
Conclusion
n
The MOP-CN-NM-CF78 connector exemplifies reliability and performance in the field of RF connectivity. Its robust construction, compliance with military-grade testing standards, and exceptional electrical parameters make it a top-tier component for professional communication systems. By integrating high-quality materials and rigorous engineering, this connector ensures long-term stability and minimal signal degradation. For professionals seeking a dependable N-type straight male connector, the MOP-CN-NM-CF78 provides a proven solution that meets the stringent demands of modern wireless infrastructure.
