Revolutionizing RF Performance: The 500W C-Band Power Amplifier for Advanced Radar Systems
nnIn the demanding world of high-frequency RF engineering, few components are as critical as a reliable, high-gain power amplifier. The 6–8GHz C-band Power Amplifier stands out as a premier RF device, delivering a robust 500W output that sets a new standard for power and precision. This article explores the exceptional capabilities of this 50 dB gain RF amplifier, designed to meet the rigorous needs of scientific research, military applications, and industrial systems. From its pulse flexibility to its robust protection circuits, this amplifier ensures stable signal transmission and enhanced radar detection accuracy, making it an indispensable tool for professionals seeking uncompromising performance.nn
Unmatched Specifications and Technical Prowess
nnAt the heart of this device lies a carefully engineered design that operates with pinpoint accuracy. The amplifier’s operating frequency precisely covers the 7020–7380MHz range, ensuring compatibility with C-band radar and communication systems. Under standard 25°C test conditions, it exhibits a remarkable power gain of ≥50dB, solidifying its identity as a true 50 dB gain RF amplifier. The output power reaches ≥57dBm, providing the raw power necessary for long-range signal transmission and reception. The following table details the core technical parameters that define this amplifier’s performance:nn

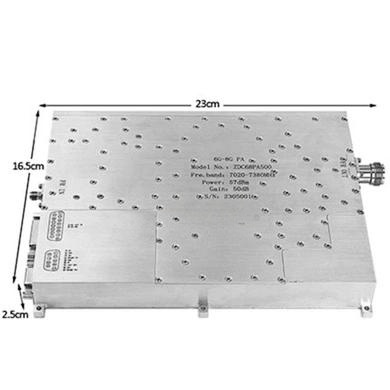

| Parameter | Specification |
|---|---|
| Working Frequency | 7020–7380 MHz |
| Power Gain | ≥50 dB (25°C Test) |
| Output Power | ≥57 dBm (25°C Test) |
| Pulse Duty Cycle | 20% |
| Pulse Width | 200 µs, adjustable via host computer |
| Communication Protocol | RS422 Serial |
| Protection Features | Power detection, temperature detection, current detection, open circuit protection |
| Power Supply | DC +40V |
| Interfaces | Total 4: 2 RF interfaces (internal DC isolation), 2 power and control interfaces |
| Dimensions | 200 mm × 150 mm × 25 mm |
| Bottom Surface Roughness | < 3.2 µm |
| Mounting Surface Flatness | < 0.15 mm |
| Labeling Method | Laser Inscription |
nn
Advanced Pulse Functionality and Signal Flexibility
nnOne of the standout features of this C-band power amplifier is its sophisticated pulse capability. With a duty cycle of 20% and a pulse width of 200 µs, the device is optimized for pulsed radar operations. However, the true advantage lies in its adaptability: the pulse format can be flexibly adjusted through the host computer, allowing engineers to customize pulse parameters for different application scenarios. Whether used for target detection, weather radar, or communication systems, this adaptability ensures optimal performance in diverse environments, reducing the need for multiple amplifier units.nn
Robust Design for Harsh Conditions
nnReliability is paramount in field-critical applications, and this amplifier is built to withstand challenging conditions. Its rugged construction enables stable operation across an ambient temperature range of -10°C ±2°C to +50°C ±2°C, with a storage temperature range of -20°C to +60°C. The bottom heat dissipation surface, combined with cold plate installation, ensures efficient thermal management, preventing overheating during sustained high-power operation. Additionally, the module features a built-in power, temperature, and current detection system, along with an open circuit protection circuit, to safeguard the amplifier and connected equipment from damage. The unit communicates via RS422 serial protocol, allowing for precise monitoring and control.nn
Integration and Installation Guidelines
nnTo maximize performance, proper installation is essential. The amplifier must be assembled on a cold plate for efficient heat dissipation, with its bottom surface serving as the primary heat conduction interface. The 4 total interfaces—including 2 RF interfaces with internal DC isolation and 2 power/control interfaces—simplify connectivity. The product dimensions of 200×150×25mm, along with strict mounting surface flatness requirements (< 0.15 mm), ensure a snug fit in radar system enclosures. For transportation, the device must be packed in an anti-vibration box and shipped via road or rail, with temperature and humidity limitations strictly adhered to: storage between -20°C and +60°C, relative humidity not exceeding 90% during transport, and no more than 80% in storage, in a non-corrosive, non-flammable environment.nn
Versatile Applications and Uncompromising Quality
nnAs a powerful RF amplifier with an integrated signal source, this device is the ideal choice for radar system power amplifiers. It provides stable, high-gain power support that enhances radar detection accuracy and extends operational range, making it invaluable for military air defense, civilian air traffic control, and industrial sensing systems. Beyond radar, it excels in RF testing, satellite communications, and research laboratories where precise, high-power C-band signals are required.nn
Conclusion: Elevate Your RF Systems with Precision Engineering
nnThe 6–8GHz C-band power amplifier represents the pinnacle of 500W RF amplification technology. By combining a 50 dB gain RF amplifier with pulse flexibility, robust protection circuits, and a thermal management system, it delivers consistent performance in the most demanding environments. Whether you are upgrading a radar system or developing new RF technologies, this amplifier offers the reliability and power you need to achieve superior results. Trust in its laser-inscribed labeling, precise RS422 control, and rugged design to excel in scientific, military, or industrial fields. Choose a 50 dB gain RF amplifier that guarantees stable signal transmission and long-term durability—your RF systems deserve nothing less.
