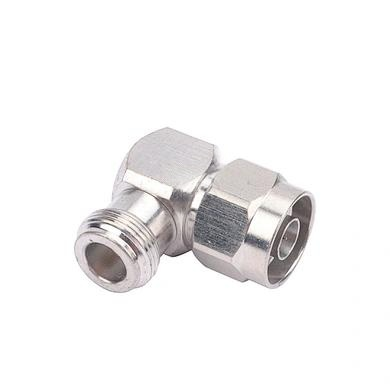

Optimizing RF Connections with the Right Angle N-Male to N-Female Adapter
nnIn modern RF communication systems, signal integrity is paramount. Whether you are deploying a 5G base station, maintaining outdoor radio equipment, or designing an industrial network, every connection point matters. The right angle RF adapter, specifically the Model MOP-AD-NM/NFR, provides a robust solution for high-frequency signal interconnection, especially in space-constrained environments. By converting an N-Male interface to an N-Female interface at a 90-degree angle, this adapter saves valuable real estate while maintaining exceptional electrical performance, making it an indispensable component for engineers and installers.nn
Why the Right Angle RF Adapter Matters in Modern Systems
nnTraditional straight adapters often force cables into tight bends, which can degrade signal quality over time. A right angle design alleviates this stress by allowing for a natural, low-profile connection. This is particularly critical in 5G infrastructure, where multiple antennas and radios are packed into limited spaces. The adapter not only facilitates easier installation but also reduces the risk of micro-fractures in cables and connectors, ensuring long-term reliability. Its robust construction and wideband capabilities make it a versatile choice for various applications, from base stations to test equipment.nn
Unmatched Electrical Performance for High-Frequency Signals
nnWhen dealing with frequencies up to 3GHz, every decibel of loss counts. This adapter excels by offering a voltage standing wave ratio (VSWR) of less than 1.12, which indicates minimal signal reflection. With an insertion loss of just 0.10dB, it ensures that virtually all the transmitted power reaches its destination. For systems requiring extremely low interference, the third-order intermodulation (PIM) performance is critical. Tested at ≤ -150dBc @ 2×20W, this adapter significantly reduces passive intermodulation, a common source of interference in multi-carrier systems. These specifications guarantee that your high-frequency signals remain clean and strong.nn
Durable Materials Built for Harsh Environments
nnThe reliability of an RF connection depends heavily on the materials used. This adapter features a silver-plated brass alloy inner contact, which offers excellent conductivity and corrosion resistance. The outer contact uses tri-alloy plated brass, further enhancing durability against oxidation and mechanical wear. The insulator is made from PTFE (polytetrafluoroethylene), a material known for its superb electrical insulation and stability across a wide temperature range. These materials work together to provide consistent performance.nn
Technical Specifications and Environmental Resilience
nnTo understand why this adapter is suitable for demanding applications, a clear look at its technical parameters is essential. The following table details the key specifications that define its performance and durability.nn| Parameter | Value/Description |n|——————————-|——————————————————-|n| Model | MOP-AD-NM/NFR |n| Connector Type | N-Male to N-Female Right Angle |n| Characteristic Impedance | 50Ω |n| Frequency Range | DC to 3 GHz |n| Standard Compliance | IEC 60169-16 |n| Voltage Standing Wave Ratio | ≤ 1.12 |n| Insertion Loss | ≤ 0.10 dB |n| 3rd Order Intermodulation | ≤ -150 dBc @ 2×20W |n| Insulation Resistance | ≥ 5000 MΩ·km |n| Dielectric Withstand Voltage | ≥ 2500 V RMS |n| Inner Contact Material | Silver-plated brass alloy |n| Outer Contact Material | Tri-alloy plated brass alloy |n| Insulator Material | PTFE |n| Ingress Protection (IP) Rating| IP67 (dust-tight and water-resistant) |n| Operating Temperature Range | -40°C to +85°C |n| RoHS Compliance | Yes |nn
Waterproofing and Temperature Tolerance
nnOutdoor installations face rain, dust, and extreme temperatures. The IP67 rating guarantees that this adapter is completely protected against dust ingress and can withstand temporary immersion in water. This is essential for 5G base stations mounted on towers or rooftops. Furthermore, the wide operating temperature range from -40°C to +85°C ensures functionality in arctic cold or desert heat, making it a reliable choice for global deployments.nn
Practical Applications for the Right Angle RF Adapter
nnThe unique combination of a right angle form factor with high-performance specifications opens up numerous use cases. Below are the primary scenarios where this adapter proves invaluable.nn
5G Base Stations and Antenna Systems
nnModern 5G systems require dense antenna arrays. The right angle adapter allows for neat cable routing between remote radio units (RRUs) and antennas, reducing clutter and improving airflow. Its low PIM performance is crucial for maintaining the high signal-to-noise ratios needed for massive MIMO (Multiple Input Multiple Output) technology.nn
Outdoor RF Equipment and Industrial Communication
nnFor outdoor routers, repeaters, and industrial control systems, space is often at a premium. This adapter enables connections inside weatherproof enclosures that might not accommodate a straight adapter. Its corrosion-resistant materials ensure a long service life in factories, power plants, and transportation infrastructure.nn
Conclusion: A Vital Component for Reliable Signal Integrity
nnThe Right Angle RF Adapter (Model MOP-AD-NM/NFR) is more than just a connector; it is an engineered solution for modern communication challenges. By combining a 50Ω impedance design with superior electrical parameters like low VSWR and PIM, it ensures your signals are transmitted with minimal loss and interference. Its rugged construction, featuring silver-plated brass and PTFE insulation, along with an IP67 rating, guarantees performance in the toughest environments. Whether you are optimizing a 5G network or building industrial communication systems, this right angle rf adapter provides the flexibility and reliability needed for successful deployments. Choosing the right components is the first step toward a robust and future-proof communication system.
