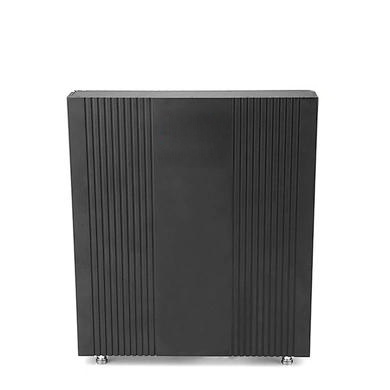

China Moneypro 900&2100 Dual band PICO Repeater 200mW for signal coverage

Understanding the 900/2100 Dual Band Pico Selective Repeater

nn

In the ever-evolving landscape of telecommunications, signal repeaters play a crucial role in bridging coverage gaps and ensuring seamless connectivity. The 900/2100 dual band pico selective repeater offers a robust solution for enhancing cellular signals in environments where direct reception is weak or obstructed. This compact device is designed to boost both 900 MHz and 2100 MHz frequency bands, making it an ideal choice for small to medium-sized indoor spaces such as offices, retail stores, and residential complexes. Its pico form factor combines efficiency with high performance, allowing users to experience reliable voice and data services without the need for extensive infrastructure modifications. By amplifying signals from nearby base stations, this repeater effectively extends coverage, reduces dropped calls, and improves data throughput, all while maintaining compliance with stringent industry standards. Below, we explore the full spectrum of its capabilities, from power supply specifications to detailed electronic performance metrics.

nn

Power Supply and Mechanical Specifications

nn

Power and Environmental Requirements

n

The repeater operates on a universal AC input of 100~240V at 50/60Hz, ensuring compatibility with global power grids. With a maximum power consumption of just ≤35W, it delivers high efficiency while minimizing energy costs. The device is engineered to withstand harsh environments, functioning reliably within a temperature range of -25 to +55°C and at humidity levels up to ≤95%. Its environmental class rating of IP40 provides protection against solid objects larger than 1mm, making it suitable for indoor installations where dust ingress is a concern. The RF connector is a robust MS_4.3-10-Female type with a 50 ohm impedance, ensuring low signal loss and secure connections. The mean time between failures (MTBF) is calculated at ≥50,000 hours, underscoring its long-term durability. For local monitoring, the repeater features manual control interfaces and LED indicators that display real-time operating status. The product dimensions are 26822050mm, with a weight of ≤4.5kg, allowing for easy mounting on walls or ceilings. This repeater is specifically optimized for the 900&2100 dual band pico selective repeater 200mW model, delivering targeted amplification for these frequency ranges.

nn

Electronic Specifications Table

nn

The following table summarizes all critical electronic performance parameters for both the downlink and uplink paths of the 900/2100 dual band pico selective repeater, ensuring clarity and precision in technical communication.

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Performance and Compliance Highlights

nn

Gain Control and Signal Integrity

n

The 900/2100 dual band pico selective repeater offers precise gain adjustment capability with a range of ≥25 dB in 1 dB steps, ensuring fine-tuned signal amplification tailored to specific environments. The gain adjustable error remains within tight tolerances—≤1 dB for adjustments from 0 to 20 dB, and ≤1.5 dB for adjustments beyond 21 dB—guaranteeing consistent performance. The Automatic Level Control (ALC) circuit maintains output stability even under varying input conditions: when adding up to 10 dB at maximum output level, the output variation is ≤±2 dB; for additions exceeding 10 dB, the variation remains ≤±2 dB or the circuit automatically shuts off to prevent distortion. This feature is critical for protecting downstream equipment and ensuring signal purity.

nn

Noise and Linearity Performance

n

With a noise figure of ≤6 dB at maximum gain, the repeater minimizes signal degradation, preserving the original signal-to-noise ratio. The low time delay of ≤5.0 μs ensures minimal latency, essential for real-time applications like voice calls and video streaming. The VSWR of ≤2.0 indicates excellent impedance matching, reducing reflections and power loss. Ripple within the band is kept under ≤4 dB, flattening the frequency response for uniform amplification across the operational spectrum. Out-of-band restraint is robust: from 2.5 MHz to 5 MHz offset, attenuation is at least 40 dB, and beyond 5 MHz, it rises to ≥60 dB, effectively suppressing interference from adjacent channels.

nn

Regulatory Compliance and Reliability

n

Every aspect of the 900/2100 dual band pico selective repeater complies with rigorous 3GPP standards. Spurious emission, spectrum emission mask, and ACRR all meet the requirements of 3GPP TS 36.106 and TS 36.143, guaranteeing that the repeater operates without causing harmful interference to other wireless services. Frequency stability is exceptional at ≤0.05 ppm, ensuring accurate frequency alignment even in varying environmental conditions. The EVM (Error Vector Magnitude) is capped at ≤8%, preserving modulation quality and data integrity for high-speed LTE and 5G communications. These specifications collectively position this pico repeater as a reliable, future-proof solution for enhancing cellular coverage in demanding environments.

nn

Conclusion

n

The 900/2100 dual band pico selective repeater combines compact design with formidable technical specifications, making it a versatile tool for improving signal strength across two critical frequency bands. From its energy-efficient power supply and rugged mechanical build to its precise electronic controls and full 3GPP compliance, this device offers a comprehensive solution for modern connectivity challenges. Whether deployed in a busy office or a remote indoor location, it ensures clear calls, fast data, and consistent performance. By leveraging the detailed specifications outlined above, network engineers and installers can confidently integrate this repeater into their systems, knowing it meets the highest standards of reliability and efficiency. In an era where seamless communication is paramount, this 900/2100 dual band pico selective repeater stands out as an indispensable asset for network optimization.
