Maximizing Performance with the 50W High-Power RF Load

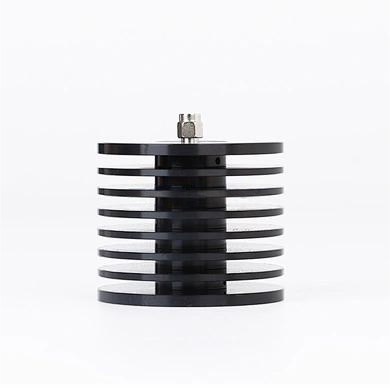

In the demanding world of radio frequency (RF) engineering, precision and reliability are non-negotiable. Whether you are testing amplifiers, terminating transmission lines, or designing high-power systems, the need for a robust component that can handle extreme conditions while maintaining signal integrity is paramount. The MOP-DL-18GHz-50W-SMAM represents a critical tool in such environments, offering exceptional power handling from DC through 18 GHz. This article explores its specifications, applications, and the key considerations for integrating a high-power RF load into your setup, with a special focus on the durability and performance required for modern communications and testing scenarios.
Why a Dedicated RF Load Matters
A high-power RF load, often called a dummy load, is more than just a terminator. It absorbs transmitted energy, preventing signal reflection that could damage sensitive equipment. Without a properly rated load, amplifiers can oscillate or fail, and measurement accuracy suffers. The MOP-DL-18GHz-50W-SMAM is designed to provide a stable, low-VSWR termination across a wide frequency range, ensuring that your system operates safely and consistently. This makes it an indispensable component for lab testing, field maintenance, and system integration.
Technical Specifications and Performance Parameters
To fully understand the capabilities of this RF load, we must examine its core technical data. Every parameter, from impedance to frequency response, directly impacts its suitability for your application. Below is a comprehensive breakdown of the specifications.
| Parameter | Specification |
|---|---|
| Model No. | MOP-DL-18GHz-50W-SMAM |
| Power Handling | 50W (Continuous) |
| Frequency Range | DC – 18 GHz |
| Impedance | 50 Ω |
| VSWR (Voltage Standing Wave Ratio) | ≤ 1.35:1 (Typical) |
| Connector Types Available | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other custom types upon request |
| Operating Temperature Range | -55°C to +125°C |
| Humidity Tolerance | ≤ 95% (Non-condensing) |
Interpreting the Data for Real-World Use
The table above reveals a component built for extremes. The 50W power handling is suitable for moderate to high-power transmitters and test setups, while the DC-18 GHz frequency range covers everything from legacy HF/VHF systems through modern microwave communications, including Wi-Fi, radar, and satellite bands. The ≤1.35:1 VSWR ensures excellent impedance matching, minimizing energy loss and heat generation. Additionally, the broad operating temperature range (-55°C to +125°C) and high humidity tolerance (≤95%) ensure reliable performance in harsh environments, from desert field tests to cold storage facilities.
Key Applications for the MOP-DL-18GHz-50W-SMAM
This RF load is not a one-size-fits-all component; its versatility makes it a go-to choice across several high-stakes fields. Here are the primary use cases.
Laboratory and Production Testing
During amplifier burn-in or production line verification, engineers need a stable load that can absorb 50W continuously without drifting. The load’s low VSWR ensures that measured output power and gain figures are accurate, not skewed by reflections. Its multiple connector options (N, DIN, BNC, etc.) allow seamless integration into existing test fixtures, saving time and reducing adapter losses.
System Integration and Field Deployment
In base stations, radar systems, or satellite ground terminals, unused ports on couplers or splitters must be terminated to prevent interference. The rugged design and wide temperature tolerance of this RF load make it ideal for outdoor cabinets or unheated shelters. The capability to handle up to 95% humidity means it can be deployed in coastal or tropical environments without corrosion concerns, provided proper connector sealing.
Maintenance and Troubleshooting
Field technicians often use RF loads to test transmitters without transmitting energy through an antenna. The MOP-DL-18GHz-50W-SMAM provides a portable, reliable solution for on-site diagnostics. Its compact design (typical with N-type connectors) allows it to be directly connected to RF output ports, enabling safe power measurements and system checks.
Installation and Best Practices
To maximize the lifespan and performance of your RF load, follow these guidelines.
Connector Selection and Torque
Choosing the right connector is critical. For DC-18 GHz operation, N-type connectors offer excellent repeatability and low loss. DIN connectors provide even higher power handling in some configurations, while BNC is limited to lower frequencies (typically under 4 GHz). When attaching the load, use a torque wrench to the manufacturer’s specification (usually 5-10 in-lbs for N type), preventing both mechanical damage and VSWR degradation.
Thermal Management
A 50W load can generate significant heat during continuous operation. Always ensure adequate airflow around the component. In near-100% duty cycles, mounting it on a heatsink or using a forced air fan may be necessary. The -55°C to +125°C rating indicates excellent thermal design, but heat buildup still reduces component life.
Conclusion: Choosing the Right RF Load
The MOP-DL-18GHz-50W-SMAM stands out as a versatile and reliable 50W RF load, engineered for the most demanding conditions. Its superior VSWR, wide frequency coverage, and robust environmental tolerances make it an optimal choice for engineers and technicians who require consistent performance across DC to 18 GHz. By understanding its specifications—such as impedance, power rating, and connector options—you can ensure your termination needs are met with precision and safety. Whether you are setting up a lab, maintaining a base station, or integrating a complex radar system, investing in a high-quality RF load like this one is essential for preserving equipment integrity and ensuring accurate measurements. Its ability to handle extreme temperatures and high humidity without compromise reinforces its position as a trusted tool in high-stakes RF environments.
