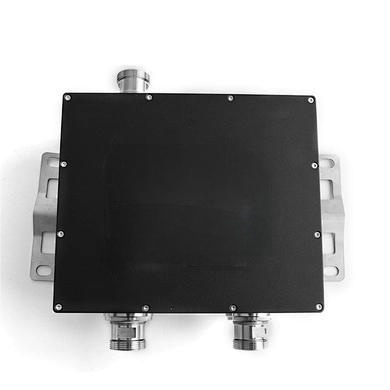

Revolutionizing Signal Performance: The Low Loss 4G 3dB Hybrid Coupler
nnIn the demanding world of 4G communication network construction and optimization, the quest for efficient and stable signal processing equipment is relentless. The Low Loss 4G 3dB Hybrid Coupler for RF Passive 2 In 1 Out 690-2700MHz Wide Frequency DIN Female stands as a beacon of engineering excellence in this space. This device is not just a component; it is a high-performance artifact designed to tackle the most challenging signal distribution tasks. With a remarkable ability to combine two input signals into one output with minimal degradation, this hybrid coupler ensures that every watt of power is utilized effectively. For network engineers and system integrators, understanding the nuanced capabilities of this coupler is key to unlocking superior network performance and reliability. Let’s delve into why this particular model is becoming the go-to choice for professionals who demand the best from their 4G infrastructure.nn
Exceptional Technical Specifications
nnAt the heart of its design, the Low Loss 4G 3dB Hybrid Coupler operates across a staggering frequency range of 690-2700MHz, ensuring full compatibility with all 4G LTE bands and even extending into 5G sub-6 GHz spectrum. This wide bandwidth eliminates the need for multiple specialized components, simplifying inventory and deployment. Its low insertion loss, typically ≤3.6dB, guarantees that signal strength is preserved, which is critical for maintaining high data throughput and call quality. Furthermore, high isolation of ≥23dB ensures that signals from different ports do not interfere, a vital feature in multi-carrier environments where interference can lead to dropped calls and reduced data speeds. The voltage standing wave ratio (VSWR) of ≤1.3 indicates excellent impedance matching, minimizing signal reflections that can cause power loss and equipment stress. These technical parameters collectively ensure that the coupler contributes to a cleaner, more robust signal path.nn
Technical Data: Low Loss 4G 3dB Hybrid Coupler
nn
| Parameter | Specification |
|---|---|
| Name | 2×1 Hybrid Coupler |
| Frequency Range (MHz) | 690-2700 |
| Insertion Loss (dB) | ≤ 3.6 |
| Isolation (dB) | ≥ 23 |
| Return Loss (dB) | ≥ 18 |
| VSWR | ≤ 1.3 |
| Intermodulation Products (dBc) | ≤ -160 (with 2 x 43dBm) |
| Maximum Input Power (W) | 500 |
| Operating Temperature (°C) | -25 to +70 |
| Relative Humidity (%) | 0-95 |
| Impedance (Ω) | 50 |
| Size (mm) | 226 x 214 x 61 |
| Weight (g) | 1750 |
| Connector Type | N Female / 4.3-10 Female / DIN Female |
| Ingress Protection | IP67 |
| Color | Gray / Black |
nn
Robust Design for Demanding Environments
nnThe Low Loss 4G 3dB Hybrid Coupler is built to thrive in the harshest conditions, a necessity for outdoor base stations and indoor distribution systems alike. With an IP67 rating, it is fully protected against dust ingress and can withstand temporary immersion in water, making it ideal for rooftop installations, tunnels, or coastal areas. Its operating temperature range from -25℃ to +70℃ ensures reliable performance across extreme weather. The rugged aluminum housing not only dissipates heat effectively but also resists corrosion, protecting the internal components from moisture and environmental damage. This durability translates into lower maintenance costs and a longer operational lifespan, providing a high return on investment for network operators.nn
Wide Applications Across 4G Networks
nnThis coupler is remarkably versatile, serving critical roles in a multitude of 4G network scenarios. It is an essential tool for optimizing base station coverage and capacity. When upgrading a dense urban cell site, the coupler can combine signals from two remote radio units into a single antenna feed, reducing antenna count and simplifying site management. In indoor distribution systems (DAS), it helps merge signals from multiple carriers or sectors to ensure uniform coverage throughout a building. System integrators also use it in signal boosting applications to combine donor and local signals without distortion. Whether you are addressing signal blind spots in remote areas or ensuring seamless connectivity in a stadium, the versatility of this Low Loss 4G 3dB Hybrid Coupler makes it an indispensable asset.nn
Conclusion: The Optimal Choice for 4G Optimization
nnSelecting the right RF components is paramount to achieving peak network performance. The Low Loss 4G 3dB Hybrid Coupler for RF Passive 2 In 1 Out 690-2700MHz Wide Frequency DIN Female offers an unmatched combination of low signal loss, high isolation, and rugged durability. It simplifies complex installations while enhancing signal integrity, directly contributing to better user experiences and network efficiency. For any professional involved in 4G network upgrades, maintenance, or new deployments, this coupler represents a smart, future-proof investment. Embrace the power of superior engineering and let this device become the cornerstone of your signal optimization strategy, ensuring that your 4G network operates at its absolute best.
