Enhance Your RF Testing with the Precision SMA RF Attenuator
When it comes to managing signal levels in demanding RF environments, precision and reliability are non-negotiable. The SMA RF attenuator is engineered to deliver consistent performance across a broad spectrum of applications, from laboratory calibration to field-deployed communication infrastructure. This compact yet robust component is designed to meet the rigorous demands of modern wireless systems, ensuring that your signal path remains clean, stable, and free from harmful interference.

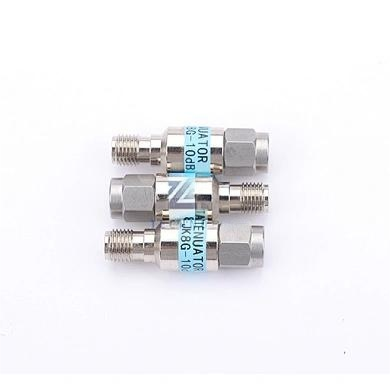

The attenuator features a standard SMA male-to-female interface, providing seamless compatibility with a wide array of coaxial cables, test equipment, and RF modules. With a characteristic impedance of 50Ω, it is perfectly suited for most RF test and communication systems. Its frequency range extends from DC all the way up to 8000MHz, making it a versatile tool for both legacy and next-generation technologies, including 5G, Wi-Fi 6E, and satellite communications.
Key Attributes of This SMA RF Attenuator
This device offers a wide and adjustable attenuation range, from 1dB to 30dB, with a tightly controlled tolerance of ±0.3 dB to ±1.0 dB. Such precision allows engineers to fine-tune signal levels for optimal receiver sensitivity and system linearity. The attenuator excels in maintaining low signal distortion, thanks to its excellent voltage standing wave ratio (VSWR) of ≤1.25 and a return loss of ≥19dB. These specifications ensure that the impedance mismatch is minimized, reducing reflections and preserving signal integrity.
Intermodulation performance is critical in multi-carrier and high-power environments. This SMA RF attenuator delivers intermodulation products of ≤-120 dBc when tested with 2 × 43 dBm carriers, indicating extremely low distortion generation. The maximum input power of 2 watts is sufficient for most lab and base station test setups, providing a safety margin for typical RF signals.
Environmental Resilience and Build Quality
Ruggedness is built into every aspect of this component. It operates reliably over a wide temperature range from -40°C to +100°C and can withstand relative humidity levels between 5% and 95%. This makes it suitable for outdoor installations, industrial environments, and temperature-controlled labs alike. The IP65 ingress protection rating ensures complete protection against dust ingress and low-pressure water jets, adding to its longevity in harsh conditions.
Physical dimensions are compact at just 26mm in length and 9mm in diameter, weighing only 18 grams. This small footprint makes it easy to integrate into dense RF assemblies, patch panels, or portable test kits. The attenuator is available in either a sleek black or a classic silver finish, allowing for visual consistency with existing equipment.
Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Frequency Range | DC – 8000 MHz |
| Attenuation Values | 1 – 30 dB |
| Attenuation Tolerance | ±0.3 to ±1.0 dB |
| Return Loss | ≥19 dB |
| VSWR | ≤1.25 |
| Intermodulation Products | ≤ -120 dBc @ 2×43 dBm |
| Maximum Input Power | 2 W |
| Impedance | 50 Ω |
| Operating Temperature | -40°C to +100°C |
| Relative Humidity | 5% – 95% |
| Connector Type | SMA Male to SMA Female |
| Dimensions | 26 mm × 9 mm |
| Weight | 18 g |
| Ingress Protection | IP65 |
| Available Colors | Black or Silver |
Versatile Applications Across the RF Spectrum
The adaptability of this SMA RF attenuator makes it indispensable for a variety of use cases. In laboratory testing, it is used to calibrate signal generators, simulate path loss, or protect sensitive receivers from overload. In base station equipment, it helps balance signal levels across multiple channels, reducing the risk of intermodulation distortion. RF instruments such as spectrum analyzers, network analyzers, and power meters benefit from the precision and repeatability offered by this attenuator.
Furthermore, its IP65 rating and wide temperature range allow for deployment in outdoor antenna systems, remote radio heads, and satellite ground stations. Whether you are prototyping a new circuit or maintaining a live network, this component provides the reliability and performance you need.
Conclusion: A Reliable Choice for Your RF Needs
In summary, the SMA RF attenuator stands out as a high-performance, durable, and versatile solution for signal level adjustment across DC to 8 GHz. Its precise attenuation values, excellent VSWR, low intermodulation distortion, and robust environmental resistance make it a top choice for engineers and technicians. Whether you are working in a research lab, a telecom infrastructure, or a broadcast facility, this attenuator will help you maintain optimal signal quality and system stability. Choose the SMA RF attenuator for your next project and experience the difference that true engineering precision makes.
