Understanding the Interface Model MOP-CN-NMR-CF78: A Comprehensive Technical Overview
nn

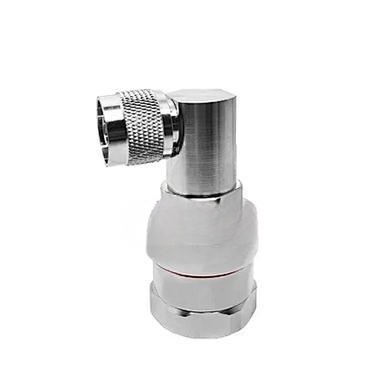

In the rapidly evolving world of RF and microwave connectivity, precision and reliability are non-negotiable. The Interface Model MOP-CN-NMR-CF78 stands out as a robust solution for demanding applications, offering exceptional electrical performance, superior mechanical durability, and reliable environmental resilience. Whether you are designing telecommunications infrastructure, testing equipment, or high-frequency data transmission systems, this connector is engineered to deliver consistent results. Below, we dive deep into every specification and feature that makes this model a top-tier choice for engineers and system integrators alike.
nn
At its core, the MOP-CN-NMR-CF78 is built to maintain signal integrity across a broad frequency spectrum, with impedance stability and low VSWR ensuring minimal signal reflection. This is critical for high-speed data transfers where even slight losses can compromise system performance. Furthermore, the connector’s robust construction—featuring high-grade materials like brass, phosphor bronze, and PTFE—guarantees long-term durability under repeated mating cycles and harsh environmental conditions. Let us break down the technical details that define this exceptional component.
nn
Electrical Characteristics of the Interface Model MOP-CN-NMR-CF78
nn
The electrical performance of any coaxial connector is its most critical attribute. The MOP-CN-NMR-CF78 excels in this regard, providing a 50-ohm impedance—the industry standard for most RF applications. Its frequency range extends from DC to 6 GHz, making it suitable for a wide variety of communication protocols, including 5G, Wi-Fi, and satellite systems. A standout feature is its low VSWR of ≤1.15, which minimizes power loss and ensures near-perfect impedance matching across the entire band. Additionally, the connector boasts a dielectric withstanding voltage of ≥2500V RMS at 50Hz at sea level, providing excellent insulation safety. High insulation resistance of ≥5000MΩ and minimal contact resistance (outer and center contacts both ≤1.0mΩ) further enhance signal purity and energy efficiency. For systems requiring low passive intermodulation (PIM), the PIM3 rating of ≤-155dBc ensures clean performance in multi-carrier environments.
nn
Electrical Specifications Table
nn
| Parameter | Value |
|---|---|
| Impedance | 50 ohm |
| Frequency Range | DC – 6 GHz |
| VSWR (Voltage Standing Wave Ratio) | ≤ 1.15 |
| Dielectric Withstanding Voltage | ≥ 2500 V RMS, 50 Hz, at sea level |
| Insulation Resistance | ≥ 5000 MΩ |
| Contact Resistance (Outer) | ≤ 1.0 mΩ |
| Contact Resistance (Center) | ≤ 1.0 mΩ |
| Passive Intermodulation (PIM3) | ≤ -155 dBc |
nn
Mechanical and Environmental Durability
nn
Beyond electrical prowess, the MOP-CN-NMR-CF78 is built to withstand rigorous physical demands. With a minimum of 500 mating cycles, this connector provides dependable performance over its lifespan, reducing maintenance costs and downtime. The mechanical design leverages precision engineering to ensure consistent contact force and alignment.
nn
Mechanical Specification Table
nn
| Parameter | Value |
|---|---|
| Durability (Mating Cycles) | ≥ 500 |
nn
Material and Plating Construction
nn
Every component of the Interface Model MOP-CN-NMR-CF78 is crafted from high-performance materials selected for conductivity, corrosion resistance, and mechanical strength. The body uses brass with a tri-alloy plating to enhance wear resistance and RF performance. The insulator is made from PTFE (Polytetrafluoroethylene), renowned for its low dielectric loss and high temperature stability. The center conductor employs a combination of phosphor bronze and beryllium bronze, plated with silver to maximize conductivity and reduce signal degradation. Other internal parts, such as locking mechanisms and springs, use brass with nickel plating for additional durability.
nn
Material and Plating Table
nn
| Component | Material | Plating |
|---|---|---|
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center Conductor | Phosphor Bronze + Beryllium Bronze | Silver (Ag) |
| Other Components | Brass | Nickel |
nn
Environmental Operating Conditions
nn
Designed for both indoor and outdoor applications, the MOP-CN-NMR-CF78 operates reliably across a wide temperature range. This flexibility makes it suitable for use in base stations, network switches, and industrial environments where thermal fluctuations are common.
nn
Environmental Specification Table
nn
| Parameter | Value |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
nn
Conclusion: Why the Interface Model MOP-CN-NMR-CF78 Sets the Benchmark
nn
In summary, the Interface Model MOP-CN-NMR-CF78 is more than just a connector—it is a precision-engineered component designed for high-reliability systems. Its combination of low VSWR, excellent PIM performance, robust mechanical life, and carefully chosen materials and platings ensures it meets the stringent needs of modern RF engineering. By integrating this component into your design, you gain a product that not only meets but exceeds industry standards for signal integrity and durability. Whether you are optimizing a base station or developing advanced test equipment, the MOP-CN-NMR-CF78 delivers the performance and longevity your projects demand. Invest in quality connectivity with this exceptional interface model.
