Unlocking Long-Range Connectivity: The WiFi Directional Antenna Outdoor Advantage
n
In the demanding world of outdoor wireless networking, signal strength and reliability often collide with obstacles like distance, interference, and harsh environmental conditions. Standard omni-directional antennas broadcast signals in all directions, which dilutes power and limits range. The WiFi Directional Antenna Outdoor series presents a superior solution, engineered specifically for mission-critical long-range transmission. By focusing radio frequency energy in a precise beam, these antennas dramatically improve transmission efficiency, ensuring stable, high-speed connectivity over vast distances. Whether you are linking campus buildings, securing industrial perimeters, or deploying robust video surveillance, this outdoor antenna series provides the core infrastructure for a dependable wireless backbone.
n

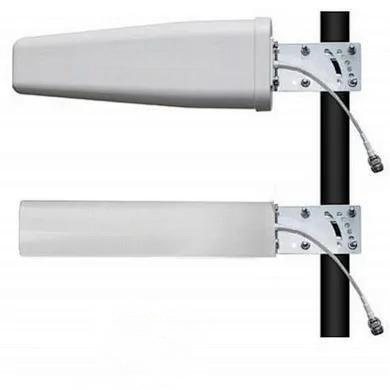

This high-performance series is not a single antenna but a versatile family of models covering multiple frequency bands—from 400-480MHz up to 5100-5900MHz—with adjustable gains ranging from 6dBi to 16dBi. Unlike a standard Omni Directional Outdoor Antenna, which compromises range for 360-degree coverage, this WiFi Directional Antenna Outdoor delivers precise beam focusing. This focus significantly enhances long-distance transmission efficiency while reducing interference from unwanted directions. Built with an aluminum reflector and a durable ABS radome, it withstands extreme temperatures from -40°C to +90°C and wind speeds up to 60m/s. Widely compatible N-type connectors make integration simple, solidifying its role as an ideal choice for stable, long-range wireless networking in diverse professional scenarios.
nn
Key Features of the WiFi Directional Antenna Outdoor Series
n
Multi-Band Coverage and Adjustable Gain
n
The series supports a wide range of frequency bands, including 400-480MHz, 1544-1660MHz, 2400-2500MHz, and 5100-5900MHz, with gains that can be tailored from 6dBi to 16dBi. This flexibility ensures optimal performance across different wireless standards and transmission requirements.
n
Robust Electrical Performance
n
Vertical polarization and low Voltage Standing Wave Ratio (VSWR) are paired with DC grounding for lightning protection. This combination ensures stable, highly anti-interference signals, critical for maintaining uptime in outdoor installations.
n
Durable Mechanical Design
n
The aluminum reflector and ABS radome are engineered to survive extreme environmental conditions—from -40°C to +90°C—and wind speeds reaching 60m/s. This rugged construction guarantees long-term reliability in exposed locations.
nn
Technical Specifications for the WiFi Directional Antenna Outdoor Models
n
All technical parameters and structured data for the models in this series are provided in the table below, organized for clarity and easy reference.
nn
| Parameter | Model MOP-DYA-400-6/8NF | Model MOP-DYA-1600-13NF | Model MOP-DYA-2400-14/15NF | Model MOP-DYA-5800-15/16NF |
|---|---|---|---|---|
| Frequency Range (MHz) | 400-480 | 1544-1660 | 2400-2500 | 5100-5900 |
| Gain (dBi) | 6 / 8 | 13 | 14 / 15 | 15 ± 1 |
| Half-Power Beamwidth (°) | H:45, V:38 | — | — | — |
| Front to Back Ratio (dB) | ≥16 | — | — | ≥15 |
| Polarization | Vertical | Vertical | Vertical | Vertical |
| VSWR | ≤1.8 | ≤1.5 | ≤1.5 | ≤1.5 |
| Maximum Input Power (W) | 100 | 50 | 50 | 50 |
| Impedance (Ω) | 50 | 50 | 50 | 50 |
| Lightning Protection | DC Ground | DC Ground | DC Ground | DC Ground |
| Connector Type | N Female | N Female | N Female | N Female |
| Dimensions (mm) | 400 x 94 x 34 | 400 x 94 x 34 | 400 x 94 x 34 | 400 x 94 x 34 |
| Cable | RG58/U, 300mm | RG58/U, 300mm | RG58/U, 300mm | RG58/U, 300mm |
| Antenna Weight (kg) | 0.7 | — | — | — |
| Rated Wind Velocity (m/s) | 60 | 36.9 | 36.9 | 60 |
| Effective Wind Area (m²) | — | — | ≤0.2 | ≤0.2 |
| Reflector Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Radome Material | ABS | ABS | ABS | ABS |
| Pole Dimension (mm) | Φ50 | Φ50 | Φ50 | — |
| Operation Temperature (°C) | -40 to +50 | -40 to +90 | -40 to +90 | -40 to +90 |
| Mounting Hardware (mm) | φ35 – φ50 | φ35 – φ50 | φ35 – φ50 | φ35 – φ50 |
nn
Why Choose This WiFi Directional Antenna Outdoor for Your Network?
n
Precision and Interference Reduction
n
The directional design concentrates signal energy into a narrow beam, reducing noise from unwanted directions and enhancing signal clarity. This makes it ideal for point-to-point and point-to-multipoint links where consistent performance is essential.
n
Environmental Resilience
n
From scorching heat to freezing cold and high winds, the antenna’s construction ensures reliable operation without degradation. The aluminum reflector and ABS radome are corrosion-resistant and built to last.
n
Seamless Integration
n
Standard N-type female connectors and included RG58/U cable simplify installation with a wide range of outdoor radios, routers, and access points. The mounting hardware accommodates poles from 35mm to 50mm in diameter.
n
For users requiring other customized frequency ranges or gain levels, the manufacturer remains open to inquiries, ensuring that the WiFi Directional Antenna Outdoor series can be tailored to unique project specifications. In conclusion, whether scaling a wireless internet service provider network, bridging campus buildings, or securing industrial assets, this directional antenna series offers the focus, durability, and performance needed to overcome the challenges of long-range outdoor wireless communication.
