Understanding the RG 217/U Coaxial Cable: A Technical Overview
nn
The RG 217/U coaxial cable stands as a robust and reliable solution for high-frequency signal transmission, widely utilized in telecommunications, broadcast systems, and industrial RF applications. This article delves into the intricate specifications of this cable, highlighting its construction, electrical performance, and mechanical resilience. Whether you are an engineer selecting cabling for a critical installation or a technician troubleshooting signal integrity, comprehending the nuances of the RG 217/U is essential for optimal system performance.
nn
Key Construction Features of RG 217/U
nn

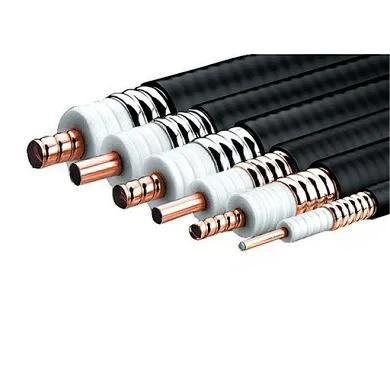

The design of the RG 217/U ensures minimal signal loss and maximum durability. Its layered construction begins with a smooth copper tube inner conductor, which provides excellent conductivity and low resistance. Surrounding this is a dielectric layer of physical foam polyethylene, engineered to maintain consistent impedance and high velocity of propagation. The outer conductor, a corrugated copper tube, offers superior shielding against electromagnetic interference, while the black polyethylene jacket protects against environmental stressors such as moisture and UV radiation. This robust build makes the cable suitable for both indoor and outdoor installations.
nn
To appreciate the full scope of its capabilities, examining the detailed specifications is crucial. Below is a comprehensive breakdown of the dimensional and electrical parameters.
nn
| Parameter | Specification |
|---|---|
| Inner Conductor Material | Smooth Copper Tube |
| Inner Conductor Diameter | 9.0 mm |
| Dielectric Material | Physical Foam Polyethylene |
| Dielectric Diameter | 22.5 mm |
| Outer Conductor Material | Corrugated Copper Tube |
| Outer Conductor Diameter | 24.9 mm |
| Jacket Material | Black PE |
| Jacket Diameter | 27.7 mm |
nn
Electrical Performance of the RG 217/U Cable
nn
The electrical characteristics of the RG 217/U define its suitability for high-power and high-frequency applications. Key metrics such as capacitance, impedance, and peak power rating ensure that the cable can handle demanding transmission requirements without significant degradation. For instance, its 50-ohm impedance aligns with standard RF systems, while a velocity of propagation of 88% indicates efficient signal travel. Additionally, the shielding effectiveness exceeds 120 dB, guaranteeing minimal external interference.
nn
| Parameter | Value |
|---|---|
| Capacitance | 76 pF/M |
| Impedance | 50 Ohm |
| Velocity of Propagation | 88% |
| Peak Power Rating | 91 KW |
| RF Peak Voltage | 3.0 KV |
| Insulation Resistance | >5000 MΩ.km |
| Cut-off Frequency | 5.2 GHz |
| Insulation Voltage | 10 KV |
| Inner Conductor DC Resistance | 1.00 Ω/km |
| Outer Conductor DC Resistance | 1.20 Ω/km |
| Jacket Spark | 8.0 KV |
| Shielding Effectiveness | >120 dB |
nn
VSWR and Return Loss Across Frequencies
nn
The Voltage Standing Wave Ratio (VSWR) is a critical indicator of signal reflection and system efficiency. The RG 217/U maintains excellent VSWR values within the specified frequency ranges, translating into high return loss and minimal signal degradation.
nn
| Frequency Range | VSWR (Max) | Return Loss (Min) |
|---|---|---|
| 0.005 – 3 GHz | 1.15 | 23 dB |
| 0.8 – 1.0 GHz | 1.10 | 26 dB |
| 1.7 – 2.0 GHz | 1.10 | 26 dB |
| 2.0 – 2.4 GHz | 1.10 | 26 dB |
nn
Mechanical and Environmental Durability of RG 217/U
nn
Beyond electrical performance, the RG 217/U is designed to withstand harsh physical and environmental conditions. Its mechanical characteristics, such as bending radius and tensile strength, ensure reliable installation even in tight spaces. The cable can endure repeated bending, mobile application stress, and significant pulling forces without compromising signal integrity. Furthermore, its wide operating temperature range makes it versatile for diverse climates.
nn
| Parameter | Value |
|---|---|
| Min. Single Bending Radius | 90 mm |
| Min. Repeated Bending Radius | 250 mm |
| No. of Bends | 15 |
| Mobile Apply | 500 mm |
| Bending Moment | 16.3 N.m |
| Tensile Strength | 147 kg |
| Storage Temperature | -55 to +85 °C |
| Installation Temperature | -40 to +60 °C |
| Operating Temperature | -55 to +85 °C |
nn
Attenuation and Power Handling Capabilities
nn
One of the most vital aspects of the RG 217/U is its attenuation and average power handling at various frequencies. These parameters directly influence the cable’s efficiency in transmitting signals over long distances. The following table provides a detailed frequency-dependent breakdown, assuming a VSWR of 1.0 and a cable temperature of 20°C, with average power ratings based on an ambient temperature of 40°C.
nn
| Frequency (MHz) | Attenuation (dB/100m) | Average Power (KW) |
|---|---|---|
| 100 | 1.17 | 8.62 |
| 200 | 1.69 | 5.99 |
| 450 | 2.60 | 3.88 |
| 800 | 3.56 | 2.83 |
| 900 | 3.80 | 2.65 |
| 1000 | 4.03 | 2.50 |
| 1500 | 5.08 | 1.99 |
| 1800 | 5.61 | 1.79 |
| 2000 | 6.05 | 1.68 |
| 2200 | 6.40 | 1.59 |
| 2400 | 6.75 | 1.54 |
| 2500 | 6.90 | 1.50 |
| 3000 | 7.60 | 1.33 |
nn
Conclusion: The RG 217/U as a High-Performance Choice
nn
In summary, the RG 217/U coaxial cable delivers exceptional performance across electrical, mechanical, and environmental dimensions. Its robust construction and precise specifications make it an ideal choice for high-frequency systems requiring low attenuation and high power handling. By adhering to strict standards in impedance, shielding, and durability, this cable ensures reliable signal integrity in even the most demanding applications. For professionals seeking a dependable solution, the RG 217/U remains a top-tier option in the world of RF cabling.
