Advanced Mobile Mesh Networking Module
Engineered for resilient, high-performance connectivity in dynamic environments.
Core Capabilities:
- Self-Healing Mesh Network: Intelligently reroutes data for uninterrupted mobile operations
- High-Speed Data Transfer: 30 Mbps combined uplink/downlink throughput
- Multi-Frequency Operation: Software-selectable tri-band (800MHz/1.4GHz/2.4GHz)
- Extended UAV Range: 10 km line-of-sight air-to-ground capability
- Scalable Connectivity: Supports up to 16 nodes per frequency in mesh configuration
Flexible Deployment Options:

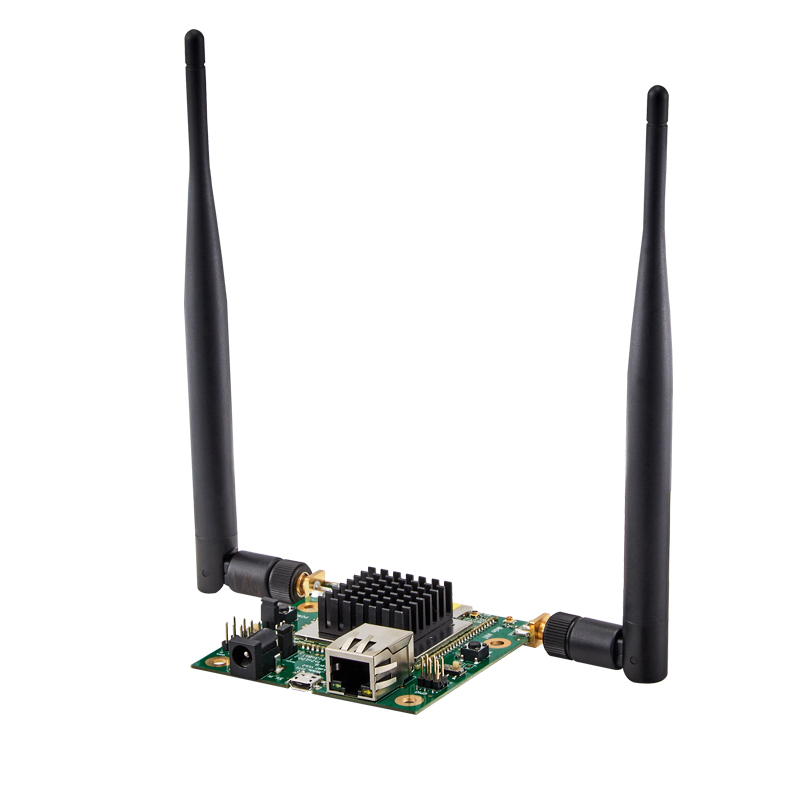

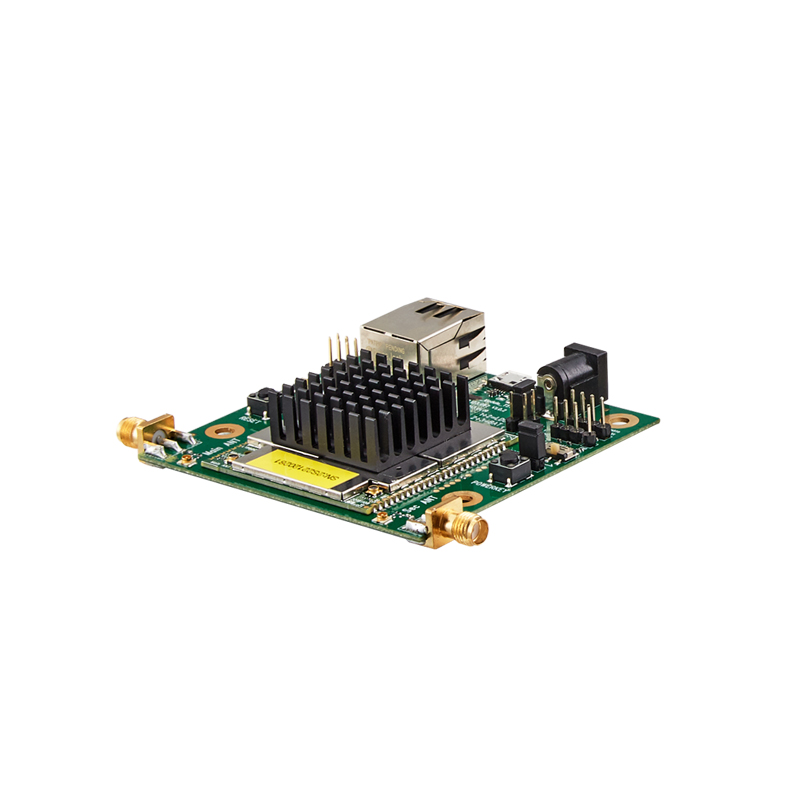

- OEM board format for seamless platform integration
- Multiple network modes: Mesh, Point-to-Multipoint, and Point-to-Point
- Concurrent IP & serial data transmission
- Adjustable RF power output (-40 dBm to +25 dBm)
Robust & Secure Design:
- Military-grade temperature tolerance: -40°C to +80°C
- 128-bit AES encryption for secure communications
- Web-based management interface for configuration and real-time topology monitoring
- Remote and local firmware upgrade capability
Ideal for drone systems, mobile platforms, and applications requiring reliable wireless connectivity in challenging conditions.
Key Features:
- Ultra-Low Latency: Under 25ms for mission-critical applications
- Universal Connectivity: Transparent IP network supports any standard IP device
- Lightweight & Efficient: Compact 50g design with only 5W power consumption
- Flexible Integration: Available in an OEM bare-board format for seamless platform integration
Primary Application:
The FD-6100 enables self-forming, self-healing mesh networks that enhance robustness, extend operational range, and streamline collaborative communications. Designed for size and weight-sensitive UxV (uncrewed vehicle) applications, it delivers an optimal SWaP (Size, Weight, and Power) profile ideal for direct platform and system integration.
Perfect for:
- Wide-area coverage and multi-hop mobile applications, including robotics
- Tactical communications
- Wireless video transmission for unmanned land vehicles
Specifications:
| GENERAL | ||
| TECHNOLOGY | MESH base on TD-LTE Wireless technology standard | |
| ENCRYPTION | ZUC/SNOW3G/AES(128) OptionalLayer-2 | |
| DATA RATE | 30Mbps(Uplink and Downlink) | |
| RANGE | 10km(Air to ground)500m-3km(NLOS Ground to ground) | |
| CAPACITY | 8nodes | |
| POWER | 23dBm±2 (2w or 10w on request) | |
| LATENCY | One Hop Transmission≤30ms | |
| MODULATION | QPSK, 16QAM, 64QAM | |
| ANTI-JAM | Automatically Cross-Band frequency hopping | |
| BANDWIDTH | 1.4Mhz/3Mhz/5Mhz/10MHz/20MHz | |
| POWER CONSUMPTION | 5Watts | |
| POWER INPUT | DC12V | |
| SENSITIVITY | ||
| 2.4GHZ | 20MHZ | -99dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 1.4GHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| 800MHZ | 20MHZ | -100dBm |
| 10MHZ | -103dBm | |
| 5MHZ | -104dBm | |
| 3MHZ | -106dBm | |
| FREQUENCY BAND | ||
| 2.4Ghz | 2401.5-2481.5 MHz | |
| 1.4Ghz | 1427.9-1447.9MHz | |
| 800Mhz | 806-826 MHz | |
| COMUART | ||
| Electrical Level | 2.85V voltage domain and compatible with 3V/3.3V level | |
| Control Data | TTL mode | |
| Baud rate | 115200bps | |
| Transmission Mode | Pass-through mode | |
| Priority level | Higher priority than the network portWhen the signal transmission is crowed, the control data will be transmitted in priority |
|
| Note:1. The data transmitting and receiving is broadcast in the network. After successful networking, each FD-6100 node can receive serial data. 2. If you want to distinguish between sending, receiving and control, you need to define the format yourself |
||
| MECHANICAL | ||
| Temperature | -40℃~+80℃ | |
| Weight | 50grams | |
| Dimension | 7.8*10.8*2cm | |
| Stability | MTBF≥10000hr | |

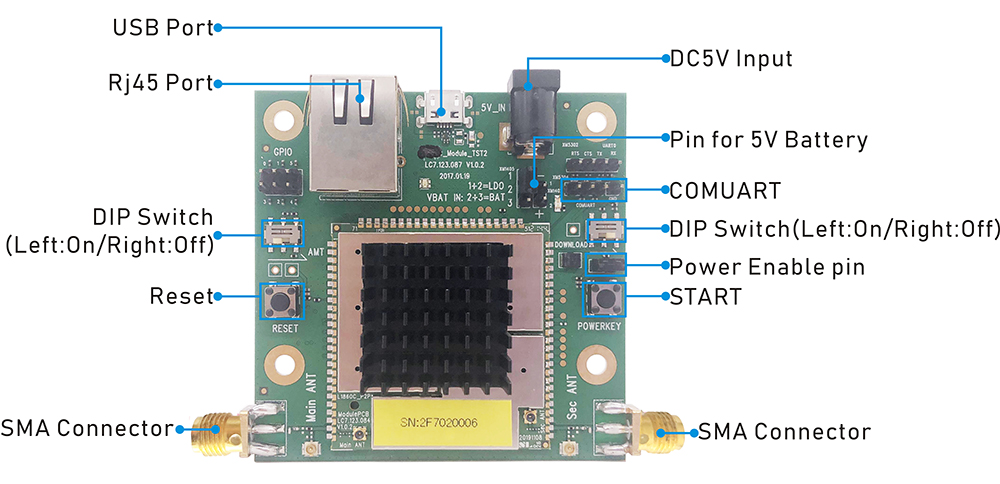

| INTERFACES | ||
| RF | 2 x SMA | |
| ETHERNET | 1xEthernet | |
| COMUART | 1x COMUART | |
| POWER | DC INPUT | |
| INDICATOR | Tri-COLOR LED | |
