Ultra Wideband Amplifier: The 300-6000MHz Power Amplifier Revolution
nn
The 300-6000MHz power amplifier stands at the forefront of RF technology, delivering an exceptional combination of power, precision, and versatility. Designed for demanding applications ranging from military communications to advanced testing, this ultra wideband amplifier generates up to 100W of clean, stable output across a frequency span that covers critical bands. Its integrated DDS (Direct Digital Synthesis) module transforms it into more than just an amplifier; it becomes a complete signal generation and amplification system, capable of producing customizable waveforms with remarkable accuracy.
nn
Efficiency is a hallmark of this design. With a conversion efficiency of ≥42%, the ultra wideband amplifier minimizes wasted energy as heat, a critical factor for continuous high-power operation. This efficiency, combined with advanced thermal management, ensures that the system remains reliable even under the heaviest loads. The ability to software-adjust output power from a manageable 10W up to the full 100W, along with a ≥30dB ALC adjustment range, provides the flexibility needed to match exact application requirements, from sensitive lab experiments to robust GPS jammer systems.
nn
Precision Signal Generation with the DDS Integrated Module
nn
At the heart of this system lies a sophisticated DDS integrated module, which brings laboratory-grade frequency synthesis to a compact, rugged package. The DDS module allows for three distinct modes of frequency control, ensuring it can adapt to any operational scenario. Users can select a single frequency with 1MHz accuracy up to the full 6GHz range, set up a broadband sweep with adjustable step sizes and intervals, or program four independent sub-bands for multi-frequency tasks. This level of control is essential for applications that require dynamic frequency hopping, detailed spectral analysis, or the precise generation of jamming signals.
nn
The DDS integrated module is not just about frequency; it also contributes to overall signal purity. The ultra wideband amplifier maintains excellent in-band fluctuation of ≤2.5dB peak-to-peak and keeps spurious emissions low, ensuring that the output is both powerful and clean. This combination is critical for GPS jammer systems, where stray signals could compromise effectiveness, and for RF testing, where measurement accuracy depends on signal integrity.
nn
Robust Performance and Intelligent Monitoring
nn
Built to perform in harsh environments, the 300-6000MHz power amplifier operates flawlessly across a wide temperature range (-10°C to +65°C) while maintaining exceptional gain stability (±1.5dB) and power stability (±1dB). A high-efficiency cooling system, featuring an aluminum heat sink and a built-in fan, actively manages thermal load, preventing performance degradation during prolonged use. The amplifier’s input and output VSWR (≤1.35) ensures minimal signal reflection, protecting both the amplifier and upstream components while maximizing power transfer.
nn
Real-time monitoring and control are facilitated by a clear LCD display that shows frequency, power output, and operational status. Three LED indicators (POWER, RUN, ALARM) provide instant visual diagnostics. The system’s intelligence extends to remote management via RS485, allowing operators to turn the amplifier on or off, adjust the alarm functions, and dynamically control downlink power with a range of ≥20dB across high, medium, and low levels.
nn
Comprehensive Protection for the Ultra Wideband Amplifier
nn
To safeguard this investment in high-power RF technology, the 300-6000MHz power amplifier is equipped with multiple, automatic protection mechanisms. These ensure safe operation under a variety of fault conditions, making it ideal for continuous-duty applications like GPS jammer deployments.
nn
- n
- Over-Temperature Protection: An alarm triggers an automatic shutdown if internal temperature exceeds 85°C. Operation resumes automatically once cooling brings the temperature below 65°C.
- Overpower Protection: The system monitors output power and shuts down if it exceeds the ALC threshold by 2dB.
- Standing Wave Alarm: A VSWR reading greater than 4.0 triggers a protective shutdown to prevent damage from severe mismatches.
- Overcurrent Protection: The system limits current to 12A to prevent damage from short circuits or other faults.
- Under-Voltage Alert: The system monitors the supply voltage and can alert or shut down if it drops below 32V.
n
n
n
n
n
nn
These systems work together to ensure that the ultra wideband amplifier remains operational and protected, even in the most demanding conditions. Users can query real-time parameters including amplifier on/off status, output power with ±1dB accuracy, standing wave ratio, internal temperature with ±3°C precision, and ALC settings, providing complete situational awareness.
nn
Technical Specifications of the 300-6000MHz Power Amplifier
nn
The following table provides a comprehensive overview of the amplifier’s key performance parameters, ensuring clarity and precision for engineers and integrators.
nn
| Parameter | Value | Unit | Remarks |
|---|---|---|---|
| Operating Voltage | 28 | V | 24-30V range |
| Conversion Efficiency | ≥42 | % | @100W typical |
| Controllable Output Power | 10 to 100 | W | Software set power level |
| ALC Power Adjustment Range | ≥30 | dB | Voltage Controlled Attenuation |
| Gain | 50 ± 1.0 | dB | |
| In-band Fluctuation | ≤2.5 | dB | Peak-to-peak |
| Spurious Emission (In Band) | ≤ -15 | dBm/1MHz | Measured at max output with CW signal |
| Spurious Emission (Out of Band, 9KHz-1GHz) | No higher than normal noise floor | dBm | |
| Spurious Emission (Out of Band, 1G-12.75GHz) | No higher than normal noise floor | dBm | |
| Maximum Allowable Input Power | ≥ +10 | dBm | Lasts 1min without damage |
| Input VSWR | ≤1.35 | With +28V, standard network output -10dBm | |
| Output VSWR (No Power) | ≤1.30 | Standard network output -10dBm | |
| Output VSWR (Power On) | ≤1.35 | Dual Directional Coupler Test | |
| Working Ambient Temperature | -10 to +65 | °C | Low temperature can start, monitoring works normally |
| Gain Stability | ±1.5 | dB | @ -40°C to +65°C |
| Power Stability | ±1 | dB | @ -40°C to +65°C |
| Power Requirements | ≥8 | A | @ +28Vdc; CW output 100W |
| Power Supply Interface | RS485 | 7W2 Male | |
| RF Output Connector | N-F | ||
| Display | LCD | Shows frequency, power, switch status; 3 LEDs: POWER, RUN, ALARM | |
| Cooling | Built-in fan | Modules can be run separately | |
| Physical Dimensions | 155 x 125 x 60 | mm | |
| Weight | 1.6 | Kg | |

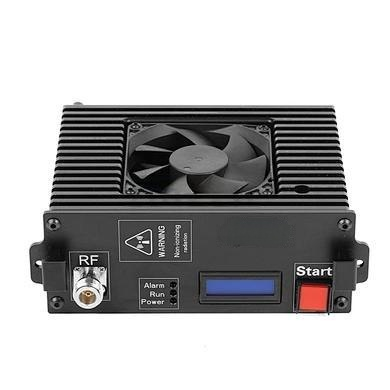

| Appearance | Black integrated module with fan | For single or portable use |
nn
Conclusion: The Peak of RF Versatility
nn
The 300-6000MHz power amplifier, with its integral DDS signal generator, represents an unmatched solution for professionals who demand both raw power and pinpoint control. From GPS jammer systems requiring precise frequency agility to military communications demanding unwavering reliability, this ultra wideband amplifier delivers. Its intelligent control, comprehensive protection features, and robust construction make it a cornerstone for any high-power RF application, ensuring that whether in a lab or in the field, your signal is always powerful, clean, and under your command.
