Unleashing the Power of the GaN RF Power Amplifier Module 100W
nn
In the rapidly evolving landscape of wireless communication, the demand for robust, high-performance components has never been greater. As technology pushes the boundaries of signal strength and coverage, the RF power amplifier module 100W has emerged as a critical enabler for a wide array of applications. MOPTECH leads this charge with its innovative gallium nitride (GaN) design, a solution that combines formidable power with exceptional versatility. By delivering strong, reliable signal amplification across a vast frequency spectrum, this module is redefining what is possible in RF engineering, from critical communications to advanced testing and countermeasure systems.
nn
At the heart of this module lies its ultra-wideband capability. Operating seamlessly from 500MHz to 2000MHz, it provides engineers with a single, powerful solution for multiple frequency bands. This eliminates the need for multiple, specialized amplifiers, simplifying system architecture and reducing costs. The output power is equally impressive, with a minimum saturation power of 49.0 dBm and a typical value reaching an astonishing 50 dBm. This high power output ensures exceptional signal penetration and robust transmission, even in challenging environments.
nn
Core Performance and Technical Specifications of the RF Power Amplifier Module 100W
nn
Understanding the precise capabilities of any RF component is paramount. The MOPTECH RF power amplifier module 100W is engineered to exacting standards, offering a balance of power, stability, and protection. Below are the key technical parameters that define its performance.
nn
| Parameter | Value | Remark |
|---|---|---|
| Frequency Range | 500 – 2000 MHz | Ultra-wideband coverage |
| Working Voltage (DC) | 28 – 32 V | Standard operating range |
| Max Output Power | 50 ± 1 dBm | Typical value at 100W |
| Working Current | ≤ 10 A | @ 100W typical case |
| Controllable Output Power | 100 W | Nominal power level |
| ALC Power Regulation Range | ≥ 3 dB | Voltage-controlled attenuation |
| Gain | 50 ± 1.0 dB | High amplification factor |
| Intraband Fluctuation | ± 2 dB | Peak to peak flatness |
| Max Allowable Input | ≥ +10 dBm | Lasts 1 minute without damage |
| Input VSWR | ≤ 1.50 | Low reflected power |
| Working Environment Temp. | -10 to +55 °C | Low temperature start and monitoring |
| RF Input Connector | SMA-Female | Standard RF interface |
| RF Output Connector | N-Type Female | Robust high-power interface |
| DC Supply Connector | 7W2 | Secure power connection |
| Module Protection | Over-temperature, VSWR | Automatic disconnection and alarms |
nn
Robust Protection and Versatile Integration
nn
One of the standout features of this RF power amplifier module 100W is its built-in intelligence and protection. The module is designed not just for peak performance, but for long-term reliability. It incorporates an over-temperature standing wave alarm function. When the internal temperature exceeds safe limits, the system automatically disconnects power to prevent damage, greatly extending the operational lifespan of the amplifier. This self-monitoring capability provides peace of mind in demanding, continuous-use applications.
nn

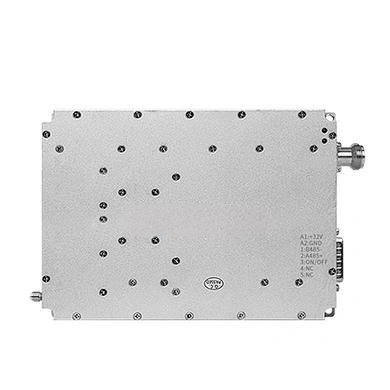

Integration into existing systems is straightforward. The RF input utilizes a standard SMA female connector, while the rugged N-type female connector on the output ensures a secure and low-loss connection for high-power signals. This thoughtful design facilitates easy installation within a variety of system enclosures. The module’s ability to perform reliably across a wide temperature range, from -10°C to +55°C, further underscores its suitability for both indoor and outdoor environments.
nn
Wide-Ranging Applications for the RF Power Amplifier Module 100W
nn
The versatility of this module makes it an indispensable component across numerous industries. Its high-power output and broad frequency range are ideal for many demanding scenarios. The primary application areas include:
nn
- n
- General Purpose: Laboratory testing, research, and development.
- Communication Systems: Cellular, military, and private network boosting.
- RF Interference Systems: Specifically used for jamming unauthorized drones and countering illegal RF threats.
- Industrial, Scientific, and Medical (ISM): Powering RF generators for various processes.
- Radar Simulators: Producing high-fidelity signals for testing and training.
- Electromagnetic Compatibility (EMC) Testing: Generating high-field strength for immunity testing.
- Broadcasting: Amplifying signals for television and radio transmitters.
n
n
n
n
n
n
n
nn
This extensive list of applications confirms that the RF power amplifier module 100W is far more than just a high-power component; it is a flexible building block for innovation. MOPTECH understands that each customer’s needs are unique. If a standard configuration does not perfectly match your requirements, the company offers comprehensive customization services. They work collaboratively to define product and technical specifications, creating tailor-made solutions that fit precise operational goals. From defining new bandwidths to adjusting performance parameters, MOPTECH’s engineering team is ready to help.
nn
Furthermore, MOPTECH is committed to long-term partnership, providing comprehensive after-sales service. This includes dedicated technical support, expert repair services, and thorough product training. Their goal is to ensure your complete satisfaction and success when deploying the RF power amplifier module 100W. Whether for a critical defense system, a next-generation communication network, or advanced scientific research, this module delivers the power, reliability, and flexibility required for the future of wireless technology.
