Unlocking Performance: The High Power 25W Integrated PA Module for 6-10GHz
nnIn demanding RF and microwave systems, the amplifier is the beating heart that determines signal integrity, range, and reliability. The high power 25W integrated power amplifier (PA) module, operating across the 6-10GHz frequency band, represents a sophisticated solution for engineers seeking both robust power delivery and intelligent system protection. Designed to handle both continuous wave (CW) and pulsed input signals, this module supports an input pulse width range from 50 nanoseconds to CW, making it exceptionally versatile for radar, communications, and electronic warfare applications. With a saturated output power of 44±1dBm and a flatness of ±2dB max at Psat, it ensures consistent performance across the entire band. The module’s gain flatness further enhances signal fidelity, while its comprehensive protection suite—including reverse polarity, over-temperature, overvoltage/undervoltage, and overcurrent safeguards—protects both the amplifier and downstream digital RF modulator components from damage. Real-time monitoring via RS485 serial communication provides critical insight into temperature and current, enabling proactive system management.nn
Core Specifications and Performance Parameters
nnUnderstanding the technical details of this high power 25W integrated PA module is essential for system integration. The following table outlines key electrical and mechanical specifications.nn

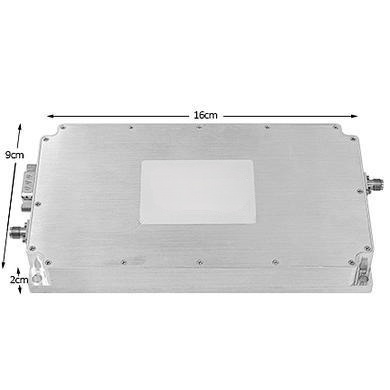

| Parameter | Specification |
|---|---|
| Frequency Range | 6 – 10 GHz |
| Input Signal Type | CW & Pulsed |
| Input Pulse Width Range | 50 ns to CW |
| RF Input Drive | 0 – 3 dBm |
| Saturated Output Power | 44 ± 1 dBm |
| Flatness @ Psat | ±2 dB Max |
| Gain Flatness | Standard specification |
| Second Harmonics @ Max. Power | >10 dBc |
| Non-Harmonics Spurious @ Max. Power | >60 dBc |
| Input/Output Impedances | 50 Ohm |
| Input VSWR | Standard specification |
| Output VSWR | Standard specification |
| Power ON/OFF Time | TTL 0/3.3V (Power on: 3.3V, Power off: 0V; Default: 3.3V) |
| Operating Voltage | 28V / 3.2A |
| Dimensions (Max) | 120 ± 0.5 mm × 80 ± 0.5 mm × 20 ± 0.5 mm |
| Weight | ≤ 1 kg |
| Operating Temperature | -40°C to +60°C |
| Communication Model | RS485 Serial Communication |
nn
Built-In Protection Features for System Reliability
nnThe high power 25W integrated PA module is engineered with layered protection mechanisms to ensure longevity and safe operation in harsh environments. Reverse polarity protection prevents damage from incorrect power connections. Over-temperature protection automatically powers down the amplifier when the internal temperature exceeds 85°C, and restores operation once the temperature drops below 65°C. Overvoltage and undervoltage protection triggers a power-off condition if the input voltage rises above 36V or falls below 24V. Overcurrent protection disables the amplifier if the current surpasses 10A. These features collectively safeguard the digital RF modulator and other sensitive components from electrical stresses.nn
Monitoring and Control via RS485
nnReal-time system awareness is critical for high power RF applications. The module supports RS485 serial communication, enabling remote monitoring of temperature and current draw. This allows operators to assess thermal performance, detect anomalies, and implement predictive maintenance strategies without physical access to the unit. The RS485 interface is well-suited for industrial and defense environments due to its noise immunity and ability to operate over long distances.nn
Applications and Integration Considerations
nnGiven its frequency range and 25W output power, this integrated PA module is ideal for phased-array radar systems, electronic countermeasures, and broadband communication links that require high linearity and efficiency. The compact dimensions—120mm x 80mm x 20mm—allow integration into space-constrained assemblies. Engineers should note the operating voltage requirement of 28V at 3.2A and the TTL power control input for sequencing. The module’s ability to handle pulse widths from 50 ns to CW makes it suitable for both low-duty-cycle pulsed waveforms and continuous transmission.nn
Conclusion: A Robust Solution for High Power RF Systems
nnThe high power 25W integrated PA module for the 6-10GHz band delivers exceptional saturated output power, flat gain characteristics, and comprehensive protection features in a compact, lightweight package. Its support for both CW and pulsed signals, combined with RS485 monitoring, makes it a versatile building block for advanced RF systems. Whether deployed in airborne radar, ground-based communications, or test equipment, this module provides the performance and reliability needed for mission-critical applications. By integrating over-temperature, overvoltage, undervoltage, overcurrent, and reverse polarity protection, it ensures safe operation and minimizes downtime. For engineers designing next-generation high power systems, this PA module represents a balanced fusion of power, control, and durability.
