Revolutionizing RF Power: The 2-8GHz 50W Wideband Solid State Power Amplifier Module
nnThe relentless evolution of 5G and satellite communications demands unprecedented bandwidth capabilities, pushing the limits of traditional amplification technologies. Enter the 2-8GHz 50W wideband solid state power amplifier module (SSPA)—a cutting-edge solution designed to meet the stringent requirements of next-generation wireless systems. By leveraging advanced GaN (Gallium Nitride) semiconductor technology, this amplifier module delivers exceptional performance, reliability, and efficiency in a compact, rugged package. Whether deployed in EMC testing laboratories, military radar systems, or satellite uplink stations, this SSPA ensures high-fidelity signal amplification across the critical 2-8GHz frequency range, redefining what is possible in RF power amplification.nn
Unmatched Performance Specifications
nnThe amplifier module excels in delivering robust power output while maintaining signal integrity, essential for complex modulations like 256QAM. With a saturated output power of 48.5dBm and a P1dB compression point of 44dBm, it provides the headroom needed for demanding applications. Gain flatness of ±1.5dB across the entire bandwidth ensures uniform amplification, minimizing distortion. Additionally, harmonic suppression of -25dBc for both second and third harmonics guarantees clean signal output, critical for sensitive systems. To effectively showcase these critical parameters, we present the full technical specifications below:nn
| Parameter | Value (Typical/Minimum/Maximum) | Conditions |
|---|---|---|
| Working Frequency | 2-8 GHz | |
| Saturated Output Power | 48.5 dBm Typ., 46.5 dBm Min. | @ Pin = 0 dBm |
| P1dB | 44 dBm Typ., 41 dBm Min. | |
| Gain | 48.5 dB Typ., 46.5 dB Min. | @ Pin = 0 dBm |
| Gain Flatness | ±1.5 dB Typ. | @ Pin = 0 dBm |
| Small Signal Gain | 60 dB Typ. | @ Pin = -40 dBm |
| Small Signal Gain Flatness | ±2 dB Typ. | @ Pin = -40 dBm |
| Isolation at Disable Status | 90 dB Typ. | |
| Input Power | 0 dBm Typ. | |
| 2nd Harmonic Suppression | -25 dBc Typ., -15 dBc Max. | @ Pout = 45 dBm |
| 3rd Harmonic Suppression | -25 dBc Typ., -15 dBc Max. | @ Pout = 45 dBm |
| Spurious Suppression | -70 dBc Typ., -65 dBc Max. | @ Pout = 45 dBm |
| Input VSWR | 1.5:1 Typ., 2:1 Max. | |
| Supply Voltage | 110-240 V (47-61 Hz, Single-Phase) | |
| Power Consumption | 500 W Typ., Max. @ Pin = 0 dBm | |
| Input Power Level (Without Damage) | Pin ≤ 10 dBm | |
| Load VSWR | VSWR ≤ 3:1 | @ Pout = 47 dBm |
| Power Off Protection | VSWR ≥ 5:1 and Pout ≥ 37 dBm | |
| Thermal Degradation | 75 °C | |
| RF Input Connector | Type N (Female) | |
| RF Output Connector | Type N (Female) | |
| Power Supply Connector | 3-Wire AC Power Entry (IEC320-C14, including fuses) | |
| Control Connector | D-Sub 9-Pin | |
| Dimension | 3U, 19-inch Rack Mount | |
| Weight | 20 kg | |
| Finishing | Spraying Plastics | |
| Heat Dissipation | Forced-Air Cooling | |
| Environmental | N/A |
n
nn
Engineered for Harsh Environments with Advanced Protection
nnThis wideband solid state power amplifier module is built to thrive in challenging conditions. Its robust design includes automatic shutdown when VSWR reaches 5:1 or higher, preventing damage from impedance mismatches. A 75°C thermal derating mechanism ensures safe operation during prolonged high-power use, while forced-air cooling maintains stable performance even in continuous full-power scenarios. These features extend the lifespan of the amplifier module and reduce downtime in field deployments.nn
Intelligent Monitoring and Control

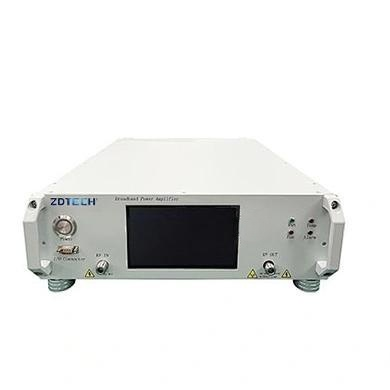

nnThe SSPA provides user-friendly monitoring through front-panel LEDs indicating RUN, TEMP, FAN, and ALARM status. The D-Sub 9-pin control interface enables remote supervision, allowing operators to manage the amplifier module from a distance. This capability can reduce maintenance costs by up to 40% in field deployments, as it minimizes the need for on-site inspections and supports proactive diagnostics. For network operators and system integrators, this translates to higher system availability and lower total cost of ownership.nn
Key Applications Across Multiple Sectors
nnThis high-linearity SSPA excels in a variety of critical applications, proving its versatility and performance in real-world scenarios. Its wide instantaneous bandwidth and GaN-based efficiency make it ideal for:nn
EMC Testing Laboratories
nIn EMC (Electromagnetic Compatibility) test facilities, generating clean, high-power signals over a broad frequency range is essential. The amplifier module amplifies wideband signals with minimal distortion, enabling accurate testing of emissions and susceptibility in devices such as 5G massive MIMO active antenna systems. Its consistent gain flatness and low harmonics ensure reliable results for regulatory compliance.nn
Military and Aerospace Systems
nFor military radar transmitters, satellite uplink stations, and aerospace electronic warfare simulators, the SSPA delivers military-grade reliability in a 20kg, 3U rack-mount package. Its rugged design withstands rigorous operational demands, while the remote monitoring capabilities enhance mission effectiveness by allowing quick adjustments and diagnostics from safe distances.nn
Mobile Communication Vehicles
nFrom laboratory environments to mobile communication vehicles, this amplifier module provides consistent performance. Its forced-air cooling system adapts to variable conditions, making it suitable for field operations where environmental stability cannot be guaranteed. The 110-240V wide-range power supply facilitates integration into different power infrastructures globally.nn
Conclusion: A New Standard in RF Power Amplification
nnAs the demands of 5G, satellite communications, and advanced defense systems continue to escalate, the need for reliable, high-performance amplification becomes paramount. The 2-8GHz 50W wideband solid state power amplifier module sets a new benchmark by combining GaN efficiency, extensive protection mechanisms, and intelligent monitoring in a compact form factor. Whether used in EMC testing, military radar, or mobile network deployments, this amplifier module offers the power, precision, and durability that next-generation systems require. Its ability to maintain fidelity for complex modulations while withstanding harsh operating conditions makes it an indispensable component for engineers and system designers aiming to stay ahead in the evolving RF landscape.
