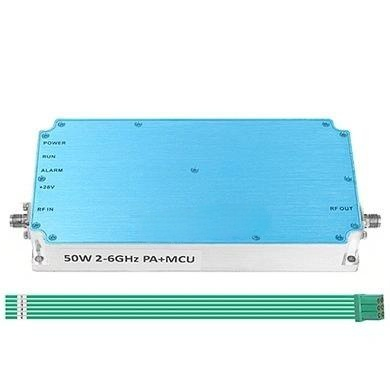

Unleashing the Power of the 50W Broadband RF Power Amplifier Module with MCU Intelligence
nn
In the demanding world of high-frequency electronics, having a reliable and intelligent amplification solution is critical. Enter the 50W Broadband RF Power Amplifier Module, a high-performance powerhouse engineered for cutting-edge applications like 5G prototyping, millimeter-wave radar testing, and EMC experiments. This module combines robust GaN technology with MCU-driven intelligence to deliver not just raw power, but also sophisticated protection and monitoring capabilities. Whether you’re in a research institute or an advanced lab, this RF power module provides the stability and efficiency needed to push the boundaries of high-frequency systems.
nn
The core of this amplifier is its ability to deliver ≥47dBm of saturated output power (equivalent to 50W) across an impressive frequency range of 2000-6000MHz. This isn’t just about brute force; it’s about precision. The module ensures a flatness of ±2dB at Psat and boasts a maximum gain flatness that maintains signal integrity. With a working efficiency of ≥35% under full load and robust harmonic suppression (>20dBc) alongside spurious rejection exceeding 60dBc, it’s a clean and powerful driver for any high-frequency chain.
nn
Advanced Protection and Monitoring: The MCU Intelligence Advantage
nn
The key differentiator of this RF power amplifier module is its integrated MCU (Microcontroller Unit) intelligence. This isn’t a simple, unprotected amplifier; it’s a smart system designed to safeguard itself and your valuable test equipment. The MCU continuously monitors critical parameters, enabling automatic shutdown in various hazardous conditions. If the internal temperature exceeds +85°C, the amplifier switches off, reactivating only when it cools to +65°C. Similarly, abnormal voltage above 32V, a VSWR greater than 5:1, or overcurrent exceeding 15A will instantly trigger a protective shutdown. This intelligence prevents catastrophic damage, ensuring longevity and reliable performance in even the most challenging environments.
nn
Robust Design and Environmental Resilience
nn
Built for industrial-grade operation, this module thrives in temperatures ranging from -40°C to +60°C. Its rugged construction includes an efficient aluminum heatsink to manage thermal load and a feed-through capacitor power interface. This design choice stabilizes high-frequency performance by minimizing noise and interference on the power supply line. The module includes reverse polarity protection, adding an extra layer of safety against accidental miswiring.
nn
Comprehensive Technical Specifications
nn
To fully understand the capabilities of this research-grade PA module, the following table details all key parameters. These specifications are critical for engineers designing high-power RF systems and ensure correct integration into test setups.
nn
| Parameter | Specification |
|---|---|
| Working Frequency | 2000-6000 MHz |
| Saturated Power Output | ≥47 dBm (50W) |
| Flatness @ Psat | ±2 dB |
| RF Input Drive | 5 ± 2 dBm |
| Input and Output VSWR | ≤1.8 |
| Working Voltage | DC +28V |
| Working Current | 5.5A |
| Working Efficiency | ≥35% |
| Harmonics @ Max. Power | >20 dBc |
| Non-Harmonics Spurious @ Max. Power | >60 dBc |
| Impedance | 50 Ohm |
| Power Supply Interface | Feed-through Capacitor |
| RF Port | SMA-KFD |
| Working Temperature | -40°C to +60°C |
| Monitoring Interface | 40cm Cable, 6-pin Connector (RS485 Control) |
| Amplifier Size | 140 x 70 x 20 mm |
| Installation Size | 133.5 x 63.5 x 20 mm |
nn
Intelligent Control and Status Visualization
nn
The MCU intelligence enables a rich set of control and monitoring functions through the RS485 interface. Users can query amplifier status, including operational state, over-temperature alarms, standing wave ratio, and overall fault status. The amplifier also features a dedicated enable switch (ON at 0V, OFF at 3.3V, internally pulled low for default ON). For instant visual feedback, a tri-color LED system is built-in: a green POWER LED, a RUN indicator, and a red ALARM LED for immediate fault detection.
nn
Detailed Alarm Thresholds for Proactive System Protection
nn
The module’s intelligence employs specific thresholds for each alarm, ensuring precise protection without unnecessary interruptions:
nn
- n
- Over-temperature Alarm: Triggers amplifier shutdown at +85°C, reactivates at +65°C.
- Standing Wave Alarm (VSWR): Automatically switches off the amplifier when VSWR exceeds 5:1.
- Overvoltage and Undervoltage Alarm: Shuts down the amplifier when voltage exceeds 32V or drops below 24V.
- Overcurrent Alarm: Automatically switches off the amplifier when current exceeds 15A.
n
n
n
n
nn
These features make this RF power module an exceptionally robust and dependable component for rigorous lab environments and field testing.
nn
Conclusion: A Premier RF Power Solution for Advanced Research
nn
The 50W Broadband RF Power Amplifier Module with MCU intelligence is more than just a component; it is a comprehensive RF power solution for engineers who demand precision, protection, and performance. Its combination of GaN efficiency, wideband coverage from 2000 to 6000 MHz, and intelligent self-monitoring makes it an ideal core driver for 5G development, radar prototyping, and EMC testing. With its robust industrial design and clear status indicators, this amplifier delivers the reliability and power that modern R&D projects require, ensuring you can focus on innovation without worrying about equipment failure.
