Precision RF Cable Assembly: N Male to 4.3-10 (Mini DIN) Male for High-Performance Communications
nnIn the demanding world of telecommunications and RF engineering, the quality of your interconnect components can make or break system performance. Our premium RF cable assembly, featuring an N male to 4.3-10 (Mini DIN) male connector design with 1/2 super flexible coaxial cable, stands as a testament to engineering excellence. This assembly offers a characteristic impedance of 50Ω and an operating frequency range spanning DC to 7.5GHz. Whether you are upgrading base station infrastructure or optimizing laboratory test setups, the 4.3-10 Mini Din Male Connector n Communications Cable Assembly Connector delivers the reliability and electrical consistency required for critical signal paths.nn
Key Specifications and Performance Metrics
nnTo provide a clear understanding of this assembly’s capabilities, all technical parameters and structured data are presented in the table below. This ensures complete transparency regarding electrical, mechanical, and environmental performance.nn
Electrical and Mechanical Specifications
nn
| Parameter | N Male Connector | Mini DIN Male Connector |
|---|---|---|
| Impedance | 50Ω | 50Ω |
| Frequency Range | DC-7.5GHz | DC-7.5GHz |
| Withstanding Voltage | 4000V rms at sea level | 4000V rms at sea level |
| Working Voltage | 2700V rms at sea level | 2700V rms at sea level |
| Insulation Resistance | ≥ 10000 MΩ | ≥ 10000 MΩ |
| Durability | ≥ 500 cycles | ≥ 500 cycles |
| Contact Resistance (Center Contact) | ≤ 0.4 mΩ | ≤ 0.4 mΩ |
| Contact Resistance (Outer Contact) | ≤ 1.5 mΩ | ≤ 1.5 mΩ |
| Temperature Range | -55 to +155°C (PE Cable: -40 to +85°C) | -55 to +155°C (PE Cable: -40 to +85°C) |
nn
VSWR Performance
nn
| Connector Type | VSWR (at 6GHz) |
|---|---|
| Straight | ≤ 1.20 |
| Right Angle | ≤ 1.35 |
nn
Superior Electrical Performance for Low-Loss Signal Integrity
nnThis 4.3-10 Mini Din Male Connector n Communications Cable Assembly Connector is engineered to minimize signal degradation while maximizing transmission efficiency. With a VSWR of ≤1.20 for straight connectors and ≤1.35 for right-angle configurations at 6GHz, the assembly maintains exceptional impedance matching across the entire DC-7.5GHz band. The insulation resistance exceeds 10,000 MΩ, and the dielectric can withstand 4000V rms, providing robust protection against voltage spikes. Center contact resistance is kept below 0.4 mΩ, while outer contact resistance remains under 1.5 mΩ, ensuring that every milliwatt of RF power reaches its destination without excessive loss. These metrics make the assembly ideal for applications where even minor signal reflections can disrupt system performance.nn
Robust Construction and Environmental Reliability
nnBuilt to endure harsh deployment conditions, the connectors demonstrate a durability of at least 500 mating cycles, offering long service life in frequently reconfigured systems. The operating temperature range spans from -55°C to +155°C, with PE cable versions rated from -40°C to +85°C, ensuring stable operation in both extreme cold and heat. Whether deployed in outdoor base stations, indoor RF equipment, or mobile communication platforms, this assembly maintains its mechanical integrity and electrical consistency. Customizable cable length further enhances flexibility, allowing you to tailor the assembly to specific physical layouts without compromising signal quality.nn
Customization Options and Ordering Information

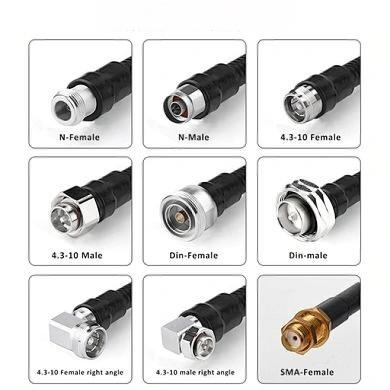

nnRecognizing that standard configurations rarely fit every scenario, we offer comprehensive customization. Cable length can be adjusted to meet your exact requirements, and alternative cable types and connector configurations are available upon request. Packaging is provided as neutral or customized, ensuring seamless integration into your supply chain. For a broader selection of interconnect solutions, including additional variants of the 4.3-10 Mini Din Male Connector n Communications Cable Assembly Connector, please visit our company website. Our product range encompasses diverse connector interfaces, cable formulations, and performance grades to support your evolving RF needs.nn
Conclusion: The Optimal Choice for RF Connectivity
nnWhen your communications system demands unwavering signal fidelity, the 4.3-10 Mini Din Male Connector n Communications Cable Assembly Connector delivers on every front. From its 50Ω impedance and wide DC-7.5GHz bandwidth to its ruggedized connectors and exceptional VSWR values, this assembly is purpose-built for the most challenging RF environments. Combined with customizable length, robust environmental tolerance, and proven electrical parameters, it stands as a reliable foundation for your next-generation network infrastructure. Choose this assembly for applications where precision, durability, and performance are non-negotiable.
