Unleashing the Power of the K-Band: Introducing the 22-26GHz 50W SSPA
n
The rapid evolution of wireless communication technology is driving an insatiable demand for high-frequency band solutions. From satellite communications and 5G networks to advanced radar systems and electronic warfare applications, high-frequency, high-power amplifiers are now the backbone of modern connectivity and defense. The K-band, with its exceptional frequency range and wide bandwidth, emerges as the ideal choice for these cutting-edge applications. To meet this need, we are proud to introduce our new K-band 50W solid-state power amplifier (SSPA), engineered to deliver unprecedented performance to your high-frequency communication systems.
n

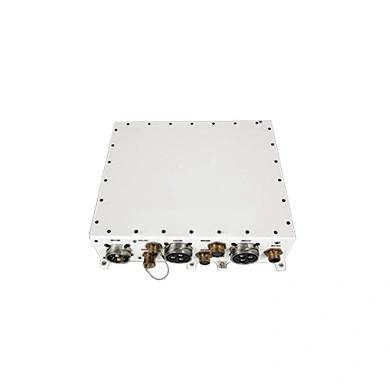

K-Band 50W SSPA: Redefining High-Frequency Performance
n
Our 22GHz-26GHz 50W SSPA is meticulously tailored for the K-band, providing the robust signal strength required for the most demanding scenarios. Whether you are bridging vast distances in satellite communication or requiring high-precision radar capabilities, the 50W output power ensures reliable, strong signal transmission. The solid-state design enhances device durability, drastically reducing maintenance needs and enabling sustained high-intensity operation. Compared to traditional high-power amplifiers, this SSPA is significantly smaller and lighter, making it an exceptional fit for mobile and space-constrained platforms such as drones, vehicle-mounted radars, and portable communication stations. The future of high-frequency communications is accelerating, and the K-band 50W SSPA is the driving force behind this transformation.
n
For professionals in the communications industry and technical experts in the defense sector, this product unlocks new possibilities. The K-band 50W SSPA not only meets but exceeds the rigorous demands of modern high-frequency applications. Contact us today to learn how this powerful amplifier can elevate your business in the competitive wave of high-frequency communications.
n
K-Band 50W SSPA Technical Specifications
n
| Parameter | Value |
|---|---|
| Electrical Specifications | |
| Frequency Range | 22-26GHz |
| Rated Power | +47dBm/50W |
| Gain Adjustment | 0-25dB (step 0.1dB) |
| Gain Flatness | 0.5dBP-P |
| Gain | ≥55dB |
| Gain Stability | ±0.5dB/24h |
| IM3 | -25dBc |
| Spurious | ≤-60dBc |
| Noise Power Density | ≤-135dBW/4kHz |
| AM/PM | ≤3°/dB |
| Group Delay | ≤0.5nS (p-p) |
| Power Supply | 220VAC |
| Power Consumption | 320W |
| Mechanical Specifications | |
| Dimensions | 300245120mm |
| Weight | 9Kg |
| RF Connectors | Input: 2.92mm-F / Output: WR42/BJ220 |
| Communication Interface | LAN/RS485/RS422/RS232 (optional) |
| Cooling | Forced Air Cooling |
n
Unmatched Durability and Integration for the K-Band
n
The K-band 50W SSPA’s solid-state architecture not only ensures longevity but also provides superior reliability compared to traveling wave tube amplifiers (TWTAs). With lower power consumption, reduced thermal output, and a compact footprint, it integrates seamlessly into existing systems. Whether you require precise gain control, minimal spurious emissions, or excellent linearity for complex modulation schemes, this amplifier delivers consistent, high-quality performance. The optional communication interfaces—LAN, RS485, RS422, or RS232—allow for flexible integration and remote monitoring, making the K-band 50W SSPA an intelligent, future-ready solution for high-frequency communication.
n
Conclusion
n
The K-band 50W SSPA represents a significant leap forward in high-frequency amplification technology. By combining the inherent benefits of solid-state design with the performance demands of modern K-band applications, this amplifier ensures that your systems remain at the forefront of innovation. From satellite communications and 5G networks to advanced radar and electronic warfare, the K-band 50W SSPA provides the power, durability, and versatility needed to succeed. Contact us now to explore how this groundbreaking amplifier can transform your high-frequency communication capabilities.
