Understanding the Ka Band Power Amplifier: A Breakthrough in High-Frequency RF Technology
nn
The Ka-band, spanning the frequency range of 26.5 GHz to 40 GHz, stands as a critical asset in modern telecommunications and radar systems. Its high-frequency and broadband nature enable rapid data transfer, making it indispensable for satellite communications, advanced radar networks, and next-generation wireless infrastructure like 5G and 6G. The Ka band power amplifier, designed to operate within this spectrum, excels at delivering high data throughput while maintaining a compact antenna footprint—a vital advantage for space-constrained deployments. However, the Ka-band’s elevated frequencies come with inherent challenges, such as reduced signal penetration and vulnerability to atmospheric attenuation, especially rain fade. Despite these obstacles, the Ka-band remains a cornerstone of global connectivity. As demand for faster, more reliable networks surges, the evolution of high-throughput satellites and terrestrial systems hinges on innovations in RF amplification. Our latest solid-state power amplifier (SSPA), covering 25-32 GHz, addresses these needs with unmatched performance in a rugged, compact design.
nn
The Ka Band Power Amplifier: Unleashing High Power with Precision
nn

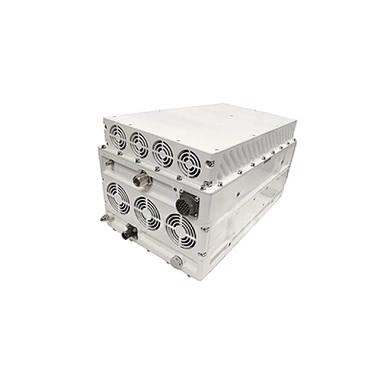

Our new series of Ka band power amplifier modules offers three power variants: 150W, 250W, and 350W, each engineered to deliver substantial saturated output power with exceptional linearity and efficiency. These amplifiers suppress spurious emissions to 60 dB below the primary signal, guaranteeing clean output for sensitive applications. Gain stability is equally impressive, with fluctuations confined to ±0.5 dB over 24 hours, ensuring consistent, long-duration operation. Furthermore, low third-order intermodulation distortion (IM3) and minimal group delay—both measured at 25 dB below the main signal—significantly enhance signal clarity. The following table details the precise specifications for each model.
nn
| Parameter | 150W Value | 250W Value | 350W Value |
|---|---|---|---|
| Frequency Range | 26 GHz–31 GHz | 25 GHz–32 GHz | 26 GHz–31 GHz |
| Rated Power | +51.8 dBm / 150 W | +54 dBm / 250 W | +55.5 dBm / 350 W |
| Gain Adjustment | 0–25 dB (step 0.1 dB) | 0–30 dB (step 0.1 dB) | 0–30 dB (step 0.1 dB) |
| Gain Flatness | 0.5 dB p-p | 0.5 dB p-p | 0.5 dB p-p |
| Gain | ≥65 dB | ≥65 dB | ≥70 dB |
| Gain Stability | ±0.5 dB / 24 h | ±0.5 dB / 24 h | ±0.5 dB / 24 h |
| IM3 | −25 dBc | −25 dBc | −25 dBc |
| Spurious | ≤ −60 dBc | ≤ −60 dBc | ≤ −60 dBc |
| Noise Power Density | ≤ −135 dBW / 4 kHz | ≤ −135 dBW / 4 kHz | ≤ −135 dBW / 4 kHz |
| AM/PM | ≤ 3° / dB | ≤ 3° / dB | ≤ 3° / dB |
| Group Delay | ≤ 0.5 nS (p-p) | ≤ 0.5 nS (p-p) | ≤ 0.5 nS (p-p) |
| Power Supply | 220 VAC (47–63 Hz) | 220 VAC (47–63 Hz) | 220 VAC (47–63 Hz) |
| Power Consumption | 1150 W | 2000 W | 2400 W |
| Dimensions (W × D × H) | 450 × 350 × 170 mm | 460 × 355 × 130 mm | 500 × 355 × 160 mm |
| Weight | 28 kg | 25 kg | 37 kg |
| RF Connectors | Input: 2.92 mm-F Output: WR28 / BJ320 |
Input: 2.92 mm-F Output: WR28 / BJ320 |
Input: 2.92 mm-F Output: WR28 / BJ320 |
| Communication Interface | LAN / RS485 / RS422 / RS232 (optional) | LAN / RS485 / RS422 / RS232 (optional) | LAN / RS485 / RS422 / RS232 (optional) |
| Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling |
nn
Why Choose Our Ka Band Power Amplifier?
nn
Our Ka band power amplifier transcends typical hardware—it is a comprehensive solution engineered for the most demanding RF environments. The combination of high gain (up to 70 dB), precise digital gain control, and excellent linearity ensures that signals remain pristine even at maximum output. Whether deployed in satellite ground stations, advanced radar arrays, or high-frequency wireless backhaul systems, this SSPA’s robust build quality and compact form factor simplify integration. Versatile connectivity options, including LAN and RS485/422/232 interfaces, enable seamless remote monitoring and control, reducing maintenance overhead. Moreover, forced air cooling guarantees reliable operation under continuous high-power stress.
nn
Applications Across Modern Communication Systems
nn
From facilitating high-throughput satellite links that beam broadband to remote regions to enabling high-resolution radar for defense and weather monitoring, the Ka band power amplifier serves as a vital building block. Its ability to maintain signal integrity across wide temperature swings and extended duty cycles makes it ideal for both fixed and mobile installations. As network operators push toward terabit-per-second speeds, amplifiers like these become the linchpin of infrastructure evolution.
nn
Conclusion: The Future of High-Speed Connectivity
nn
In an era where data consumption grows exponentially, the Ka band power amplifier remains at the forefront of innovation. Our 150W, 250W, and 350W SSPA series delivers the power, efficiency, and reliability that modern systems demand. By leveraging advanced circuit design and rigorous testing, we have created an amplifier that not only meets current specifications but also anticipates future challenges. Whether you are upgrading an existing satellite terminal or designing the next generation of 5G-advanced hardware, our Ka band power amplifier offers the performance edge you need. Contact us today to explore how this technology can transform your project’s capabilities.
