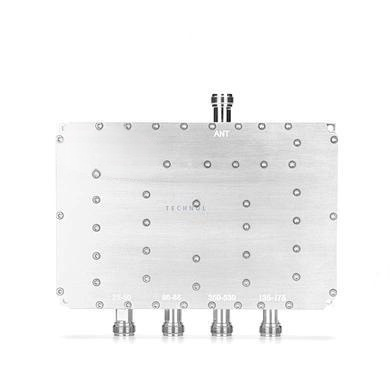

Mastering Low-Frequency Signal Management with the Low Frequency Quadplexer
nnIn the intricate world of signal processing, managing low-frequency signals often presents a formidable challenge—one that can undermine system performance and reliability. If you have ever struggled with signal interference, power loss, or environmental vulnerabilities in your RF setup, the solution is at hand. Our low frequency quadplexer is engineered to transform how you handle complex multi-band scenarios. By precisely covering four critical low-frequency bands—25-50MHz, 66-88MHz, 135-175MHz, and 350-530MHz—this device streamlines signal routing, eliminating the need for multiple separate components. It offers a single, robust unit designed to deliver pristine signal purity and unwavering stability, even in the most demanding applications. With this quadplexer, you can say goodbye to inefficient signal management and embrace a new era of streamlined, high-performance communication. The low frequency quadplexer is not just a component; it is a strategic upgrade for any system requiring top-tier low-frequency signal handling.nn
Uncompromising Performance: Why the Low Frequency Quadplexer Excels
nnAt the heart of any signal management solution lies performance. This quadplexer sets a new benchmark with specifications that speak directly to the needs of engineers and system integrators. One of the most critical metrics is insertion loss, and here, the device delivers an industry-leading figure: less than 0.35dB. This exceptionally low loss ensures that almost zero power is wasted during signal transmission, preserving signal strength and quality across all bands. Equally important is isolation, which exceeds 50dB. This high level of isolation effectively prevents any interference between the four frequency paths, allowing each signal to operate cleanly without cross-contamination. You can rely on pristine signal integrity, even when multiple bands are active simultaneously.nnFurthermore, the voltage standing wave ratio (VSWR) is held to ≤1.25, indicating a near-perfect impedance match. This ensures that signals are transmitted efficiently with minimal reflection, which can cause distortion and power loss. But performance doesn’t stop there. Even under the stress of dual 43dBm input signals, the intermodulation products are kept as low as -153dBc. This extremely low intermodulation is a testament to the device’s superior linearity, ensuring that unwanted harmonic signals do not disrupt your main communication channels. The low frequency quadplexer also boasts a robust maximum input power rating of 200W, giving it the capacity to handle strong signals without degradation.nn
Detailed Technical Specifications
nnTo provide a complete picture, the following table outlines all key parameters of the low frequency quadplexer. This structured format allows for easy comparison and verification against your specific requirements.nn| Parameter | Value |n| — | — |n| Model | External Combiner |n| Frequency Range (MHz) | 25-50, 66-88, 135-175, 350-530 |n| Insertion Loss (dB) | ≤0.35 |n| Isolation (dB) | >50 |n| VSWR (dB) | ≤1.25 |n| Intermodulation Products (dBm) | ≤-153 dBc (with 2 x 43 dBm) |n| Maximum Input Power (W) | 200 |n| Impedance (Ω) | 50 |n| Operating Temperature (°C) | -25 to +65 |n| Relative Humidity (%) | 5 ~ 95 |n| Lightning Protection (kA) | 3 kA; 10/350 μs pulse |n| Ingress Protection (IP) | IP67 |n| Connector Type | 5 PCS 4.3-10 Female |n| Color | Grey |nnThese specifications collectively demonstrate why this quadplexer is a preferred choice for professional applications that demand reliability and top-tier performance.nn
Built for the Real World: Environmental Adaptability and Protection
nnBeyond raw electrical performance, the low frequency quadplexer is engineered to survive and thrive in harsh environments. Its environmental adaptability is exceptional, with a wide operating temperature range of -25°C to +65°C and relative humidity tolerance from 5% to 95%. This means it can be deployed in outdoor telecom towers, industrial plants, or remote installations without concern for thermal or moisture extremes. But the protection does not stop there. The device is equipped with robust lightning protection rated at 3kA for a 10/350 μs pulse, safeguarding your valuable equipment from damaging surges. Combined with an IP67 ingress protection rating, the quadplexer is fully sealed against dust and capable of withstanding temporary immersion in water. These features make it ideal for use in exposed or unpredictable weather conditions, ensuring continuous operation when you need it most. Additionally, the connectors are five 4.3-10 female ports, known for their ease of use, stable connection, and excellent RF performance, simplifying installation and maintenance.nn
Conclusion: Choose the Low Frequency Quadplexer for a New Standard of Efficiency
nnIn conclusion, the low frequency quadplexer is a comprehensive solution for any professional seeking to simplify and enhance their low-frequency signal management. It delivers outstanding electrical performance—ultra-low insertion loss, high isolation, and excellent linearity—while also providing rugged environmental protection for long-term reliability. With its precise frequency coverage, this single unit replaces multiple combiners, reducing system complexity and potential failure points. The superior lightning protection and IP67 rating guarantee peace of mind in challenging outdoor settings. By choosing our low-frequency quadplexer, you are not just buying a component; you are investing in a more efficient, reliable, and future-proof communication infrastructure. Let this device open a new era of high-performance, low-frequency signal processing, making your applications easier to manage and more powerful than ever before.
