Understanding the RF Dummy Load Series: Model MOP-DL-3GHz-100W-NM(NF/MM/DM/DF)
nnIn the world of RF engineering, the reliability of test equipment and transmission systems hinges on components that can handle high power with minimal signal degradation. The MOP-DL-3GHz-100W-NM series of RF dummy loads stands out as a versatile and high-performance solution for professionals working with signals from DC to 3 GHz. Whether you are testing amplifiers, maintaining base stations, or calibrating laboratory instruments, this series delivers consistent electrical characteristics and robust construction. Designed to terminate RF signals safely and efficiently, these loads prevent reflections that could damage sensitive equipment. With a characteristic impedance of 50Ω, they align perfectly with standard RF system requirements. The series offers multiple power handling options—from 2W for low-power applications up to 200W for demanding environments—ensuring that engineers can select the ideal match for their specific needs.nn
Critical Specifications and Electrical Performance
nnTo make an informed decision, understanding the detailed technical parameters of the MOP-DL-3GHz-100W-NM series is essential. The following table summarizes the core specifications, ensuring you have all relevant data at a glance.nn
| Parameter | Value |
|---|---|
| Model | MOP-DL-3GHz-100W-NM(NF/MM/DM/DF) |
| Impedance | 50 Ω |
| Frequency Range | DC – 3 GHz |
| Power Options | 2W, 5W, 25W, 50W, 100W, 200W |
| VSWR | ≤1.2:1 |
| 3rd Order Intermodulation (PIM3) | ≤-120 dBc @ 2×33 dBm (≤-105 dBc @ 2×43 dBm) |
| 5th Order Intermodulation (PIM5) | ≤-145 dBc @ 2×33 dBm (≤-120 dBc @ 2×43 dBm) |
| Operating Temperature Range | -20°C to +55°C |
| Humidity | ≤95% |
| Connector Types | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Custom |
nn
Why Low VSWR and PIM Matter for RF Dummy Loads
nnThe electrical performance metrics of the MOP-DL-3GHz-100W-NM series directly impact signal integrity. A VSWR ≤1.2:1 across the entire frequency range ensures that almost all forward power is absorbed, minimizing reflected energy. This is crucial for accurate measurements and preventing feedback loops in transmitters. Equally important are the low intermodulation distortion values. With PIM3 as low as ≤-120 dBc at standard test levels, this RF dummy load minimizes the creation of spurious signals that can interfere with nearby channels or degrade system sensitivity. For high-power applications, the PIM3 ≤-105 dBc @ 2×43 dBm still represents excellent linearity, making these loads suitable for both laboratory use and field deployment in multi-carrier environments.nn
Connector Compatibility and Environmental Durability
nnOne of the standout features of the RF dummy load series is its strong connector compatibility. Engineers often face the challenge of matching different interface standards. This series eliminates that problem by supporting a wide array of connector types—including N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, and PL259-Male. Additionally, custom connector options are available upon request, allowing seamless integration into legacy systems or specialized test setups. This flexibility means you can standardize on one load type across multiple projects, reducing inventory complexity.nn
Operational Reliability in Harsh Conditions

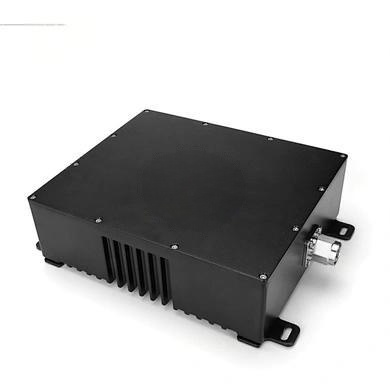

nnDesigned for both indoor and outdoor use, the RF dummy load offers an operating temperature range of -20°C to +55°C with humidity tolerance up to 95%. The product also features a robust enclosure rated IP65, providing protection against dust and water ingress. With a weight of ≤2 kg for the 100W model and ≤3 kg for the 200W version, the units are portable yet durable. The black anodized finish not only gives a professional appearance but also aids in heat dissipation. Whether mounted on a wall, placed inside a rack, or used in a portable test case, these loads maintain performance integrity even in challenging environments.nn
Practical Applications of the RF Dummy Load
nnThe RF dummy load serves as a terminal load in numerous scenarios where signal termination is critical. In communication base stations, they are used for antenna port testing without radiating signals. In RF test laboratories, they provide a known 50Ω termination for spectrum analyzers, signal generators, and power meters. Additionally, they are vital in the development and maintenance of RF power amplifiers, ensuring that test procedures do not damage the amplifier due to mismatched loads. The high PIM performance also makes them ideal for passive intermodulation (PIM) testing, a common requirement in modern cellular networks where low interference is paramount.nn
Conclusion: Choosing the Right RF Dummy Load for Your System
nnIn summary, the MOP-DL-3GHz-100W-NM series of RF dummy loads offers a comprehensive solution for professionals who demand precise signal termination, low intermodulation distortion, and robust mechanical design. With a wide range of power options, universal connector compatibility, and proven electrical specifications, this RF dummy load provides the reliability needed for both routine testing and critical system integration. Whether you are working on a 2W portable device or a 200W base station, this series delivers consistent performance across DC to 3 GHz. By investing in a high-quality RF dummy load, you protect your equipment, ensure accurate measurements, and maintain signal purity—key factors in any successful RF engineering project.
