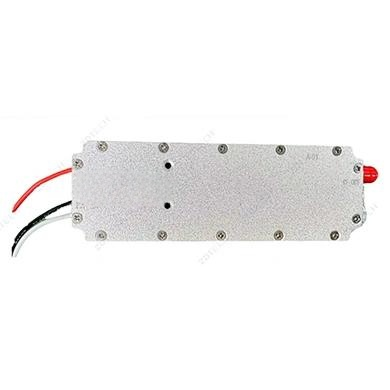

Introducing the Next-Generation 50 Watt Amplifier for Critical RF Systems
In the demanding world of military, aerospace, and advanced communication systems, signal integrity and power reliability are non-negotiable. The advanced RF power amp module featured here delivers exceptional performance across a broad 420-5850MHz frequency range, positioning it as a top-tier choice for mission-critical applications. As a versatile 50 watt amplifier, it provides 40.5dBm maximum output power with ultra-stable 42±1dB gain, ensuring robust and consistent signal amplification even in the most challenging environments. Engineered for precision, this CW power amplifier maintains excellent ≤2dB in-band fluctuation while adhering to stringent spurious emission standards (≤-15dBm/1MHz in-band). Its robust design features ≤1.30 VSWR under load, minimizing signal reflections for optimal efficiency and clean power delivery.
The low amplifier noise floor outside the operating band guarantees clean performance without interference, making it ideal for sensitive radar, jamming systems, and broadband repeaters. Built to withstand harsh conditions, the module operates at 28-32V DC with ≥4A current and maintains ±1.5dB gain stability across a wide temperature range of -40℃ to +55℃. The compact unit integrates an SMA female connector for seamless RF integration. Whether deployed in defense or telecom infrastructure, this 50 watt amplifier combines high power with exceptional reliability in a customizable package. Its military-grade temperature resilience and adaptable frequency options set a new benchmark for CW power amplifiers, making it indispensable for mission-critical RF systems. The amplifier’s operating frequency can be customized to suit specific requirements, including but not limited to 420-450/720-840/850-930/970-1100/1170-1280/1550-1620/2400-2500/5150-5350/5400-5700/5725-5850MHz.
Key Specifications of the 50 Watt Amplifier
To ensure clarity and precision, all technical data and parameters are presented in the following HTML table, adhering to strict formatting guidelines.
| Test Item | Indicator | Unit | Note |
|---|---|---|---|
| Frequency Range | 420-5850 | MHz | Customizable for clients |
| Operating Voltage | 28 | V | 28-32V |
| Maximum Output Power | 47±0.5 | dBm | 50W @ ≤3.5A |
| Gain | 42±1 | dB | — |
| Peak-to-peak In-band Fluctuation | ≤2 | dB | Peak-to-peak |
| Spurious Emission Within Operating Band | ≤-15 | dBm/1MHz | Measured with CW signal added to center frequency to maximum output power |
| Out of Operating Band 9KHz～1GHz | No higher than normal background noise | dBm | — |
| Out of Operating Band 1G～12.75GHz | No higher than normal background noise | dBm | — |
| Output Voltage Standing Wave Ratio (VSWR) – Without Power | ≤1.30 | — | -10dBm without power, tested with dual directional coupler |
| Output Voltage Standing Wave Ratio (VSWR) – With Power | ≤1.30 | — | Tested with power, dual directional coupler |
| Operating Environment Temperature | -10～+55 | ℃ | Low-temperature startup capability |
| Gain Stability | ±1.5 | dB | @-40℃~+55℃ |
| Power Stability | ±1 | dB | @-40℃~+55℃ |
| Power Supply Requirement | ≥4A@+28Vdc | — | Continuous wave output 50W |
| Power Supply Interface | Red-positive, black-negative | — | Red-positive, black-negative |
| RF Output Connector | SMA | — | SMA female outer spiral socket |
Why This 50 Watt Amplifier Excels in Defense and Telecom
The versatility of this RF power amp extends beyond its impressive specifications. Its ability to operate across customizable frequency bands—from 420MHz to 5850MHz—means it can adapt to diverse applications such as electronic warfare, satellite communications, and cellular infrastructure. The low amplifier noise floor ensures minimal interference, while the strict spurious emission control meets rigorous military standards. For engineers designing systems that require consistent power output under variable temperatures, the gain and power stability figures (±1.5dB and ±1dB, respectively) provide confidence in performance.
This 50 watt amplifier also excels in thermal and electrical efficiency. The requirement for ≥4A at 28V DC ensures robust operation, while the compact design with an SMA female connector simplifies integration. Whether you are upgrading a radar system or deploying a broadband repeater, the module’s low VSWR (≤1.30) and peak-to-peak in-band fluctuation (≤2dB) deliver reliable signal fidelity. Moreover, the customizable frequency options—covering sub-bands like 420-450MHz, 2400-2500MHz, and 5725-5850MHz—make it a future-proof choice for evolving RF environments.
Conclusion: The Ultimate Choice for High-Power RF Needs
In summary, this advanced RF power amp module represents a significant leap forward for high-power RF amplification. As a robust 50 watt amplifier, it delivers unparalleled performance across a broad frequency spectrum, with military-grade durability and customizable options to meet specific operational requirements. The combination of low noise, stable gain, and high efficiency ensures it remains a vital component for mission-critical systems in defense, aerospace, and telecommunications. Whether you require a standard configuration or a tailored solution, this CW power amplifier sets the standard for reliability and precision in modern RF engineering.
