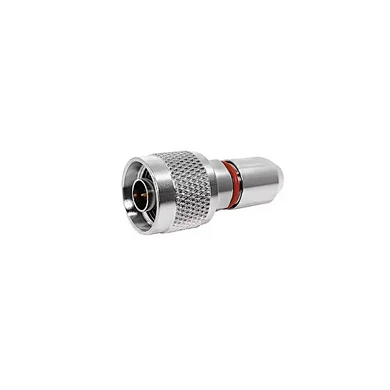

Unlocking Reliable Signal Transmission: The N-Male RF Connector for 1/4 Feeder Cables
nnIn the demanding world of telecommunications and RF engineering, every connection point is a potential source of signal loss or interference. The N-Male RF connector, specifically engineered for 1/4 feeder cables, stands as a critical component designed to maintain signal integrity from the base station to the antenna. Operating with a characteristic impedance of 50Ω across a frequency range from DC to 3GHz, this connector provides the robust, low-loss interface required for modern communication infrastructure. Whether you are deploying a new 4G/LTE site or upgrading legacy equipment, understanding the capabilities of this specialized connector is essential for achieving optimal network performance. Its design prioritizes both electrical efficiency and mechanical durability, ensuring consistent operation in the most challenging outdoor and indoor environments.nn
Exceptional Electrical Performance and the N-Male RF Connector
nnThe true value of a high-quality N-Male RF connector lies in its measurable electrical characteristics. This connector delivers industry-leading performance metrics that directly translate to cleaner signals and reduced power waste. The very low Voltage Standing Wave Ratio (VSWR) of ≤1.20@DC-3.0GHz indicates that almost all transmitted power is passed through the connector with minimal reflection back toward the source. Simultaneously, an insertion loss of ≤0.10dB@DC-3GHz ensures that signal strength is preserved across the entire cable run. For modern, interference-sensitive systems, the Passive Intermodulation (PIM) rating of ≤-160dBc@2×43dBm is a standout feature. This low PIM level dramatically reduces the creation of unwanted spurious signals that can degrade receiver sensitivity and overall network capacity. The connector also handles significant electrical stress with a dielectric strength of 2500V rms and a working voltage of 1400V rms, backed by an insulation resistance of ≥10000MΩ, ensuring safety and reliability over long periods.nn
Critical Specifications for Engineers and Installers
nnTo guarantee these performance levels, every component of the connector is precision-engineered. Below are the detailed specifications that define this N-Male RF connector.nn
Mechanical and Environmental Robustness
nnBeyond raw electrical data, the N-Male RF connector is built to endure. It features a durability rating of ≥500 mating cycles, ensuring that the connector can withstand repeated installation, maintenance, and reconfiguration without degradation. Its material selection is deliberate: the center and outer contacts are tin-bronze with a silver-plated finish to maximize conductivity and resist corrosion, while the body is brass with a silver-plated coating for strength and RF performance. The dielectric is made from PTFE for its excellent high-frequency stability, and the gasket is silicon rubber to provide a weatherproof seal. The nut, finished in brass with nickel plating, allows for secure, torque-controlled tightening. This construction supports an operating temperature range of -40℃ to +85℃ and full RoHS compliance, making it suitable for deployment in diverse climates and regulatory environments.nn
| Parameter | Specification |
|---|---|
| Connector Type | N-Male |
| Cable Compatibility | 1/4 Feeder Cable |
| Impedance | 50 Ohm |
| Frequency Range | DC – 3GHz |
| Insulation Resistance | ≥10000 MOhm |
| Contact Resistance (Center / Outer) |
≤5 MOhm / ≤1.0 MOhm |
| Dielectric Strength | 2500V rms |
| Working Voltage | 1400V rms |
| Insertion Loss @ DC-3GHz | ≤0.10 dB |
| VSWR @ DC-3.0GHz | ≤1.20 |
| PIM (2x43dBm) | ≤-160 dBc |
| Durability (Mating Cycles) | ≥500 |
| Temperature Range | -40℃ ~ +85℃ |
| RoHS Compliant | Yes |
nn
Material Integrity for Long-Term Reliability
nnThe performance of an N-Male RF connector is only as good as the materials from which it is made. This connector uses a carefully chosen combination of metals and polymers to ensure both high-frequency signal purity and long-term physical resilience. The silver plating on critical conductive parts minimizes surface resistance and prevents oxidation, which is a common cause of performance drift over time. The use of PTFE as a dielectric material ensures consistent electrical properties across the entire frequency and temperature range, while the silicon rubber gasket provides a robust environmental seal against moisture and dust. The nickel-plated brass nut offers excellent corrosion resistance and provides the mechanical strength needed for secure attachment and repeated use in the field.nn
Conclusion: A Foundation for Superior Network Connectivity
nnFor any RF engineer or telecommunications professional seeking to build or maintain a high-performance network, the choice of connector is non-negotiable. This N-Male RF connector for 1/4 feeder cables consistently delivers the electrical stability, low PIM, and mechanical durability required for critical applications in base stations and antenna systems. From its stringent electrical thresholds to its corrosion-resistant construction and broad operating temperature window, every aspect of its design serves a single purpose: to ensure that your signal remains strong, clean, and reliable. By integrating this connector into your infrastructure, you are not just making a connection—you are investing in the long-term integrity and performance of your entire communication system.
