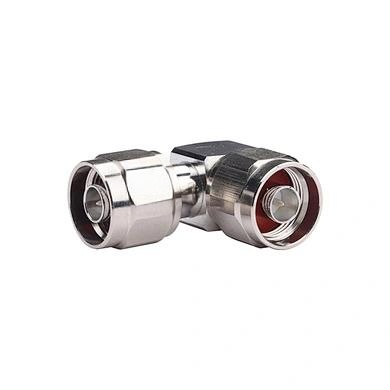

Precision Signal Routing with the N Type Right Angle Male Connector
nn
In the world of radio frequency (RF) engineering, space constraints and signal integrity are often at odds. Engineers working within tight enclosures, dense antenna arrays, or intricate test setups need components that can navigate physical obstacles without degrading performance. Enter the precision-engineered N type right angle male connector from MOP. This professional-grade RF adapter is designed to provide superior signal routing capabilities exactly where space is at a premium. By combining a compact 90° profile with exceptional electrical characteristics, this connector is not just a cable accessory; it is a critical solution for maintaining signal purity in demanding environments.
nn
The core advantage of this N type right angle male connector lies in its ability to preserve a 50Ω impedance match with ultra-low VSWR (Voltage Standing Wave Ratio). Traditional straight connectors can force cables into sharp bends, creating impedance mismatches and signal reflections. This right-angle design eliminates that problem, allowing for clean, efficient cable management while ensuring that your RF signal travels with minimal loss. Whether you are working on a cellular base station, a radar system, or a sensitive test bench, this connector acts as a reliable bridge between your cable and your equipment.
nn
Built for Robust and Reliable Performance
nn
Durability is a non-negotiable requirement in the field of RF connectivity. The MOP N type right angle male connector is constructed using military-spec materials that withstand the rigors of both permanent installations and portable test equipment. The core components feature gold-plated brass contacts, which provide excellent conductivity and corrosion resistance. The outer body is treated with a corrosion-resistant nickel plating, offering robust protection against moisture, temperature fluctuations, and physical wear. This construction ensures that the connector maintains its low insertion loss and high shielding effectiveness even in harsh outdoor or industrial environments.
nn
Versatile Applications Across Industries
nn
As a versatile RF adapter, this connector is engineered to excel in a wide range of applications. Its compact size and right-angle configuration make it particularly valuable for:
n
- n
- Cellular Base Station Antenna Arrays: Efficiently route cables in dense, multi-antenna systems without creating sharp bends that degrade signal quality.
- Test & Measurement Equipment: Ideal for use with spectrum analyzers and network analyzers where space on the front panel is limited and cable strain relief is critical.
- Radar and Microwave Radio Links: Provides a vibration-resistant connection that maintains signal integrity in dynamic environments.
- Distributed Antenna Systems (DAS): Simplifies installation in ceilings, closets, and other confined spaces where straight connectors are impractical.
n
n
n
n
nn
This N type right angle male connector is fully compatible with all standard N-series interfaces. It functions as both a high-precision RF adapter and a robust permanent connector. The threaded coupling mechanism ensures a tight, vibration-resistant connection that will not loosen over time, while the hex-shaped housing allows for easy tool-free installation by hand or with a standard wrench. Trusted by RF engineers globally, this connector combines aerospace-grade manufacturing with the practical design of a professional RF adapter, making it the preferred choice for military and aerospace communication systems, broadcast transmission equipment, industrial IoT sensor networks, and wireless backhaul infrastructure.
nn
N Type Right Angle Male Connector Technical Specifications
nn
To ensure that this component meets your exacting standards, all critical performance parameters are detailed below. The specifications confirm that this connector delivers the precision and reliability required for high-frequency applications.
nn
| Parameter | Specification |
|---|---|
| Interface Model | MOP-AD-NM/NMR |
| Mounting Angle | Right Angle |
| Impedance | 50 Ω |
| Frequency Range | DC ~ 3 GHz |
| 3rd Order Intermodulation (IM3) | ≤ -155 dBc @ 2×20W |
| Inner Contact Resistance | ≤ 1.0 mΩ |
| Outer Contact Resistance | ≤ 0.4 mΩ |
| Insulation Resistance | ≥ 5000 MΩ·km |
| Dielectric Withstanding Voltage | ≥ 2500 V RMS, 50Hz, at sea level |
| VSWR (Voltage Standing Wave Ratio) | ≤ 1.06 |
| Insertion Loss | ≤ 0.08 dB |
nn
| Material & Plating | Specification |
|---|---|
| Inner Contact | Brass alloy, plated with silver |
| Outer Contact | Brass alloy, plated with Tri-Alloy |
| Insulator | PTFE (Polytetrafluoroethylene) |
nn
| Environmental Properties | Specification |
|---|---|
| Temperature Range | -40°C to +85°C |
| Waterproof Rating | IP67 |
| Compliance | 2011/65/EU (RoHS) |
nn
Conclusion: The Ultimate RF Right Angle Cable Connector
nn
When your RF system demands both high performance and efficient space utilization, the N type right angle male connector from MOP is the definitive solution. Its low VSWR, wide frequency range, and rugged construction make it an indispensable tool for engineers who cannot afford signal degradation. Whether you are designing a next-generation antenna array or maintaining critical communication links, this connector ensures that your signal paths remain clean, reliable, and professional. By choosing this precision RF adapter, you are investing in a component that stands up to the toughest conditions while simplifying your installation process. For any application requiring a trusted, high-quality RF right angle cable connector, the MOP N type right angle male connector is the proven choice.
