Unleashing Performance with the 50W 1.5G High Gain Antenna

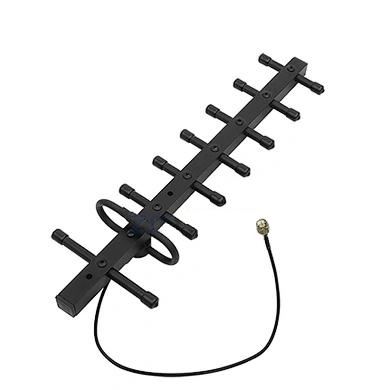

In the demanding world of satellite navigation and RF communication, signal integrity is paramount. The 50W 1.5G high gain antenna (Model MOP-DYA-1.5G) stands as a robust solution for professionals who require reliable, long-range connectivity. This directional outdoor antenna is engineered to deliver superior performance in GNSS, GPS, and various outdoor communication systems, making it an indispensable tool for applications where every decibel counts. Whether you are enhancing a base station or deploying a critical navigation link, understanding its capabilities is the first step toward optimizing your network.
This antenna operates within the critical 1570-1620MHz frequency range, employing vertical polarization to ensure consistent signal capture. What sets it apart is its remarkable 10±1dBi gain combined with a front-to-back ratio of at least 15dB. This combination effectively suppresses rearward interference, focusing energy where it is needed most. The result is a significant boost in signal stability and overall system performance, even in environments with moderate RF clutter. The antenna’s design prioritizes both efficiency and durability, making it a reliable choice for fixed outdoor installations.
Technical Specifications of the 50W 1.5G High Gain Antenna
To fully appreciate the engineering behind this antenna, a detailed look at its electrical and mechanical parameters is essential. The following table outlines the core specifications that define its operational excellence.
| Electrical Specifications | Value |
|---|---|
| Model Number | MOP-DYA-1.5G |
| Frequency Range | 1570 – 1620 MHz |
| Gain | 10 ± 1 dBi |
| Polarization | Vertical |
| VSWR | ≤ 1.5 |
| Front-to-Back Ratio | ≥ 15 dB |
| Maximum Input Power | 50 W |
| Impedance | 50 Ω |
| Lightning Protection | DC Ground |
Mechanical and Environmental Durability
| Mechanical Specifications | Value |
|---|---|
| Connector Type | SMA Male |
| Cable Type & Length | RG58/U, 300 mm |
| Dimensions (approx.) | Custom per design |
| Effective Wind Area | ≤ 0.2 m² |
| Rated Wind Velocity | 60 m/s |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Operating Temperature | -40°C to +90°C |
| Mounting Hardware | φ35 mm to φ50 mm (pole mount) |
Why Choose This High Gain Antenna for Your Outdoor Network?
The 50W 1.5G high gain antenna is not just about raw numbers; it represents a comprehensive approach to outdoor RF reliability. Its aluminum reflector and ABS radome provide excellent protection against environmental factors such as UV radiation, rain, and physical shock. The robust design includes a rated wind velocity of 60 m/s and an effective wind area of just 0.2 m², ensuring stable performance even during severe weather. Furthermore, the DC ground lightning protection offers an essential layer of safety for your valuable equipment.
Compatibility is another strong suit. With a standard 50-ohm impedance and an SMA Male connector attached to a 300mm RG58/U cable, this antenna integrates seamlessly with a wide array of RF devices. The mounting hardware accommodates poles ranging from φ35 mm to φ50 mm, simplifying installation on existing infrastructure. For professionals seeking a durable, high-performance directional antenna that excels in satellite navigation and long-range communication, the MOP-DYA-1.5G delivers exceptional value. Its focus on suppressing interference and maximizing forward gain makes it an ideal choice for applications demanding unwavering signal fidelity.
Conclusion: Elevate Your Communication Systems
In conclusion, the 50W 1.5G high gain antenna stands out as a premier solution for demanding outdoor RF and satellite navigation environments. By combining a powerful 10dBi gain with robust mechanical construction and superior interference rejection, it ensures that your critical communication links remain stable and effective. Whether you are upgrading an existing GPS network or deploying new GNSS infrastructure, this antenna provides the reliability and performance required to achieve optimal results. Invest in the MOP-DYA-1.5G to experience the difference that professional-grade engineering makes in your wireless systems.
