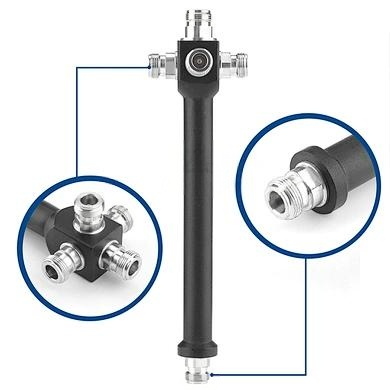

Mastering Signal Distribution with the Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W
In the ever-evolving landscape of modern communication networks, precise and reliable signal distribution is the backbone of operational efficiency. Whether you are deploying a 5G infrastructure, upgrading legacy systems, or ensuring seamless indoor coverage, the component you choose must deliver unwavering performance. The Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W stands out as a powerhouse solution, engineered to meet the rigorous demands of contemporary RF networks. With a wide frequency range, robust power handling, and exceptional linearity, this splitter is not just a component—it is a strategic asset for building high-quality communication systems.
Unmatched Frequency Versatility for Modern Networks
One of the most compelling features of this power splitter is its broad operating bandwidth, spanning from 698 MHz to 3800 MHz. This extensive frequency coverage ensures full compatibility with multiple generations of wireless technology, including 2G, 3G, 4G, LTE, and the latest 5G standards. Whether you are upgrading an early communication system or constructing a cutting-edge 5G small cell network, the Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W adapts seamlessly. This versatility eliminates the need for multiple splitters for different bands, simplifying inventory and reducing deployment costs.
Advanced Cavity Design for Optimal Performance
At the heart of this device lies an advanced passive cavity architecture. Unlike traditional microstrip splitters, the cavity design minimizes insertion loss and maximizes isolation between ports. This engineering approach ensures that the input signal is divided evenly and efficiently across four output ports, maintaining signal integrity across all paths. The result is stable and consistent signal distribution, which is critical for applications like base station antenna feeding, distributed antenna systems (DAS), and in-building coverage solutions.
Key Specifications of the Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W
To fully appreciate the capabilities of this component, it is essential to examine its technical parameters. The following table summarizes the critical electrical and mechanical specifications, ensuring you have the precise data needed for system design and integration.
| Parameter | Specification |
|---|---|
| Frequency Range | 698 – 3800 MHz |
| Split Ways | 2, 3, 4 |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.25:1 |
| Insertion Loss (dB) | ≤ 3.5 (2-way), ≤ 5.5 (3-way), ≤ 7.0 (4-way) |
| In-band Ripple (dB) | ≤ 0.3 (2-way), ≤ 0.4 (3-way), ≤ 0.5 (4-way) |
| Average Power Rating | 200 / 300 / 500 W |
| 3rd Order Intermodulation Distortion (IMD) | ≤ -155 dBc @ 2×43 dBm (2-way/3-way), ≤ -150 dBc @ 2×43 dBm (4-way) |
| Characteristic Impedance | 50 Ω |
| Connector Type | N-Female |
| Operating Temperature Range | -20°C to +55°C |
| Application Environment | Indoor or Outdoor |
| Finish | Black Plated (Corrosion Resistant) |
Exceptional Electrical Performance for Signal Purity
The electrical characteristics of this splitter are engineered to minimize signal degradation. With a Voltage Standing Wave Ratio (VSWR) of ≤1.25:1, signal reflection is kept to an absolute minimum, ensuring that energy is transmitted efficiently rather than lost as reflections. The third-order intermodulation distortion (IMD) is remarkably low at ≤-150 dBc (for the 4-way version), which effectively suppresses interference between multiple signals. This is particularly important in dense spectrum environments where multiple carriers operate simultaneously. The 50-ohm impedance ensures perfect matching with standard RF cables, antennas, and other equipment, while the average power handling of up to 300W (with variants up to 500W) guarantees robust performance even under high-power input conditions.
Durable Construction for Demanding Environments
The Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W is built to last. It features an N-type female connector, which provides a secure and stable connection while allowing for quick and easy installation. The operating temperature range of -20°C to +55°C makes it suitable for both controlled indoor environments and harsh outdoor deployments. The black plating finish not only gives it a professional appearance but also enhances corrosion resistance and durability, protecting the device from moisture and environmental wear over time.
Ideal Applications for the Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W
This power splitter is a versatile tool for a wide range of scenarios. Communication operators can rely on it for accurate signal distribution in macro base stations, small cells, and tower-mounted amplifiers. System integrators will find it indispensable for indoor distribution systems (IDS), where uniform signal coverage across multiple floors or zones is critical. Additionally, it excels in public safety networks, stadium installations, and enterprise campus networks, where reliable and consistent signal splitting is non-negotiable.
In conclusion, the Passive Divider Cavity 4 Way Power Splitter 698-3800MHz N-F 300W is more than a simple RF component—it is a high-performance solution designed to meet the exacting standards of modern telecommunications. Its broad frequency agility, low loss, high linearity, and rugged construction make it the ideal choice for any signal distribution task. By incorporating this splitter into your network design, you ensure stable, efficient, and high-quality signal transmission, ultimately delivering the seamless communication experience that users expect today.
