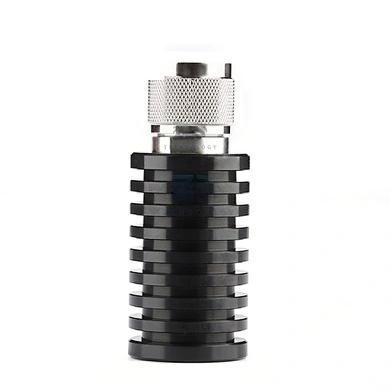

Introduction: Understanding the MOP-DL-3GHz-xxW-NM High-Power Low-PIM Load
nn
In the world of RF and telecommunications, signal integrity is paramount. The MOP-DL-3GHz-xxW-NM series represents a critical component for anyone working with high-frequency systems, offering reliable termination and excellent passive intermodulation (PIM) performance. Whether you are testing base station equipment, managing distributed antenna systems (DAS), or building out 5G infrastructure, this load ensures minimal signal reflection and consistent operation across a broad frequency spectrum. Designed to handle power levels from 2 watts up to 200 watts, it provides the flexibility needed for both lab environments and field installations. The focus keyword high-power low-PIM load is central to understanding why this component stands out: it combines robust power handling with ultra-low PIM specifications, reducing interference and maintaining signal clarity in demanding networks. In this article, we will explore its key features, technical specifications, and practical applications, helping you determine if this solution fits your system requirements.
nn
Key Specifications of the High-Power Low-PIM Load
nn
To ensure optimal performance in your RF chain, it is essential to examine the technical parameters of the MOP-DL-3GHz-xxW-NM series. The following table summarizes all critical specifications, including power options, frequency range, impedance, VSWR, PIM ratings, connector choices, and environmental limits. All data is presented in a structured format for easy reference.
nn
| Parameter | Specification |
|---|---|
| Model Series | MOP-DL-3GHz-xxW-NM (NF/MM/DM/DF) |
| Power Options (Watts) | 2, 5, 25, 50, 100, 200 |
| Frequency Range | DC – 3 GHz |
| Impedance | 50 Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 |
| Third Order Passive Intermodulation (PIM3) | ≤ -120 dBc @ 2×33 dBm ≤ -105 dBc @ 2×43 dBm |
| Fifth Order Passive Intermodulation (PIM5) | ≤ -145 dBc @ 2×33 dBm ≤ -120 dBc @ 2×43 dBm |
| Connector Types | Type N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other |
| Operating Temperature Range | -20°C to +55°C |
| Humidity | ≤ 95% |
nn
These specifications reveal a device engineered for low loss and high linearity. The VSWR of ≤1.2:1 ensures that reflected power is minimized, protecting sensitive transmitters and improving overall system efficiency. The PIM values are particularly noteworthy: with PIM3 at -120 dBc under lower power test conditions and -105 dBc under higher power, this high-power low-PIM load significantly reduces the generation of spurious signals that can degrade network performance. The availability of multiple connector types, including N and DIN variants, allows for easy integration into existing setups without requiring additional adapters.
nn
Why Choose a High-Power Low-PIM Load for Your System?
nn
Enhanced Signal Quality and Reduced Interference
nn
In modern wireless communications, passive intermodulation is a common source of interference that can lower data throughput and cause dropped calls. A high-power low-PIM load like the MOP-DL-3GHz-xxW-NM series is specifically designed to combat this issue. By using high-quality materials and precision manufacturing, this load maintains PIM levels well below industry standards, ensuring that your testing or operational environment remains clean. For example, at 2×33 dBm input power, the PIM3 remains at -120 dBc, which is excellent for applications such as multi-carrier base stations or in-building coverage systems.
nn
Broad Application Versatility
nn
With power options ranging from 2W to 200W, this series covers a wide spectrum of use cases. In laboratory settings, lower power variants (2W, 5W) are ideal for bench testing and calibration. For field deployment, the 50W, 100W, and 200W models can handle the output of medium to high-power transmitters. The frequency coverage from DC to 3 GHz means it is compatible with LTE, 5G NR sub-6 GHz bands, Wi-Fi, and many other protocols. The robust construction and temperature range of -20°C to +55°C ensure reliable operation even in harsh outdoor environments.
nn
Flexible Installation Options
nn
The choice of connectors—N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, and custom options—gives engineers the freedom to match existing cable assemblies without extra hardware. This reduces insertion loss points and potential PIM sources. The load’s compact design also allows for easy mounting in crowded racks or test boards.
nn
Conclusion: Maximize System Performance with a High-Power Low-PIM Load
nn
Selecting the right termination load is crucial for maintaining signal integrity in RF systems. The MOP-DL-3GHz-xxW-NM series delivers on all fronts: low VSWR, excellent PIM performance, broad frequency and power coverage, and multiple connector options. Whether you are a design engineer verifying a new antenna system, a field technician commissioning a site, or a lab manager running compliance tests, this high-power low-PIM load provides the reliability and precision you need. By investing in quality components that minimize interference and reflection, you ensure that your network performs at its best. Evaluate your power and connector requirements, and choose the model that fits your application—you will notice the difference in measurement accuracy and operational stability from day one.
