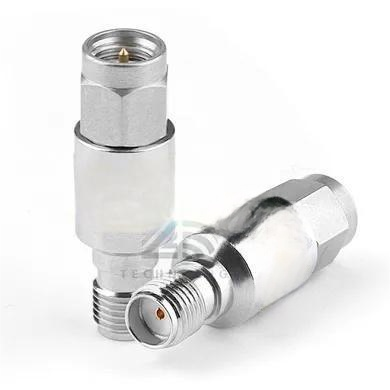

Unlocking Precision with the DC-6000MHz RF Attenuator
nnIn the demanding world of RF and microwave engineering, signal integrity is everything. Whether you’re fine-tuning a communications system, testing a high-frequency circuit, or protecting sensitive measurement equipment, the ability to precisely control signal strength is non-negotiable. Enter the DC-6000MHz RF attenuator, a compact yet powerful component designed to deliver consistent, reliable performance across a broad spectrum. This versatile device bridges the gap between laboratory-grade accuracy and field-rugged durability, making it an essential tool for engineers and technicians who need to manage signal levels with confidence.nn
Key Specifications and Performance Parameters
nnWhen selecting an RF attenuator, understanding its technical boundaries is crucial. The following table outlines the core specifications that define this attenuator’s capabilities, from its wide frequency range to its robust environmental tolerances.nn
| Parameter | Value |
|---|---|
| Name | Attenuator |
| Frequency Range | DC – 6000 MHz |
| Attenuation Value | 1 – 30 dB |
| Attenuation Tolerance | ±0.3 dB to ±1.0 dB |
| Return Loss | ≥ 19 dB |
| VSWR | ≤ 1.25 |
| Intermodulation Products | ≤ -120 dBc (with 2 x +43 dBm tones) |
| Maximum Input Power | 2 Watts |
| Operating Temperature | -40°C to +100°C |
| Relative Humidity | 5% to 95% |
| Impedance | 50 Ω |
| Dimensions | 26 x 9 mm |
| Weight | 18 grams |
| Connector Type | SMA Male to SMA Female |
| Ingress Protection | IP65 |
| Color | Black or Silver |
nn
Why This DC-6000MHz Attenuator Stands Out
nnThe focus keyword for this device is its remarkable bandwidth. From direct current all the way up to 6 GHz, this attenuator maintains a flat, predictable attenuation profile—a feat that few components achieve. The ability to dial in anywhere from 1 to 30 dB of attenuation gives you granular control over your signal chain. Whether you are reducing a strong transmitter output or balancing signal levels in a multi-antenna system, the precision is outstanding. With tolerances as tight as ±0.3 dB at lower attenuation values, you can trust that the signal you measure is the signal you get.nn
Built for Real-World Environments
nnOne of the most compelling features of this attenuator is its IP65-rated ingress protection. This means it is completely dust-tight and protected against low-pressure water jets from any direction. For field installations in radio towers, outdoor test setups, or industrial environments, this durability is a game-changer. Additionally, the wide operating temperature range from -40°C to +100°C ensures that performance remains stable whether you are in a freezing laboratory or a sun-baked outdoor antenna range.nn
Seamless Integration with SMA Connectors
nnThe industry-standard SMA Male to SMA Female connector configuration makes this attenuator incredibly easy to integrate into existing systems. You can attach it directly to the output of a signal generator, network analyzer, or power amplifier without needing adapters. The compact 26 x 9 mm body and light 18-gram weight mean it adds negligible bulk to your setup, ideal for dense rack environments or portable testing kits.nn
Low Distortion and High Linearity
nnFor engineers working with high-performance communication systems, intermodulation distortion is a critical concern. This DC-6000MHz attenuator boasts an intermodulation product specification of ≤ -120 dBc when tested with two +43 dBm tones. Such low distortion ensures that even when handling strong signals, the attenuator does not introduce spurious frequencies that could corrupt your measurements or degrade system performance. The excellent return loss (≥ 19 dB) and low VSWR (≤ 1.25) further confirm that this component is well-matched to 50-ohm systems, minimizing reflections and maximizing power transfer.nn
Conclusion
nnWhen your application demands reliable, broadband signal attenuation from DC to 6000 MHz, this attenuator delivers on every front. Its combination of precise attenuation values, rugged environmental sealing, and exceptional linearity makes it a superior choice for both laboratory and field use. The focus keyword—its wide frequency coverage paired with robust mechanical design—ensures you get consistent, repeatable results time after time. Choose this attenuator for your next RF project and experience the difference that true engineering quality makes.
