Breaking Through the Signal Boundary: The Power of Integrated Modules

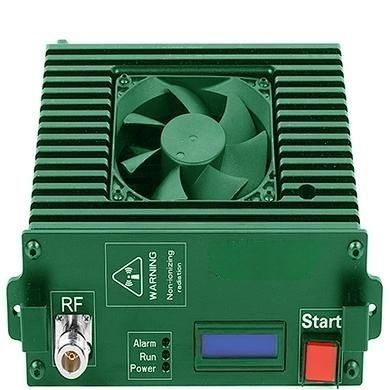

nnIn the relentless pursuit of signal excellence, we unveil the Ultra wideband 700 – 6000MHz 150W power amplifier + DDS Signal generator integrated module with heat sink and cooling fan—a groundbreaking solution that redefines the boundaries of signal processing. As a high-performance integrated module, it combines a robust 150W DDS generator with a versatile wide band signal generator, covering the ultra-wide frequency range of 700 to 6000MHz. This integrated module delivers a stable and reliable signal source, essential for scientific research, advanced communication, and industrial applications. The power output is software-adjustable from 10W to 150W, catering to diverse operational needs. Equipped with an N-F Connector, it ensures stable connections and efficient signal transmission, seamlessly integrating with other devices. An LCD display presents real-time data on frequency, power, and switch status, providing a clear overview for user control. Built-in heat sink and cooling fan guarantee stable operation across ambient temperatures of -10 to +65°C. Comprehensive monitoring and alarm functions—including over-temperature, over-current, and standing wave ratio alerts—ensure safe and reliable equipment operation. Whether for precision testing in laboratories or signal amplification in industrial settings, this integrated module is your ultimate tool for excellence, unlocking new possibilities in signal processing.nn
Product Specifications of the Integrated Module
n
| Parameter | Value | Unit | Remarks |
|---|---|---|---|
| Operating Voltage | 28 | V | 24-30V |
| Conversion Efficiency | ≥42 | % | @150W typical |
| Controllable Output Power | 10W~150W | W | Software set power level |
| ALC Power Adjustment Range | ≥30 | dB | Voltage Controlled Attenuation gain 51.76±1.0 dB |
| In-band Fluctuation | ≤2.5 | dB | Peak-to-peak |
| Spurious Emission (In Working Band) | ≤-15 | dBm/1MHz | Measured when center frequency plus CW signal to max output power |
| Spurious Emission (Out of Work Band) 9KHz~1GHz | No higher than normal noise floor | dBm | — |
| Spurious Emission (Out of Work Band) 1G~12.75GHz | Clutter | dBm | — |
| Maximum Allowable Input Power | ≥+10 | dBm | Lasts 1min without damage |
| Input VSWR | ≤1.35 | — | Add +28V, standard network output -10dBm |
| Output VSWR | ≤1.30 | — | No power, standard network output -10dBm; ≤1.35 with power, dual directional coupler test |
| Working Ambient Temperature | -10～+65 | ℃ | Low temperature can start, monitoring works normally |
| Gain Stability | ±1.5 | dB | @-40℃~+65℃ |
| Power Stability | ±1 | dB | @-40℃~+65℃ |
| Power Requirements | ≥13 | A | @+28Vdc CW output 150W |
| Power Supply Interface, Monitoring Interface | RS485 7W2 Male | — | — |
| RF Output Connector | N-F Connector | — | — |
| LCD Display | Frequency, power, switch status with 3 LED lights | — | POWER: Power indication; RUN: Running indication; ALARM: Alarm indication |
| Built-in Cooling Fan | Yes | — | Modules can be run separately |
| Physical Dimension | 355 x 180 x 90 | mm | — |
| Weight | 6.5 | Kg | — |
| Appearance (How to use) | Green integrated module with fan | — | Single or portable use |
nn
Integrated Module Settings and Monitoring Functions
nn
Amplifier Part Setting Parameters
n
| Function | Description | Remarks |
|---|---|---|
| Amplifier Switch | Turn the amplifier on or off | — |
| Alarm Switch | Enable and disable the alarm function | — |
| Downlink Power Control | Set max output power (adjustment range ≥20dB, for high, medium, low levels) | — |
| Amplifier Over Temperature Alarm | Set high temperature shutdown threshold; auto shut down above 85°C, auto restore at 65°C | — |
| Amplifier Overpower Alarm | Actual power > downlink ALC start threshold + 2dB, shuts off | — |
| Power Amplifier Standing Wave Alarm | When VSWR > 4, auto turn off | — |
| Amplifier Overcurrent Alarm | When detection current > 12A, auto shut down | — |
| Amplifier Under-Power Alarm | When detection power < 37dBm, display alarm | — |
| Amplifier Overvoltage Alarm | When voltage > 32V, auto shut down | — |
nn
Amplifier Part Query Parameters
n
| Parameter | Description | Notes |
|---|---|---|
| Amplifier Switch Status | Queries state (OFF or ON) | — |
| Downstream Output Power Level | Detects output power (range: Pomax+2 to Pomax-20); accuracy: Pout±1dB | — |
| Downward Standing Wave Ratio | Normal: 1.2; mismatched load: 4.0 | — |
| Temperature Query | Internal temperature, range: -40°C to +100°C; error: ±3°C | — |
| ALC Value Query | Displays actual set ALC value | — |
| Voltage Detection | Detects module working voltage | — |
| Current Detection | Detects module operating current | — |
nn
Signal Generator Settings
n
| Mode | Description | Details |
|---|---|---|
| Frequency Setting Mode 1 | Single frequency point within range | Accuracy: 1M; max bandwidth: 100M; max: 6G |
| Frequency Setting Mode 2 | Broadband frequency sweep mode | Set frequency, interval, step |
| Frequency Setting Mode 3 | Any 4 sub-frequency segments | Sub-segments must be incremental |
nn
Module Communication (RS485)
n
| Pin | Definition |
|---|---|
| + | 28V |
| – | GND |
| Control bit 1 | 485A |
| Control bit 2 | 485B |
nn
The Versatility of the Integrated Module
nThis integrated module is engineered for adaptability. Its software-defined settings allow precise control over power, frequency, and alarms, making it ideal for dynamic environments. Whether you need to generate specific signals for testing or amplify signals in complex systems, this device delivers consistent performance. The robust construction, including a heat sink and cooling fan, ensures longevity even under demanding conditions. With comprehensive monitoring, from over-temperature to standing wave alarms, the integrated module prioritizes safety and reliability, making it a trusted partner in any signal processing task.nn
Conclusion: Elevate Your Signal Processing with This Integrated Module
nThe Ultra wideband 700 – 6000MHz 150W power amplifier + DDS Signal generator integrated module is more than just a device—it’s a breakthrough in signal processing technology. By combining a high-power amplifier with a versatile generator, this integrated module meets the most rigorous demands of research, communication, and industry. Its user-friendly interface, robust safety features, and exceptional performance ensure that you can overcome signal boundaries with confidence. Whether in a lab or field, this integrated module is your gateway to superior signal processing, opening new frontiers in performance and reliability.
