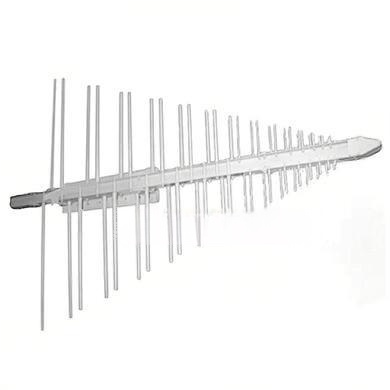

Dive Deep into the 180MHz-2000MHz Logarithmic Periodic Antenna: The Pinnacle of Wideband Performance
nnIn the rapidly evolving landscape of wireless communication, the need for robust, versatile, and reliable antenna systems has never been greater. Whether you are managing a sprawling outdoor industrial complex, setting up a critical signal monitoring post, or deploying a multi-band base station, the antenna you choose is the linchpin of system performance. Enter the 180MHz-2000MHz Logarithmic Periodic Antenna, a high-performance device meticulously engineered to conquer the complexities of wideband RF scenarios. This antenna is not merely a component; it is a comprehensive solution that excels across three critical dimensions: ultra-wideband coverage, unwavering stability, and exceptional scenario adaptability. It strikes an ideal balance between pristine signal quality and tenacious environmental resistance, making it a game-changer for demanding applications.nn
Unlocking the Trio of Core Advantages
nnThe true strength of this antenna lies in its harmonious blend of three core attributes, each addressing a fundamental challenge in RF system design.nn
The Power of Wideband Coverage: An 180-2000MHz Wideband Antenna
nAt its heart, this device functions as a premier 180-2000MHz Wideband Antenna. Its most compelling advantage is its ultra-wide frequency coverage range, spanning from 180MHz to 2000MHz. This eliminates the cumbersome and costly necessity of deploying separate, narrowband antennas for each specific frequency band. In practical terms, this means a single antenna can effortlessly support a vast array of applications, from long-range wireless communications and cellular base station coverage to spectrum monitoring and industrial telemetry. This one-device multi-frequency capability drastically reduces equipment deployment costs, minimizes physical space requirements on towers and masts, and simplifies overall system logistics. For scenarios requiring cross-frequency band signal transmission—common in industrial IoT or outdoor surveillance networks—this wideband nature is not just an advantage; it is a necessity.nn
Engineered for Performance: The Logarithmic Periodic Antenna Design
nAs a specialized Logarithmic Periodic Antenna, it leverages a unique logarithmic periodic structure to deliver exceptional signal characteristics that are both predictable and robust. The gain is impressively stable, exhibiting a wide dynamic range that gradually and consistently increases from a solid 6.2dB at 180MHz to a powerful 9.4dB at 2000MHz. The antenna maintains a high gain level of >6dBi across its entire operating spectrum, ensuring strong signal reception and transmission strength regardless of the frequency.nnThis performance is further refined by its adaptive 3dB beamwidth, which intelligently adjusts coverage from 40° to 105° depending on the frequency. At lower frequencies, the beam is wider, ensuring broad area coverage and eliminating signal blind spots. As frequency increases, the beam narrows, concentrating signal energy for more focused, longer-range communication. This dynamic behavior optimizes coverage without manual adjustments. Furthermore, a typical VSWR (Voltage Standing Wave Ratio) of 2.0, combined with a maximum power handling capacity of 100W, means signal transmission loss is minimized, power utilization is maximized, and the system maintains its integrity even in medium-to-high power RF applications.nn
Environmental Fortitude: The Hallmark of a True High-Stability Antenna
nnPerformance is only half the story; reliability in the field is what separates a good antenna from a great one. This product is the epitome of a High-Stability Antenna, designed from the ground up with materials and a structural philosophy that prioritizes longevity. Constructed from industrial-grade Alufer material, it possesses an exceptional combination of high tensile strength and superior corrosion resistance. A specialized grayish sea coating is applied to the surface, providing an additional, formidable layer of defense against the elements—from driving rain and harsh UV radiation to extreme temperature fluctuations and salt spray in coastal environments.nnThis commitment to resilience is quantified in its operating temperature range of -55°C to +75°C and a storage temperature range of -65°C to +85°C. Whether it is an outdoor base station braving a Siberian winter or equipment operating in the searing heat of an industrial foundry, this antenna is engineered to perform flawlessly. Its compact dimensions (1340mm×920mm×90mm) and board-mounted installation method simplify deployment, ensuring a low profile and robust mechanical attachment. The standard N-type socket interface facilitates seamless integration into complex RF systems, reducing the risk of failure during installation and debugging, thereby enhancing overall operational stability.nn
Technical Specifications at a Glance
nnTo provide a clear and detailed understanding of its capabilities, here are the key technical parameters:nn| Parameter | Value |n| :— | :— |n| Frequency Range | 180MHz ~ 2000MHz |n| Gain | >6dBi (Increasing from 6.2dB to 9.4dB) |n| 3dB Beamwidth | 40° ~ 105° |n| Maximum Power Handling | 100W |n| Standing Wave Ratio (VSWR) | ≤2.0 (Typical) |n| Interface Connector | N-Type Female |n| Installation Method | Board-Mounted |n| Reference Dimensions (LWH) | 1340mm × 920mm × 90mm |n| Material | Alufer with Grayish Sea Coating |n| Operating Temperature | -55°C ~ +75°C |n| Storage Temperature | -65°C ~ +85°C |nn
Conclusion
nnIn summary, the 180MHz-2000MHz Logarithmic Periodic Antenna is a masterclass in integrated design, combining the broad utility of an 180-2000MHz Wideband Antenna with the precision engineering of a Logarithmic Periodic Antenna. Its core identity as a High-Stability Antenna ensures that its impressive RF performance is not compromised by environmental stress. This device delivers a stable, efficient, and powerful signal solution perfectly suited for the most demanding applications, including wireless communication base stations, outdoor signal monitoring, and industrial-grade RF transmission. It is more than a preferred device; it is the definitive choice for professionals who require uncompromising performance and unwavering reliability in harsh real-world conditions.
