12-Port BTS Exhaust Integrated Beautification Antenna: Redefining Communication Aesthetics
nnThe relentless march of 5G technology has placed unprecedented demands on base station antennas—not just for raw performance, but for visual harmony within our cities and landscapes. Traditional infrastructure often stands out as an eyesore, a necessary evil for connectivity. Enter the 12-port BTS exhaust integrated beautification antenna. This isn’t just another piece of hardware; it’s a paradigm shift. By fusing cutting-edge radio frequency engineering with architectural discretion, this antenna sets a new benchmark for what a communication node can be. It answers the critical question of how to deploy robust 5G networks without sacrificing the visual integrity of our surroundings. With its meticulously engineered sector design and multi-layered technology stack, it delivers exceptional performance while remaining a subtle, elegant presence. This article explores how this innovative solution redefines the value of a communication antenna, proving that power and beauty can coexist seamlessly.nn
Unpacking the Technological Core: More Than Just a MIMO 4×4 Antenna
nnAt its heart, this antenna is a masterclass in efficient signal management. It operates as a sector antenna, employing a scientific sector layout to provide precise coverage of targeted areas, effectively minimizing signal blind spots and optimizing network capacity. This is critical for dense urban environments where interference and overlapping signals are common challenges. The foundation of its performance lies in its support for 4×4 MIMO (Multiple-Input Multiple-Output) technology. By transforming into a true MIMO 4×4 antenna, it utilizes multiple data streams simultaneously. This multi-input, multi-output architecture dramatically boosts data transmission rates and overall network capacity, delivering the high-speed, low-latency experience users expect from modern 5G networks.nnFurthermore, it operates as a high-performance double-polarization antenna. The horizontal and vertical dual-polarization mode significantly enhances signal stability and resilience against interference. In the complex electromagnetic environments of today, this robust design ensures that communication links remain strong and clear. Its compatibility with both 4G and 5G networks makes it a versatile sector 4G & 5G antenna, ready to handle current traffic and future network evolutions without requiring a hardware swap.nn
A Dual-Band Design for Expanded Capacity
nnThe antenna’s capabilities are further amplified by its dual-band design, which allows it to function as an efficient panel mimo dual band antenna. By operating on two distinct frequency ranges simultaneously, it effectively expands the available signal paths, enhancing both throughput and reliability. The specific configuration features a 4-port setup combined with high gain characteristics, marking it as a powerful 4 ports 5G high gain panel antenna. This combination guarantees that 5G signals remain powerful and stable, even at the edges of the cell coverage area, ensuring a consistent user experience.nn
Product Specifications and Technical Parameters
nnThe superior performance of this antenna is backed by precise engineering. Below is a detailed breakdown of its key electrical specifications.nn
Electrical Specification Table
nn
| Parameter | Beam 1 | Beam 2 | Beam 3 |
|---|---|---|---|
| Antenna Port | Port1-2 | Port3-4 | Port5-6 |
| Freq (MHz) | 698-960 | 1695-2690 | 698-960 |
| Gain (dBi) | 15 ± 1 | 16 ± 1 | 15 ± 1 |
| Horizontal Beamwidth (°) | 65 ± 10 | 65 ± 8 | 65 ± 10 |
| Vertical Beamwidth (°) | 15 ± 2 | 10 ± 2 | 15 ± 2 |
| VSWR | ≤ 1.5 | ||
| Isolation (dB) | ≥ 25 | ||
| Port Isolation (dB) | ≥ 25 (Port 1-12) | ||
| Upper Sidelobe Suppression (dB) | < -15 | ||
| Front to Back Ratio (dB) | ≥ 25 | ||
| Polarization | ±45° | ||
| Average Power Capacity (W) | ≥ 250 | ||
| PIM (dBc) | ≤ -150 | ||
| Impedance (Ω) | 50 | ||
nnNote: Additional ports for Beam 2 & 3 are configured as Port7-8, Port9-10, and Port11-12 respectively, with identical specifications.nn
Additional Performance Highlights
n- Isolation: Internal isolation between all ports is maintained at a robust ≥ 25 dB, ensuring minimal signal interference.n- PIM: The Passive Intermodulation (PIM) is meticulously controlled to ≤ -150 dBc, a critical factor for network cleanliness and data integrity.n- Average Power Capacity: Each port can handle an average power of at least 250 Watts, supporting high-power base station transmitters.nn
Aesthetics and Intelligence: The Beautification Master

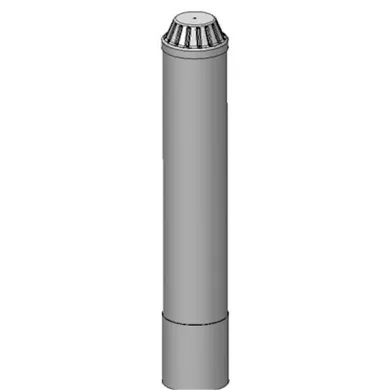

nnBeyond its technical prowess, the 12-port BTS exhaust integrated beautification antenna is a true beautification master. Its integrated design allows it to be installed in a variety of environments—from historic urban rooftops to modern commercial centers and rural landscapes—without creating visual clutter or drawing unwanted attention. The integrated exhaust structure is a brilliant piece of engineering that serves a dual purpose: it optimizes internal heat dissipation, significantly extending the antenna’s operational lifespan, while also contributing to its sleek, clean form factor.nnThis antenna effectively says goodbye to the abrupt, utilitarian look of traditional base station antennas. By focusing on both function and form, it integrates seamlessly into its surroundings. Whether mounted on an urban building or a rural base station, choosing the 12-port BTS exhaust integrated beautification antenna ensures uncompromised communication quality while simultaneously beautifying the environment. It is the definitive answer for network operators who seek to build a high-performance, future-proof 5G network without compromising on the aesthetics of the world they connect. It achieves a true win-win situation, proving that in the 5G era, communication infrastructure can be both powerful and elegant.
