Unleash Precision: The Next-Generation RF Power Module
n
In the demanding world of radio frequency (RF) engineering, the need for reliable, high-power signal generation and amplification is paramount. Whether you are developing frequency-sweep applications for advanced radar systems or conducting precision testing, the integrity of your signal chain is non-negotiable. The purpose-designed RF power module discussed here stands as a game-changing solution, unifying a high-performance power amplifier (PA) and a signal generator VCO into a single, robust unit. This integration creates a pivotal “signal generation-power amplification” core for any system operating within the 1420 to 1620 MHz band. Tailored specifically for frequency-sweep scenarios, this PA with VCO delivers professional-grade performance to meet the most rigorous demands of modern RF tasks, from high-fidelity signal transmission to detailed spectrum analysis.
n
What truly sets this RF power module apart is its unwavering commitment to signal integrity. It boasts a formidable saturated output power of 52±1dBm, equivalent to approximately 150 watts of clean RF energy. This power is delivered with exceptional consistency, featuring a gain flatness and maximum power flatness at Psat of just ±1dB across the entire working frequency range. This ensures that signal amplitude remains constant, effectively eliminating the signal distortion that can compromise system accuracy. As a specialized professional-grade component, its signal purity specs are equally impressive. At maximum power, it achieves over 10dBc of second harmonic suppression and an outstanding 60dBc of non-harmonic spurious suppression. This drastically reduces interference to downstream components, ensuring a clean, reliable signal for your most sensitive applications.
nn
Why a PA with VCO is Essential for Your RF System
n
The convergence of amplification and signal generation within a single package offers numerous advantages beyond mere space-saving. By integrating a high-quality signal generator VCO directly with a power amplifier, you eliminate the complexities of impedance matching and signal routing between two separate components. This not only simplifies your system design but also enhances overall reliability and reduces potential points of failure. The PA with VCO design is engineered for user-friendly operation and heightened safety. It provides real-time monitoring capabilities for temperature, voltage, and current, allowing for immediate status checks and proactive fault prevention. This intelligent oversight is critical for protecting both the module and your larger system, especially in harsh or unpredictable environments.
n

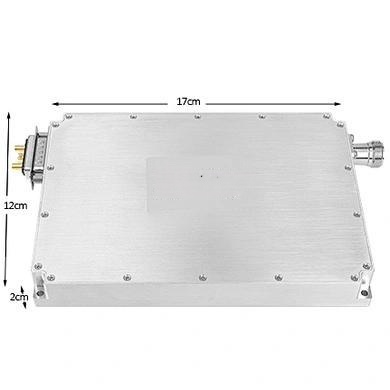

Operational flexibility is another standout feature. The module is equipped with fast TTL power-on/off control, where 0V signifies power off and 3.3V to 5V triggers power on. With a response time of less than 10 microseconds, it adapts seamlessly to scenarios requiring rapid state switching, such as pulsed radar or time-domain duplexing (TDD) communications. Furthermore, its compact dimensions—measuring just 170±0.1mm by 120±0.1mm by 20±0.1mm—and lightweight design (less than 2kg) allow it to fit into tight installation spaces, making it an ideal choice for portable test equipment, mobile communications platforms, and other space-constrained systems. Its wide operating temperature range of -40℃ to +60℃ ensures that the RF power module delivers stable, dependable performance, even in the most challenging environmental conditions.
nn
Technical Data and Specifications
n
The following table outlines the key performance parameters and physical characteristics of this advanced module. All specifications are critical for understanding how this component will integrate into and enhance your overall RF system design.
n
| Parameter | Value / Description |
|---|---|
| Frequency Range | 1420 ~ 1620 MHz |
| Input Signal Type | Frequency Sweep |
| Saturated Output Power | 52±1 dBm (~150W) |
| Flatness @ Psat | ±1 dB (Gain & Power) |
| Second Harmonics @ Max. Power | >10 dBc |
| Non-Harmonics Spurious @ Max. Power | >60 dBc |
| Monitoring | Temperature, Voltage, Current |
| Input/Output VSWR | Meets industry standards for low reflections |
| Input/Output Impedances | 50 ohm |
| Power On/Off Control | TTL 0V (off) / 3.3~5V (on) | Response <10μs |
| Operating Voltage | 28 V / 11A |
| Dimensions | 170±0.1mm x 120±0.1mm x 20±0.1mm |
| Weight | ≤2 kg |
| Operating Temperature | -40℃ to +60℃ |
nn
Conclusion: The Standard for Versatile RF Power Modules
n
Ultimately, the RF power module with its integrated signal generator VCO represents a new benchmark for versatility, performance, and reliability in the 1420-1620 MHz band. It expertly combines high-output power with exceptional signal purity, all while offering crucial monitoring and control features in a compact, rugged package. From dedicated communications systems and RF detection to advanced equipment testing, this PA with VCO is engineered to succeed where others may fail. By choosing this module, you are investing in a solution that not only meets the current demands of frequency-sweep applications but also provides the stability and precision needed for future innovations. It is the definitive choice for engineers who refuse to compromise on signal quality or system robustness.
