Mastering RF Signal Control: An In-Depth Look at the 5.75-5.9GHz High-Power Module
nnIn the demanding world of radio frequency (RF) engineering, signal integrity and power stability are non-negotiable. This high-performance module, operating in the 5.75-5.9GHz band, redefines what’s possible for standalone and portable applications. With an integrated Digital RF Modulator, robust ALC Controls, and a sophisticated amplifier, this unit simplifies complex testing, communications, and radar tasks. At its heart, this module is built for precision—delivering software-controllable output power from 20 to 150 watts while maintaining strict performance metrics.nn
The Core Components: Amplifier, Digital RF Modulator, and ALC Controls
nnWhat makes this module stand out is how its three core systems interact. The amplifier ensures a peak inband ripple of ≤2.5dB and a 1.5:1 input/output VSWR, which is critical for minimizing signal reflection and loss. Driving this is the Digital RF Modulator, a DDS-based engine that generates clean signals without needing external sources. The ALC Controls (Automatic Level Control) provide at least 10dB of voltage-controlled attenuation, dynamically adjusting power to compensate for load or input fluctuations. This trio works in concert to ensure consistent performance under varying conditions.nn
Three Flexible Frequency Modes
nnThe module supports three distinct frequency-setting modes, adaptable to any scenario:nn- Single Frequency Points: Set any precise frequency within the 5.75-5.9GHz range for direct, stable transmission.n- Wideband Sweeps: Configure sweep parameters with up to 500MHz bandwidth and 1MHz accuracy—perfect for testing filter responses or channel characteristics.n- Customizable Sub-Bands: Define up to 4 sub-frequency bands within the bandwidth, each incrementing up to 6GHz, allowing for targeted signal analysis.nnThese modes eliminate the need for separate signal generators, making the module a complete solution for field and lab use.nn
Comprehensive Protection and Safety Features
nnSafety is paramount for any high-power RF device. This module incorporates multi-layer safeguards to protect both the amplifier and Digital RF Modulator. For example, an auto-shutdown triggers at temperatures above 85°C (with automatic recovery at 65°C), when VSWR exceeds 4:1, or when current surpasses 12A. Additionally, alarms activate for voltage outside the 20-32V range or power drops below 37dBm. These features ensure long-term reliability and prevent catastrophic failures during operation.nn
Key Specifications at a Glance
nn
| Parameter | Value |
|---|---|
| Frequency Range | 5.75 – 5.9 GHz |
| Impedance | 50Ω |
| Operating Voltage | 28 – 36V (32V typ) |
| Operating Current | ≤13A (150W typ) |
| Controllable Output Power | 20 – 150W (software set) |
| ALC Power Adjustment Range | ≥10dB (voltage controlled attenuation) |
| Inband Ripple | ≤2.5dB (peak) |
| Max Allowable Input Power | ≤+10dBm (1 min without damage) |
| Input/Output VSWR | 1.5:1 (with +32V, standard network) |
| RF Connector | TYPE N [F] |
| Power Supply Connector | D-Sub 7W2 |
| Control Connector | J30J-9ZKP |
| Dimensions (LxWxH) | 156 x 122 x 58 mm (±0.5mm) |
| Weight | ≤1600g |
| Finishing | Alloy iridite |
| Operating Temperature | -25°C to +85°C |
| Heat Dissipation | Internal fan |
| Environmental | Low temperature startup, monitoring; altitude, vibration, and shock considered but untested |
nn
Real-Time Monitoring and User Interface
nnThe module provides clear, real-time feedback through its LCD display and three LED indicators (POWER, RUN, ALARM). The LCD shows frequency, power, and switching status, while the ALC Controls attenuation data is also visible. Users can manage the amplifier on/off switch, enable or block alarms via the alarm switch, and adjust downstream power settings (with ≥10dB range) through software. Additional alarms include temperature, VSWR, power overflows, and under-voltage events, all of which can be queried for diagnostics.nn
Practical Applications and Benefits

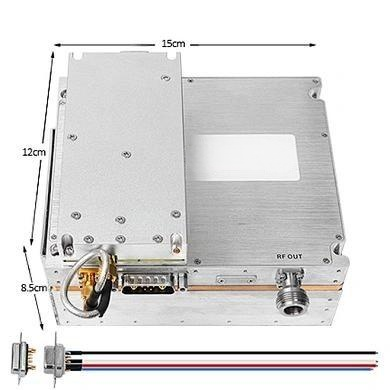

nnThis module is designed for communications, radar systems, and RF testing, where reliability and precision are essential. Its compact form factor (156x122x58mm) and lightweight build (≤1600g) make it ideal for portable setups. The integrated fan keeps it cool even under full load, and the alloy iridite finish ensures durability in harsh environments. For engineers and technicians, the Digital RF Modulator simplifies test setups by eliminating external sources, while the ALC Controls and amplifier ensure stable output across temperature and load variations.nn
Conclusion: A Robust Solution for Advanced RF Needs
nnIn summary, this 5.75-5.9GHz module is a standalone powerhouse that brings together an efficient amplifier, a precise Digital RF Modulator, and adaptive ALC Controls. Whether you need single-point transmission, wideband sweeps, or sub-band operation, its flexible modes and comprehensive protection systems deliver consistent, high-quality results. For professionals seeking a reliable, all-in-one RF solution, this module offers the performance and control required for modern communications, radar, and testing applications.
