Introduction: The Critical Role of Precision RF Power Management
In the fast-evolving landscape of modern wireless communication, maintaining system performance, reliability, and safety hinges on accurate radio frequency (RF) monitoring and robust power management. Engineers and system integrators face constant challenges: how to optimize signal integrity, prevent thermal damage, and ensure seamless integration with complex RF chains. This is where the MOPTECH data acquisition RF power amplifier steps in as a specialized solution, designed to meet the rigorous demands of advanced communication systems. This article explores the key features, technical specifications, and operational benefits of this rf power module, providing a comprehensive guide for professionals seeking reliable RF power solutions.
Understanding the RF Power Module Interface and Communication
The rf power module is engineered for versatility, featuring a 6-port interface that supports both power delivery and monitoring. This multi-functional design simplifies integration into existing systems, enabling efficient data exchange and control. The ports are logically assigned to distinct roles: PIN 1 and PIN 4 handle RS485 serial communication (designated as RS485A and RS485B), allowing for easy configuration and status retrieval. PIN 5 provides a stable ground reference (GND), while PIN 6 supplies DC +28V for the RF power amplifier circuitry. Additionally, PIN 2 and PIN 3 support low-level and high-level enable functions, respectively, giving operators flexible control over module activation.

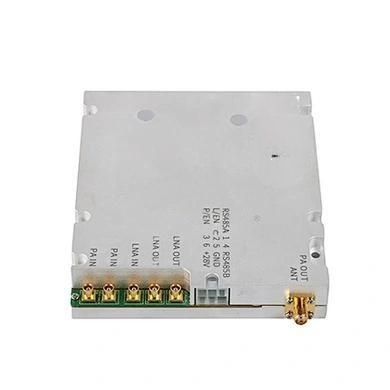

To further enhance connectivity, the module uses high-quality connectors. A single SMA-50KFD connector is used for the PA-OUT port, ensuring stable RF signal output even in high-power scenarios. Five MCX connectors handle PA-IN, LNA-OUT, and LNA-IN ports, enabling easy connection to low-noise amplifiers and power amplifiers for building flexible RF links. This thoughtful design reduces signal loss and simplifies assembly, making the module suitable for both lab prototyping and field deployment.
Safety and Protection Mechanisms: Ensuring Long-Term Reliability
Thermal Protection and Automatic Recovery
Temperature management is a top priority for any high-performance RF power amplifier. The MOPTECH module includes a built-in temperature protection mechanism that automatically monitors internal heat levels. If the temperature exceeds the alarm threshold of +85°C, the RF power amplifier automatically shuts off the PA section, preventing permanent damage from overheating. Once the temperature drops to a safe +65°C, the PA re-enables without manual intervention. This cycle ensures continuous operation within safe thermal limits, reducing downtime and maintenance costs.
Over-Power and Reverse Power Detection
Protecting downstream equipment from excessive power is equally critical. The module triggers an over-power alarm when output power exceeds Po + 2dB. This safeguard helps prevent signal distortion and damage to connected devices. Furthermore, accurate reverse power detection covers a range greater than 20dBm with a detection accuracy of less than ±2dBm. By monitoring reverse power, the system can identify abnormal conditions such as matching network failures, allowing for prompt corrective action. Temperature detection is also precise, covering 0°C to +85°C with an accuracy of less than ±3°C, providing reliable data for thermal management.
Detailed Technical Specifications and Performance Parameters
To help you evaluate the capabilities of this rf power module for your specific application, all key specifications are presented in the table below. This structured format makes it easy to compare transmitter and receiver channels, power levels, and other critical metrics.
| Parameter | Transmitter Channel (PA) | Receiver Channel (LNA) |
|---|---|---|
| Working Frequency | 791–821 MHz | 832–862 MHz |
| Saturated Power Output | 43 ± 1 dBm | -10 ± 1 dBm |
| Gain | 50 ± 1 dB | 25 ± 1 dB |
| Gain Adjustment Range | ≥25 dB | ≥25 dB |
| Gain Adjustment Step | 1 dB | 1 dB |
| ALC Automatic Level Control | ≥10 dB | — |
| In-band Flatness | ≤ 2.0 dB | ≤ 2.0 dB |
| ACPR | ≤ -45 dBc | — |
| EVM | ≤ 5% | — |
| Noise Figure | — | ≤ 1.8 dB |
| Maximum Lossless Input | 0 dBm | -10 dBm |
| Out-of-band Spurs (9 kHz–1 GHz) | ≤ -36 dBm/30 kHz | — |
| Out-of-band Spurs (1 GHz–12.75 GHz) | ≤ -30 dBm/30 kHz | — |
| VSWR | ≤ 1.5 | — |
| Working Current / Voltage | ≤ 3.5 A / DC +28 V | — |
| Working Temperature | -25 to +55°C | — |
RF Port and Connector Details
The module features specific RF ports and connectors to meet the needs of diverse applications. The following table summarizes the connector types and monitoring interface configuration:
| Parameter | Details |
|---|---|
| RF Ports | PA IN, LNA IN, MCX-KHD for LNA OUT; SMA-KHD for PA OUT |
| Connector Type | 5569 Connector, Pitch 4.2 mm, Bent Pin Block 2×3 PIN |
| Monitoring Interface (Pin Assignments) | PIN 1: RS485A, PIN 4: RS485B; PIN 2: L/EN (empty); PIN 3: P/EN (empty); PIN 5: GND; PIN 6: +28V |
| Type of Monitoring | RS485 monitoring protocol, baud rate 9600/19200 optional (factory default 19200) |
| Amplifier Size | 130 x 110 x 21 mm |
Conclusion: Why Choose the MOPTECH RF Power Module?
The MOPTECH data acquisition RF power amplifier stands out as a robust solution for modern wireless systems, combining precision monitoring, comprehensive protection, and flexible connectivity. Its intelligent thermal and power management features ensure safe operation under demanding conditions, while the detailed parameter tables above clearly demonstrate its high performance across transmitter and receiver channels. Whether you are designing a cellular base station, a repeater system, or a test setup, this rf power module offers the reliability and accuracy needed to maintain system integrity. By integrating advanced RS485 communication and a wide range of gain adjustment, it simplifies configuration and reduces deployment time. For engineers seeking a dependable RF power amplifier that balances performance with safety, the MOPTECH module is a compelling choice.
