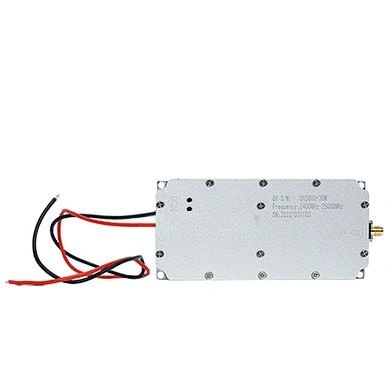

30W Power Amplifier with VCO Signal Source Module: Model MOP-PA-2400/2500M-30W
nn
In the world of high-frequency RF engineering, the need for reliable, high-power amplification coupled with precise signal generation is paramount. The MOP-PA-2400/2500M-30W module is a robust, all-in-one solution designed to meet these demands. This compact powerhouse combines a 30-watt linear amplifier with a built-in Voltage Controlled Oscillator (VCO) signal source, perfect for applications ranging from industrial heating to advanced communication systems. Let’s dive into its exceptional capabilities and why it stands out in the crowded RF module market.
nn
At its core, this module delivers consistent, high-gain performance across the 2400-2500 MHz frequency band, making it ideal for ISM band applications. Whether you’re developing long-range Wi-Fi systems, building custom RF generators, or working on test equipment, the MOP-PA series offers the reliability and precision engineers crave. The integrated high-speed noise modulation signal source adds another layer of utility, enabling rapid signal changes without external component clutter.
nn
Key Technical Specifications and Parameters
nn
To fully appreciate the module’s capabilities, we must examine its technical specifications in detail. The following table outlines all critical parameters, ensuring clarity and precision for design and integration purposes.
nn
| Test Item | Indicator | Remarks |
|---|---|---|
| PA Frequency | 2400-2500 MHz | Bandwidth range: 100 MHz |
| Maximum Output Power | 45 ± 0.5 dBm | ~31.6W; last for 1 min without damage |
| Operating Voltage | 28V | Range: 24-28V |
| Operating Current | 2.3A | Typical at 30W output |
| In-Band Fluctuation | ±1 dB | Across the full band |
| Gain | 45 ± 0.5 dB | Peak to peak |
| Input/Output VSWR | ≤1.5 | Voltage standing wave ratio |
| Power Stability | ±1 dB | @ -20℃ to +85℃ |
| RF Output Connector | SMA-50KFD | Standard SMA female |
| Operating Temperature | -20℃ to +85℃ | Full performance range |
| Module Dimension | 119 x 50 x 16 mm | Compact, lightweight |
| Module Protection | Over-temperature protection, standing wave protection | Safeguards against faults |
| Control Switch (feedthrough capacitor) | 3.3V/5V: ON, 0V: OFF | TTL/CMOS compatible |
| Input Signal Source | Built-in high-speed noise modulation signal source | VCO based |
| Power Supply Input (feedthrough capacitor) | VCC +28V; GND | Voltage supply |
nn
Unmatched Stability and Protection
nn
One of the most impressive aspects of this 30W power amplifier with VCO signal source module is its robust stability across extreme temperature ranges. From -20℃ to +85℃, the power output holds within ±1 dB, ensuring consistent performance in harsh environments. This is critical for outdoor installations or industrial settings where temperature fluctuations are common.
nn
Additionally, the module incorporates intelligent protection mechanisms. Over-temperature protection automatically shuts down the amplifier if internal temperatures exceed safe limits, preventing damage. Standing wave protection safeguards against mismatched loads, which can cause reflection damage in high-power systems. These features extend the lifespan of the module and reduce maintenance costs.
nn
Integration and Control Flexibility
nn
The module’s control interface is designed for seamless integration into larger systems. The feedthrough capacitor-based control switch accepts standard TTL/CMOS logic levels: 3.3V or 5V turns the amplifier ON, while 0V turns it OFF. This makes it easy to interface with microcontrollers, FPGAs, or simple logic circuits. The built-in VCO signal source eliminates the need for external oscillators, simplifying design and reducing part count.
nn
For engineers looking to streamline their RF front-end, this all-in-one approach saves space and development time. The compact 119 x 50 x 16 mm form factor fits neatly into enclosures or test benches. With an SMA-50KFD RF output connector, it integrates quickly with standard coaxial cabling and antennas.
nn
Conclusion
nn
In summary, the MOP-PA-2400/2500M-30W is a compelling choice for anyone needing a 30W power amplifier with VCO signal source module. Its high gain, stable power output, and protective features make it a reliable workhorse for 2.4 GHz ISM band applications. Whether you’re building a custom RF generator, upgrading a communication system, or prototyping new technology, this module delivers performance and simplicity in one package. With its clear specifications and user-friendly control, it stands as a testament to thoughtful RF design.
