Unleashing the Power of the Ka Band: A Deep Dive into High-Frequency Amplification
nnThe modern world of communication and radar technology is rapidly evolving, demanding ever-higher frequencies and greater bandwidths. At the heart of this revolution lies the Ka band, a high-frequency spectrum that is transforming how we connect, observe, and defend. When you require robust signal amplification in this demanding environment, understanding the capabilities of a specialized Ka band 40dB SSPA is crucial. This article explores the fundamental characteristics of the Ka band and how a state-of-the-art solid-state power amplifier (SSPA) can meet the stringent requirements of advanced applications.nnThe Ka band 40dB SSPAoperating within the 29-31GHz range represents a pinnacle of RF engineering. It is a high-frequency, broadband amplifier designed to serve as a cornerstone for satellite communications, advanced radar systems, and next-generation high-speed wireless networks. Its basic operational spectrum spans from 26.5GHz to 40GHz, with wavelengths ranging from approximately 7.5mm to 11.3mm. This frequency band is typically segmented into uplink frequencies (27.5GHz to 31GHz) and downlink frequencies (17.7GHz to 21.2GHz).nnThe Ka band’s primary advantages are its high operating frequency and exceptionally wide bandwidth, making it ideal for supporting high-speed data transmission required by high-throughput satellites and 5G/6G networks. However, these benefits come with inherent challenges. The signals have weaker penetration abilities compared to lower frequency bands and are more susceptible to atmospheric conditions, most notably rain attenuation. Despite these propagation losses, the Ka band remains indispensable in modern communications and radar technology due to its unmatched bandwidth and the ability to use smaller antenna dishes. As the demand for data soars, the application prospects for the Ka band—and the amplifiers that power it—are set to expand dramatically.nn

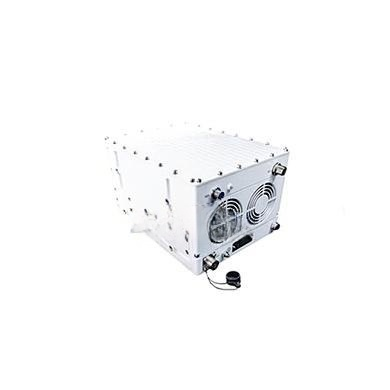

The 10W Ka Band SSPA: A Military-Grade Solution
nnTo address the specific needs of this challenging frequency range, we have developed a high-stability, 10-watt Ka band 40dB SSPA. This device is not merely a component; it is a high-performance system designed for reliability and precision. The Ka-band 10 Watt Solid State Power Amplifier (SSPA) with adjustable gain is engineered to deliver 10 watts (40 dBm) of saturated output power with excellent linearity and efficiency, earning its classification as a military-grade amplifier. Its design ensures it can withstand the rigorous demands of mission-critical applications.nn
Exceptional Signal Purity and Stability
nnWhat truly sets this amplifier apart is its focus on signal integrity. The low phase noise design ensures that spurious signals are suppressed to be 60 dB lower than the main signal, guaranteeing the purity of the output. This is critical for preventing interference in sensitive communication links. Furthermore, the amplifier demonstrates exceptional long-term stability, with gain changes not exceeding ±0.5 dB over a 24-hour period. This ensures consistent, reliable operation without the need for constant recalibration. The third-order intermodulation distortion (IM3) is also an impressive -25 dBc relative to the main signal, indicating that the device maintains excellent linearity. This low distortion and phase noise ensure that the signal maintains high clarity and stability, even under full power.nn
Key Specifications of the Ka Band High-Power SSPA
nnBelow are the critical technical parameters that define the performance and capabilities of this amplifier, presented in a clear format for easy reference.nn
| Parameter | Value |
|---|---|
| Output Frequency | 29-31 GHz |
| Input Frequency | S band (optional) |
| Rated Power | +40 dBm / 10 W |
| Gain Adjustment | 0-25 dB (step 0.1 dB) |
| Gain Flatness | 0.5 dB P-P |
| Spurious | ≤ -60 dBc |
| Harmonics | ≤ -60 dBc |
| Gain Stability | ±0.5 dB / 24h |
| IM3 | -25 dBc |
| Noise Power Density | ≤ -135 dBW/4kHz |
| Phase Noise | ≤ -63 dBc/Hz @ 100 Hz ≤ -73 dBc/Hz @ 1 kHz ≤ -83 dBc/Hz @ 10 kHz |
| Power Supply | +24 VDC |
| Power Consumption | 80 W |
nn
Physical and Interface Design
nnThe amplifier is designed for real-world deployment, featuring a compact and robust mechanical structure.nn
| Parameter | Value |
|---|---|
| Dimensions | 210 x 160 x 100 mm |
| Weight | 3.9 kg |
| RF Connectors | Input: N / SMA (optional) Output: WR28 / BJ320 |
| Communication Interface | LAN / RS485 / RS422 / RS232 (optional) |
| Cooling | Forced Air Cooling |
nn
Conclusion
nnIn conclusion, the Ka band 40dB SSPA is a critical enabler for the next generation of high-frequency systems. Its combination of high output power, precise digital gain adjustment, and exceptional signal purity—characterized by low spurious, low harmonics, and low phase noise—makes it an ideal choice for the most demanding applications. Whether deployed in satellite communications, advanced radar ecosystems, or high-frequency wireless backhaul networks, this military-grade amplifier provides the performance and reliability required to overcome the challenges of the Ka band, including rain attenuation and propagation loss. Its compact design and versatile interface options ensure it can be seamlessly integrated into complex systems, delivering the power and clarity needed for the future of wireless technology.
