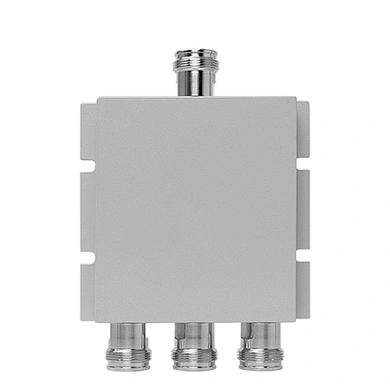

Optimizing Signal Distribution with the MOP-MPS-738-50-XMF: A Deep Dive into Performance and Reliability
nn
In the demanding world of RF communications, the quality of your signal distribution chain is the bedrock of network performance. Whether you are enhancing coverage for a bustling stadium, a sprawling corporate campus, or a high-density urban environment, the components you choose must balance precision, durability, and efficiency. The MOP-MPS-738-50-XMF stands as a robust solution designed to meet these exacting standards, offering versatile splitting capabilities across a remarkably wide frequency range. This article explores the core specifications that define this powerhouse splitter, providing a clear, data-driven look at what it brings to mission-critical systems. From minimizing signal loss to ensuring seamless installation, understanding these parameters is the first step toward building a network that performs flawlessly under pressure.
nn
Core Electrical Specifications and Performance Metrics
nn
At the heart of the MOP-MPS-738-50-XMF lies a sophisticated suite of electrical specifications engineered for ultra-reliable signal handling. This section breaks down the critical technical data, ensuring you can confidently integrate this splitter into your existing infrastructure. Below, you will find the complete technical parameters presented in a clear, structured format for easy reference and comparison.
nn
| Parameter | Specification / Value |
|---|---|
| Model Number | MOP-MPS-738-50-XMF |
| Frequency Range | 698 – 3800 MHz |
| Application | For connecting antennas (2-Way, 3-Way, 4-Way configurations) |
| Distribution Loss (dB) | 2-Way: 3.0 dB / 3-Way: 4.8 dB / 4-Way: 6.0 dB |
| Insertion Loss (dB) | 2-Way: ≤ 0.9 dB / 3-Way: ≤ 1.2 dB / 4-Way: ≤ 1.2 dB |
| VSWR (dB) | ≤ 1.3 |
| Operation Temperature (°C) | -20 to +70 |
| Isolation (dB) | ≥ 20 |
| Average Power (W) | 50 |
| Inter-modulation (dBc) | ≤ -153 dBc (with 2 x 43 dBm test tones) |
| RF Connector | 4.3-10 – Female |
| Impedance | 50 Ω |
| Waterproof Rating | IP65 |
nn
Understanding the Electrical Specifications in Real-World Applications
nn
The technical data above tells a compelling story of a component designed for high-stakes environments. The extremely wide frequency range of 698–3800 MHz is a standout feature, providing unparalleled flexibility for multiband networks. It covers everything from legacy cellular bands to modern 5G NR spectrum, as well as LTE, GSM, and Wi-Fi frequencies, making it a genuinely future-proof investment. This breadth ensures that you can use the same splitter for diverse services, simplifying stock management and deployment.
nn
The distribution loss figures are precisely what you would expect from an ideal, lossless signal divider: 3.0 dB for a 2-way split, 4.8 dB for a 3-way, and 6.0 dB for a 4-way configuration. This mathematical precision confirms that the device is faithfully dividing input power without significant parasitic losses. More impressive, however, is the ultra-low insertion loss across all configurations. With a maximum of only 0.9 dB for a 2-way split and 1.2 dB for both 3-way and 4-way, this splitter minimizes the overall signal attenuation in the distribution line. This is critical for maintaining signal strength at the antenna ports, especially in long cable runs or complex DAS (Distributed Antenna Systems) where every tenth of a dB counts. In practice, this means stronger downstream signals for end users and potentially fewer active components (like amplifiers) needed in the chain.
nn
Reliability Under Harsh Conditions
nn
Beyond pure electrical performance, the MOP-MPS-738-50-XMF is built to endure. The VSWR specification of ≤ 1.3 is exceptionally low, indicating an excellent impedance match across the entire frequency band. A low VSWR minimizes signal reflections, protects sensitive transmitter circuitry, and ensures maximum power transfer to the antennas. This is particularly vital in high-power applications where reflected energy can cause overheating and component degradation. Furthermore, the IP65 waterproof rating is a critical advantage for outdoor, tower-mounted, or weather-exposed installations. It guarantees protection against dust ingress and low-pressure water jets, meaning the splitter can withstand rain, snow, and humidity without performance degradation over years of service.
nn
The inter-modulation distortion (IMD) performance is another hallmark of quality. An IMD specification of ≤ -153 dBc (when tested with two +43 dBm carriers) demonstrates outstanding linearity and clean signal handling. This is indispensable in modern wireless systems where multiple high-power carriers operate simultaneously. Poor IMD performance would create spurious signals that could interfere with adjacent channels, reducing network capacity and data throughput. By maintaining such tight distortion levels, this splitter ensures that your network remains clean, efficient, and compliant with stringent regulatory standards.
nn
The Power of Versatile Connectivity: 2-Way, 3-Way, and 4-Way Configurations
nn
One of the most significant practical advantages of this component is its inherent design for multiple configuration options. It is not a single-purpose unit but rather a flexible platform that can be deployed as a 2-way, 3-way, or 4-way power divider simply by using the appropriate ports. This adaptability is a game-changer for system designers and installers. It reduces inventory complexity—you only need one model number for three different splitting ratios. For field technicians, this means less guesswork and faster deployment, especially when site requirements change during the installation phase. The 50-watt average power handling capacity is robust enough for most macro-cell and small-cell applications, providing headroom for future power increases. When combined with the standard 50Ω impedance and the reliable 4.3-10 female connectors, the MOP-MPS-738-50-XMF offers a plug-and-play solution that integrates seamlessly with modern base stations, antennas, and feeder cables.
nn
Conclusion: A Cornerstone for High-Performance Networks
nn
In summary, the MOP-MPS-738-50-XMF is more than just an RF splitter; it is a precision-engineered component that directly contributes to the reliability, clarity, and efficiency of your communication system. By carefully controlling insertion loss, VSWR, and inter-modulation distortion across an exceptionally wide frequency range, it ensures that signal integrity is preserved from the base station to the antenna. Its IP65-rated durability makes it suitable for the harshest outdoor environments, while the flexible 2-way, 3-way, or 4-way configurations simplify logistics and deployment. For any system integrator or network operator seeking a high-performance, future-ready splitter that will deliver consistent results for years to come, this model represents a benchmark in electrical specifications and build quality. Investing in such quality components is the most reliable path to achieving the robust, high-capacity networks that today’s users demand.
