Unleashing Dominance: The 300W 1-3GHz RF Amplifier for Modern Warfare
nnIn an era where electromagnetic spectrum superiority dictates tactical outcomes, the 300W 1-3GHz RF amplifier emerges as a game-changing asset for defense and communication systems. This wideband power amplifier delivers a staggering 54.8dBm saturated output across the critical 1-3GHz spectrum, maintaining ±2dB flatness even in the harshest battlefield environments. By integrating cutting-edge gallium nitride (GaN) technology with advanced thermal management, it achieves 30% greater power density than traditional silicon-based designs, ensuring uninterrupted 24/7 mission-critical performance. Its seamless transition between continuous wave (CW) and pulse modes makes it indispensable for electronic warfare, radar, and tactical communications.nn
Unmatched Reliability Through Triple-Layer Protection
nnThe amplifier’s hallmark is its triple-layer protection circuitry, setting a new benchmark for operational reliability. The overvoltage protection system actively monitors 32V DC inputs, instantaneously isolating the amplifier during voltage spikes exceeding 34V or drops below 26V—all without waveform distortion. Unlike commercial units that compromise performance for safety, this design employs adaptive feedback control to maintain optimal efficiency during voltage fluctuations, safeguarding sensitive downstream components. Combined with reverse polarity and over-temperature protection (triggering power-off at 85°C and reactivating at 65°C), the unit ensures robust operation across extreme environments.nn
Cw/Pulse Power Amplifier Performance: Spectral Purity Meets Raw Power
nnWhat truly sets this CW/pulse power amplifier apart is its exceptional spectral cleanliness. Achieving >60dBc non-harmonic suppression and >10dBc harmonic rejection, it delivers clean, reliable signals essential for sensitive SIGINT and ECM applications. The amplifier’s ability to handle output VSWR up to 5:1 without damage, coupled with automatic shutdown and alarm features, makes it ideal for mismatched antenna loads common in tactical deployments.nn

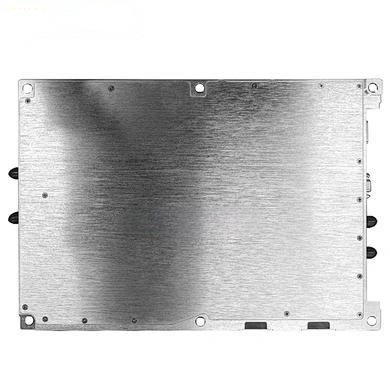

Mechanical Ruggedness in a Compact Form
nnHoused in a 365x200x30mm alloy chassis weighing just [weight not specified], the unit integrates seamlessly into mobile or fixed installations. Its compact footprint belies its robust design, featuring SMA (F) input and Type N (F) output connectors for tight cabling, with a DB9 control interface and 4W4 power connector for simplified integration. The unit operates from -40°C to +60°C, surviving the harshest theaters of operation.nn
| Parameter | Specification |
|---|---|
| Working Frequency | 1000-3000 MHz |
| Input Signal Type | CW & Pulsed |
| RF Input Drive | 5±2 dBm |
| Saturated Power Output | ≥54.8 dBm |
| Flatness @ Psat | ±2 dB |
| Harmonics @ Max Power | >10 dBc |
| Non-Harmonic Spurious @ Max Power | >60 dBc |
| Output VSWR | ≤2 |
| Input VSWR | ≤2 |
| Power On/Off Time | TTL 0/3.3V (On: 0V, Off: 3.3V, Default: 0V) |
| Operating Voltage | 32V |
| Impedance | 50 Ohm |
| Output VSWR Protection | VSWR≥5:1 triggers shutdown and alarm |
| Reverse Polarity Protection | Yes |
| Over Temperature Protection | Shutdown at >85°C, reactivate at <65°C |
| Overvoltage/Undervoltage Protection | Shutdown at >34V or <26V |
| Communication Model | RS485 serial communication |
nn
| Mechanical Parameter | Specification |
|---|---|
| RF Input Connector | SMA [F] |
| RF Output Connector | Type N [F] |
| Power Supply Connector | 4W4 |
| Control Connector | DB9 |
| Dimensions | 365 x 200 x 30 mm (L x W x H, tolerance ±1mm) |
| Weight | [Not specified] |
| Finishing | Alloy iridit |
| Operating Temperature | -40°C to +60°C |
nn
Future-Proof Architecture for Evolving Threats
nnBeyond its current capabilities, this 300W 1-3GHz RF amplifier features a modular design that supports field-upgradable power scaling. The built-in overvoltage protection circuitry automatically adapts to higher voltage variants up to 50V, while the digital predistortion (DPD)-ready interface ensures seamless integration with next-generation software-defined radios. As electromagnetic spectrum operations become increasingly contested, this amplifier’s combination of brute-force power, intelligent safeguards, and spectral agility positions it as the cornerstone of modern RF dominance—whether hardening critical infrastructure against jamming or enabling multi-band SIGINT collection in adversarial environments.
