Unlocking High-Performance RF Systems: The MOP-0460HA-10F Wideband Horn Antenna
nnHorn antennas are a cornerstone of modern radio frequency engineering, prized for their ability to deliver directional radiation, low signal loss, and wideband performance. These antennas, characterized by their flared waveguide structure, are indispensable in applications ranging from mmWave antenna systems and radar to satellite communications and electromagnetic compatibility testing. Their capacity to operate effectively across broad frequency ranges makes them ideal for scenarios where signal integrity and high power handling are non-negotiable. The MOP-0460HA-10F from MOPTECH exemplifies this excellence, offering a premium, three-channel horn antenna engineered for the most demanding professional RF environments. With its expansive 0.4–6 GHz frequency range and a typical 10dB gain, this high-gain antenna ensures superior signal transmission and reception, seamlessly supporting sub-6GHz 5G networks, Wi-Fi, and critical military frequency bands. Its innovative triple-channel design, featuring three independent N-female connectors, enables simultaneous multi-signal transmission without cross-interference—an essential capability for mmWave antenna testing and complex RF system deployments. Whether for laboratory validation or field operations, this wideband horn antenna delivers remarkable versatility and reliability.nn
Exceptional Wideband Horn Antenna Design and Capabilities

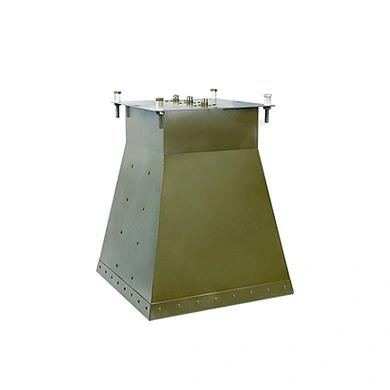

nnEngineered for superior performance, this wideband horn antenna achieves a typical 10dB gain that sharply focuses directional signals while minimizing dispersion. This focusing effect significantly enhances link reliability for both commercial and defense applications, ensuring clear, consistent communication. The antenna’s impressive 300W power handling capacity means it excels in high-stress scenarios, including radar operations and jamming-resistant communication systems. The robust construction is equally noteworthy: a military-grade aluminum structure, finished with a protective army green radome, provides outstanding durability against harsh environmental conditions while offering effective EMI shielding and weather resistance. Despite its robust build, the antenna maintains a compact, lightweight form factor, facilitating effortless deployment in both field operations and laboratory environments. Electrical performance is further refined by excellent efficiency characteristics, including a maximum VSWR of ≤2.5, which minimizes signal reflection to guarantee optimal power transfer across the entire operational bandwidth. This combination of wide frequency coverage, high-power capability, and precision engineering makes the antenna an ideal solution for mission-critical communications, electronic warfare systems, and advanced RF research applications.nn
Comprehensive Specifications for the MOP-0460HA-10F
nnTo fully appreciate the technical capabilities of this horn antenna, the following table details its key electrical and mechanical parameters:nn
| Electrical Parameters | |
|---|---|
| Frequency Range | 0.4-6 GHz (CH1), 0.4-6 GHz (CH2), 0.4-6 GHz (CH3) |
| Output Power | 300W Max. |
| VSWR | ≤2.5 |
| Gain (TYP) | 10 dB |
| Connector | N Female3 |
nn
| Mechanical Parameters | |
|---|---|
| Outer Dimensions (DiameterHeight) | About 370370480 mm |
| Weight | 11.8 kg |
| Radome Color | Army Green |
| Basic Material | Aluminum |
nn
Optimizing mmWave Antenna Testing and Deployment
nnThis horn antenna is not merely a component; it is a complete solution for advanced RF work. Unlike standard RF antennas, the MOP-0460HA-10F combines wideband horn antenna flexibility with high gain precision. Its three-channel design allows simultaneous multi-frequency testing, a boon for engineers developing and characterizing mmWave antenna systems. The 300W power rating ensures reliability in high-stress conditions, while the low VSWR guarantees efficient power transfer, reducing losses and improving system performance. For military applications, the rugged construction and EMI shielding are critical for maintaining operational security and integrity. Whether used in anechoic chambers for precise measurements or in the field for communication relay, this antenna delivers unmatched performance. The army green radome and aluminum construction also ensure that the antenna withstands extreme temperatures, moisture, and physical impact, making it a reliable partner in the most challenging environments.nn
Conclusion: A Reliable Choice for Mission-Critical Communications
nnIn conclusion, the MOP-0460HA-10F is a high-gain, wideband horn antenna that meets the rigorous demands of both commercial and defense RF systems. Its 0.4-6 GHz frequency coverage, 10dB gain, and 300W power handling make it a versatile tool for a wide array of applications, from 5G and Wi-Fi to radar and electronic warfare. The innovative triple-channel design and robust construction ensure that it can deliver consistent, high-quality performance in even the most challenging conditions. For professionals seeking a reliable wideband horn antenna that excels in mmWave antenna testing, high-power signal transmission, and secure military communications, the MOP-0460HA-10F stands out as an optimal choice. Its combination of precision engineering, durable build, and exceptional electrical characteristics makes it a valuable asset for any advanced RF system.
