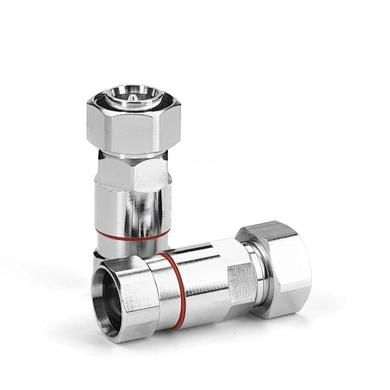

Uncompromising RF Performance: The 50Ω DC~3 GHz Connector Assembly
nnIn the demanding world of radio frequency communications, signal integrity is everything. Whether deployed in a congested urban base station or a remote outdoor antenna, the connection between components must be flawless. This high-performance RF connector assembly is engineered for exactly that purpose, providing a robust bridge for signal transmission from DC to 3 GHz. With a characteristic impedance of 50Ω—the industry standard for most telecom and wireless systems—this assembly ensures minimal signal reflection and optimal power transfer. For engineers tasked with building reliable networks, this connector is not just a component; it is a guarantee of consistent, low-loss performance.nn
Exceptional Electrical Stability and Low Signal Loss
nnThe true measure of any quality connector lies in its electrical characteristics. This assembly excels across every critical parameter, delivering stable, clean signal paths even under demanding conditions. The exceptionally low Voltage Standing Wave Ratio (VSWR) of ≤1.1 from DC to 3.0 GHz means that transmitted power is efficiently radiated rather than reflected back to the source. Coupled with an insertion loss of ≤0.1 dB at 3 GHz, this connector ensures that your signal maintains its strength over long cable runs. For systems sensitive to interference, the Passive Intermodulation (PIM) performance is equally stellar, rated at ≤-155 dBc at 2×20W, drastically reducing spurious signals that can degrade system capacity.nn
Rugged Construction and Reliable Materials
nnTo achieve such high electrical stability, the connector is built from carefully selected materials. The center contact is machined from brass and finished with a silver plating, which offers superior conductivity and resists oxidation. The body and outer conductor are constructed from a brass alloy and are treated with a tri-alloy plating, providing an extra layer of corrosion resistance and ensuring a consistent grounding path. The insulator is precision-molded from PTFE, a material renowned for its low dielectric loss and stable performance across a wide temperature range, while the gasket uses durable silicon rubber to ensure a tight, weather-resistant seal.nn
Comprehensive Specifications for Critical Applications
nnWhen you require absolute certainty in your system design, every specification matters. Below is the complete set of technical data for this RF connector assembly, structured for easy reference and integration into your project documentation.nn
| Parameter | Value / Rating |
|---|---|
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC ~ 3 GHz |
| VSWR | ≤1.1 @ DC~3.0 GHz |
| Insertion Loss | ≤0.1 dB @ 3 GHz |
| PIM (Passive Intermodulation) | ≤-155 dBc (2×20W) |
| Insulation Resistance | ≥5000 MOhm |
| Dielectric Strength | ≥2500 V rms |
| Center Contact Resistance | ≤1.0 mOhm |
| Outer Contact Resistance | ≤1.0 mOhm |
| Temperature Range | -40℃ ~ +85℃ |
| Waterproof Rating | IP67 |
nn
Construction Materials and Plating Details
n n
| Component | Material | Plating / Finish |
|---|---|---|
| Center Contact | Brass | Silver Plating |
| Body & Outer Conductor | Brass Alloy | Tri-Alloy Plating |
| Insulator | PTFE | — |
| Gasket | Silicon Rubber | — |
nn
Field-Ready Protection: IP67 and Harsh Environment Suitability
nnA high-performance electrical design is only as good as its ability to survive in the field. This RF connector assembly has been engineered with an IP67 waterproof rating, meaning it is fully protected against dust ingress and can be submerged in water up to 1 meter for 30 minutes. This level of protection is non-negotiable for outdoor applications such as base stations, distributed antenna systems (DAS), and weather-exposed RF equipment. Furthermore, the wide operational temperature range of -40℃ to +85℃ guarantees reliable start-up and continuous operation, whether in a freezing northern winter or a sun-baked rooftop installation.nn
Conclusion: A Trusted Connection for High-Stakes RF Systems
nnChoosing the right RF connector assembly is a decision that impacts overall system reliability, signal quality, and long-term maintenance costs. This assembly delivers a balanced mix of electrical precision and mechanical toughness. From its low VSWR and minimal insertion loss to its robust IP67-rated shell and temperature resilience, every element has been optimized for the needs of modern RF communication. When your project calls for a connector that can withstand the elements while maintaining exceptional signal integrity, this is the assembly to specify. It doesn’t just complete a circuit—it strengthens your entire network.
