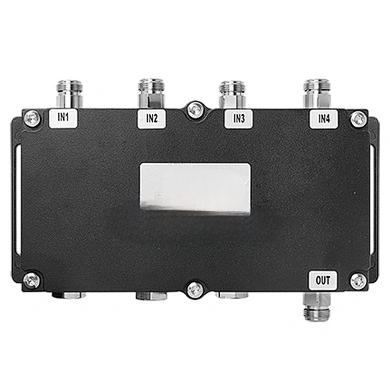

Unveiling the 4 In 1 Out UVA Hybrid Combiner PIM – 150dBc Bridge: The Ultimate RF Solution
nnIn the demanding world of telecommunications, signal purity and system efficiency are paramount. When managing multiple RF sources in the 806-890MHz band, a standard combiner often falls short, introducing interference and degrading network performance. Enter the 4 In 1 Out UVA Hybrid Combiner PIM – 150dBc Bridge with N – F Connectors. This advanced device not only consolidates four input signals into a single, powerful output but also achieves remarkably low intermodulation distortion. Whether you are upgrading a base station or optimizing a DAS network, this component offers a level of performance and reliability that is hard to match. Let’s explore why this Hybrid combiner 806-890MHz stands out as a cornerstone of modern RF infrastructure.nn
The Power of a 4 In 1 Out RF Combiner
nnOne of the primary challenges in any multi-antenna or multi-channel system is signal consolidation. Without an efficient combiner, systems become cluttered, and signal loss or interference can cripple performance. This device functions as a highly efficient 4 in 1 out RF combiner, capable of merging four distinct input paths into a single transmission line. This simplifies the overall system architecture, reducing the need for multiple cables and additional hardware. By integrating signals from multiple transmitters or receivers, you achieve a cleaner, more manageable setup that is easier to maintain and upgrade. The hybrid design ensures that the combiner maintains impedance matching across all ports, minimizing reflections and maximizing power transfer, which is crucial for maintaining signal integrity in high-density environments.nn
Low PIM and Signal Purity: The -150dBc Advantage
nnIntermodulation distortion (PIM) is the silent killer of RF performance. When two or more high-power signals pass through a non-linear device, they generate spurious signals that can fall into the receive band, causing dropped calls and data errors. The UVA combiner bridge design in this product directly addresses this issue. With a PIM specification of ≤ -150 dBc (2× +43dBm), this combiner ensures that the unwanted distortion products are suppressed to an industry-leading low level. The Hybrid combiner 806-890MHz achieves this through precise impedance matching and the use of high-quality ferrite materials in its bridge circuit. This extreme purity makes it ideal for sensitive applications where every dB of noise floor matters, such as in LTE or 5G networks operating in the 800-900 MHz spectrum.nn
Broadband Hybrid Coupler 806-890MHz: Technical Specifications
nnTo appreciate the full capabilities of this device, it is essential to examine its technical parameters. As a Broadband hybrid coupler 806-890MHz, it offers consistent performance across the entire frequency range. Below are the detailed specifications:nn| Parameter | Value |n| :— | :— |n| Frequency Range (MHz) | 806 – 890 |n| Insertion Loss (dB) | ≤ 7.2 |n| VSWR | ≤ 1.3 |n| Isolation (dB) | ≥ 20 |n| Power Handling (W) | 200, Avg |n| PIM (dBc) | ≤ -150 @ 2× +43 dBm |n| Connector | N-F, 50 Ω |n| Operating Temperature (°C) | -26 to +65 |n| Color | Black |n| Protection Level | IP65 |nnThese parameters highlight the device’s balance between low loss and high isolation. An insertion loss of ≤7.2 dB is typical for a 4-way hybrid combiner of this type, while the isolation of ≥20 dB ensures that the four input ports do not interfere with one another. The 200W average power handling capability makes it suitable for high-power base station applications.nn
Robust Design for Outdoor Environments
nnOutdoor installation requires equipment that can withstand the elements. This combiner is built for resilience. Its IP65 protection level means it is completely protected against dust ingress and low-pressure water jets from any direction. The operating temperature range of -26°C to +65°C ensures reliable function in harsh climates, from freezing winters to scorching summers. Paired with the rugged N-F connectors, which offer a secure and weather-resistant connection, this unit is a robust outdoor component.nn
Why Choose This Hybrid Combiner 806-890MHz?
nnWhen selecting a combiner for your RF network, the choice often comes down to a trade-off between performance, size, and cost. The 4 In 1 Out UVA Hybrid Combiner PIM – 150dBc Bridge excels on all fronts. Its low PIM performance directly translates to better network quality and fewer customer complaints. The compact UVA combiner bridge design allows for easier mounting in tight spaces. By consolidating four signals into one, you also save on cabling and installation costs. For system integrators and network operators looking to clean up their RF infrastructure without sacrificing performance, this device offers a reliable and future-proof solution. It ensures that your Hybrid combiner 806-890MHz investment delivers consistent, interference-free communication day in and day out, even in the most challenging environments.nnIn conclusion, whether you require a 4 in 1 out RF combiner for a new build or an upgrade to an existing system, the features of this product—from its low PIM to its IP65 rating—make it a superior choice for professional RF applications.
