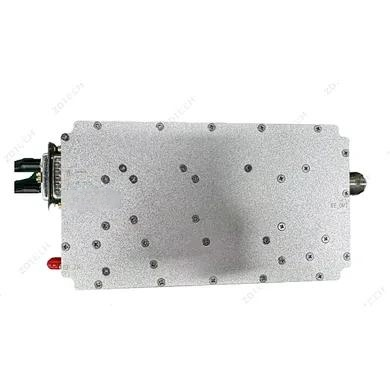

Unleash Signal Potential with the 420–6000MHz 100W Power Amplifier Module
nn
In the relentless pursuit of efficient and stable signal transmission, the 420–6000MHz 100W power amplifier module emerges as a premier solution for demanding communication and testing environments. Engineered for versatility and performance, this module delivers robust signal amplification across a broad spectrum, ensuring reliable connectivity and precision in every application. Whether deployed in communication base stations to extend coverage or in scientific research for accurate signal processing, its capabilities are designed to exceed expectations.
nn
The 420–6000MHz 100W power amplifier module operates over an impressive frequency range from 420 to 6000MHz, covering a wide array of communication bands. This flexibility allows customization to meet specific customer needs, adapting seamlessly to diverse scenarios. With a powerful output of 100W and a maximum power level of 50±0.5dBm, it provides the necessary boost for signals, enhancing coverage in base stations or enabling precise amplification in laboratory tests. The module’s gain of 45±1dB, with in-band fluctuation tightly controlled at ≤2dB, ensures stable signal transmission while minimizing distortion. Superior spurious emission control—with in-band emissions at ≤-15dBm/1MHz and out-of-band noise not exceeding background levels—preserves signal purity, critical for high-fidelity applications.
nn
Exceptional Stability in Variable Environments
nn
Reliability is paramount in signal amplification, and this module excels under challenging conditions. It operates stably across an ambient temperature range of -10°C to +55°C, with gain and power stability rated at ±1.5dB and ±1dB, respectively. The output voltage standing wave ratio (VSWR) is maintained at ≤1.30, optimizing signal transmission efficiency and reducing reflections. The SMA female external screw internal hole RF output interface ensures convenient and secure connections, streamlining integration into existing systems.
nn
Choosing the 420–6000MHz 100W power amplifier module means selecting a professional, high-performance solution that provides solid protection for your communication and signal processing needs. From telecom infrastructure to advanced research, this module delivers consistent results.
nn
Technical Specifications of the 420–6000MHz 100W Power Amplifier Module
nn
| Test Item | Indicator | Unit | Note |
|---|---|---|---|
| Frequency Range | 420–5850 | MHz | Customizable for clients |
| Operating Voltage | 28 | V | 28–36V |
| Maximum Output Power | 50±0.5 | dBm | 100W @ ≤7A |
| Gain | 45±1 | dB | Peak-to-peak |
| In-band Fluctuation | ≤2 | dB | Peak-to-peak |
| Spurious Emission (Within Operating Band) | ≤-15 | dBm/1MHz | Measured with CW signal added to center frequency to maximum output power |
| Spurious Emission (Out of Operating Band 9kHz–1GHz) | No higher than normal background noise | dBm | – |
| Spurious Emission (Out of Operating Band 1G–12.75GHz) | ≤-10 | dBm | Without power, tested with dual directional coupler |
| Output VSWR (Without Power) | ≤1.30 | – | Tested without power, dual directional coupler |
| Output VSWR (With Power) | ≤1.30 | – | Tested with power, dual directional coupler |
| Operating Environment Temperature | -10 to +55 | °C | Low-temperature startup capability |
| Gain Stability | ±1.5 | dB | @-40°C to +55°C |
| Power Stability | ±1 | dB | @-40°C to +55°C |
| Power Supply Requirement | ≥8 | A | @+28Vdc for continuous wave output 100W |
| Power Supply Interface | Red-positive, black-negative | – | Red-positive, black-negative |
| RF Output Connector | SMA | – | SMA female outer spiral socket |
nn
Available Model Variants of the 420–6000MHz 100W Power Amplifier Module
nn
| Model | Frequency (MHz) | Power (dBm) | Current (A) | Voltage (V) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| MOP-PA-420/450M-100W | 420–450 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-720/800M-100W | 720–800 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-830/930M-100W | 830–930 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-900/1000M-100W | 900–1000 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-1170/1280M-100W | 1170–1280 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-1550/1620M-100W | 1550–1620 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-2400/2500M-100W | 2400–2500 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-3400/3600M-100W | 3400–3600 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-5400/5700M-100W | 5400–5700 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
| MOP-PA-5725/5900M-100W | 5725–5900 | 50±1 | ≤7 | 32–36 | 94x170x27 | 0.8 |
nn
Conclusion: Why the 420–6000MHz 100W Power Amplifier Module Stands Out
nn
The 420–6000MHz 100W power amplifier module combines wide frequency coverage, high output power, and exceptional stability to meet the rigorous demands of modern communication systems. Its robust design, with customizable frequencies and reliable performance across temperature extremes, makes it an ideal choice for applications ranging from infrastructure to research. By integrating this module into your setup, you invest in a solution that ensures signal integrity and operational efficiency. Embrace the 420–6000MHz 100W power amplifier module as your partner in achieving superior signal amplification—a choice that delivers consistent, professional results every time.
