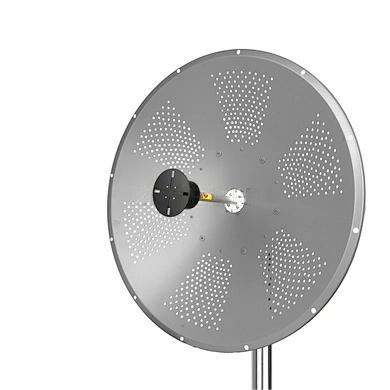

Unleashing Superior Connectivity: The MOP-MPBA-1727-24-2NF High-Gain Antenna
n
In the world of wireless communication, signal strength and reliability are paramount. Whether you are deploying a long-range Wi-Fi network, enhancing cellular coverage, or supporting critical IoT infrastructure, the antenna you choose is the cornerstone of performance. Enter the MOP-MPBA-1727-24-2NF, a robust parabolic antenna engineered to deliver exceptional results in demanding environments. This powerful solution is not just about raw power; it is about precision, durability, and seamless integration. Below, we dive into what makes this antenna a standout choice for professionals who cannot compromise on connectivity.
n
When selecting a high-performance antenna, understanding the technical specifications is crucial. However, raw numbers only tell part of the story. The MOP-MPBA-1727-24-2NF is designed to bridge long distances with minimal signal loss, making it ideal for point-to-point links, backhaul connections, and large-scale coverage zones. Its dual-polarization capability is a game-changer, effectively doubling data throughput by transmitting and receiving on both vertical and horizontal planes simultaneously. This feature is particularly beneficial in congested RF environments where interference is common. Let’s break down the core engineering that powers this device.
nn
Key Specifications and Technical Mastery
n
To truly appreciate the capabilities of the MOP-MPBA-1727-24-2NF, one must examine its engineered parameters. The following table consolidates all critical data points, ensuring you have a complete picture of its operational capacity. Every specification is designed to work in harmony, providing a stable and powerful connection even under adverse conditions.
nn
| Parameter | Value |
|---|---|
| Model | MOP-MPBA-1727-24-2NF |
| Connector Type | N-Female (x2) |
| Frequency Range | 1700 – 2700 MHz |
| Gain | 24 dBi |
| Bandwidth | 1000 MHz |
| Horizontal Beamwidth (3 dB) | 11° |
| Vertical Beamwidth (3 dB) | 15° |
| VSWR | ≤ 1.8 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical + Horizontal |
| Maximum Power Handling | 100 W |
| Dimensions (Diameter) | Φ 0.9 m |
| Weight | 12 kg |
| Front-to-Back Ratio | ≥ 31 dB |
| Rated Wind Velocity (Survival) | 60 m/s |
| Support Rod Diameter / Mounting | Φ 35 – 50 mm |
nn
Why the MOP-MPBA-1727-24-2NF Excels in High-Density Environments
n
The specifications above reveal a design philosophy focused on efficiency and resilience. The 24 dBi gain is remarkably high, allowing for stable links over extended distances without requiring excessive power amplification. Meanwhile, the narrow horizontal beamwidth of 11° ensures that the signal is tightly focused, drastically reducing interference from adjacent transmitters. This makes the MOP-MPBA-1727-24-2NF perfect for urban deployments where spectrum is crowded. The wide bandwidth of 1000 MHz further enhances flexibility, supporting both 4G and 5G frequency bands, as well as unlicensed spectrum applications.
nn
Durability and Installation Versatility
n
Outdoor antennas must withstand the elements, and this model does not disappoint. With a rated wind velocity of 60 m/s, it can survive severe storms without structural failure. The compact 0.9-meter diameter and 12 kg weight make it manageable for a two-person installation team, while the flexible support rod diameter range (35-50 mm) ensures compatibility with most standard masts and brackets. The dual N-Female connectors provide reliable, weather-resistant connections that maintain signal integrity over time.
nn
Conclusion: A Reliable Workhorse for Your Network
n
Choosing the right antenna can mean the difference between a network that struggles and one that thrives. The MOP-MPBA-1727-24-2NF offers a compelling package of high gain, robust construction, and dual-polarization efficiency. Whether you are extending coverage to a remote facility or fortifying a primary backhaul link, this antenna delivers the consistent performance demanded by modern wireless systems. Its thoughtful design, from the tightly controlled beamwidth to the heavy-duty wind rating, ensures that your investment remains productive for years to come. For professionals seeking a dependable, high-performance solution, the MOP-MPBA-1727-24-2NF stands ready to provide the clear, strong signal your operations require.
