Introducing the MOP-CA-727-4.5/6NF Omnidirectional Antenna: A Closer Look at Performance and Design
nnIn the world of wireless communication, the antenna is the unsung hero—the critical bridge between signal transmission and reception. For network engineers, system integrators, and telecommunications professionals, selecting the right antenna can make the difference between a robust, reliable connection and frustrating signal dropouts. The MOP-CA-727-4.5/6NF omnidirectional antenna has emerged as a versatile solution for applications demanding broad coverage and reliable performance across multiple frequency bands. This comprehensive review explores its specifications, real-world capabilities, and why it deserves consideration for your next deployment.nn
Understanding Key Specifications for Optimal Performance
nnThe MOP-CA-727-4.5/6NF is engineered to operate across two critical frequency ranges: 700–960 MHz and 1700–2700 MHz. This dual-band capability makes it an excellent choice for modern networks that need to support 4G LTE, 5G NR, Wi-Fi, and IoT devices simultaneously. The antenna’s N-Female connector type ensures compatibility with a wide array of professional-grade cables and equipment, providing a secure, low-loss connection that resists environmental degradation.nnOne of the standout features of this model is its gain range of 4.5 to 6 dBi. This moderate gain level strikes a balance between coverage area and signal strength, making it ideal for indoor installations such as office buildings, warehouses, and public venues, as well as outdoor environments like stadiums and transit hubs. The 360° horizontal beam-width delivers truly omnidirectional coverage, eliminating dead zones in circular patterns, while the vertical beam-width of 60° (for lower frequencies) and 40° (for higher frequencies) ensures efficient vertical focusing without wasting energy on the sky or ground.nn
Technical Data and Electrical Characteristics
nnTo fully appreciate the engineering behind this antenna, we must examine its electrical and mechanical specifications. The voltage standing wave ratio (VSWR) of ≤1.8 indicates excellent impedance matching across the operating bands, which minimizes signal reflection and maximizes power transfer. Combined with a nominal impedance of 50 ohms—the industry standard—this antenna integrates seamlessly with most RF systems.nnBelow is a detailed breakdown of the key parameters for the MOP-CA-727-4.5/6NF:nn
| Parameter | Specification |
|---|---|
| Model | MOP-CA-727-4.5/6NF |
| Connector Type | N-Female |
| Frequency Range | 700–960 MHz / 1700–2700 MHz |
| Gain | 4.5–6 dBi |
| Horizontal Beam-width | 360° |
| Vertical Beam-width | 60° (low band) / 40° (high band) |
| VSWR | ≤1.8 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Power | 100 W |
| Dimensions | 19 × 6 × 6 cm |
| Weight | 0.4 kg |
nn

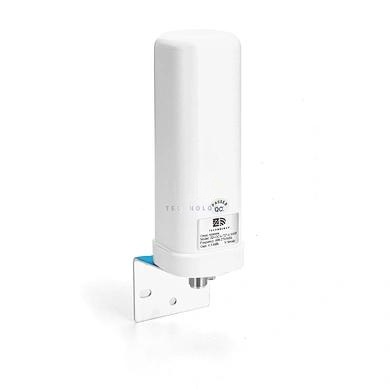

Physical Design and Installation Considerations
nnWeighing just 0.4 kg and measuring 19 x 6 x 6 cm, the MOP-CA-727-4.5/6NF is remarkably compact and lightweight. This sleek form factor reduces structural load on mounting brackets and poles, simplifying installation in tight spaces. The vertical polarization aligns with standard base station and access point configurations, ensuring compatibility with existing infrastructure. The 100-watt maximum power rating is sufficient for most indoor and moderate outdoor applications, supporting signal amplifiers and repeaters without risk of damage.nnThe antenna’s N-Female connector is a significant advantage for professionals who prioritize durability. This connector type offers superior weather resistance and mechanical strength compared to smaller RF connectors, making it suitable for both indoor and outdoor installations when properly sealed. The antenna’s compact dimensions also allow for discreet mounting on walls, ceilings, or mast arms, blending into environments where aesthetics matter.nn
Real-World Applications and Use Cases
nnGiven its dual-band coverage and omnidirectional pattern, this antenna excels in several key scenarios. In large indoor spaces like shopping malls, airports, and convention centers, the 360° horizontal coverage eliminates the need for multiple directional antennas, reducing cost and complexity. For distributed antenna systems (DAS) supporting cellular carriers, the MOP-CA-727-4.5/6NF fills coverage gaps effectively while maintaining signal quality.nnOutdoor applications include rooftop installations for small cells, Wi-Fi hotspots in urban plazas, and temporary event networks. The antenna’s lightweight design and robust connector make it easy to deploy quickly, while its gain range ensures reliable connectivity over distances of several hundred meters in line-of-sight conditions. For IoT and sensor networks operating in the 868–928 MHz ISM bands, the low-frequency coverage is particularly valuable, providing penetration through walls and obstacles.nn
Conclusion: Why the MOP-CA-727-4.5/6NF Stands Out
nnThe MOP-CA-727-4.5/6NF omnidirectional antenna delivers a compelling combination of performance, versatility, and value. Its dual-band frequency support, moderate 4.5-6 dBi gain, and full 360° horizontal beam-width make it a workhorse for modern wireless systems. The technical specifications, from the low VSWR of ≤1.8 to the 50-ohm impedance, ensure efficient operation across diverse applications. Whether you are deploying a DAS, extending cellular coverage, or building a robust IoT network, this antenna offers the reliability and ease of integration that professionals demand. With its compact, lightweight design and durable N-Female connector, the MOP-CA-727-4.5/6NF is a smart investment for any wireless communication project.
