Precision Signal Distribution: Mastering the RF Splitter
nnIn the demanding world of modern telecommunications, a reliable RF splitter is the unsung hero ensuring that critical signals reach their destinations without distortion or loss. This precision-engineered solution is designed to deliver exceptional signal distribution across a wide frequency range of 698-2700MHz, making it indispensable for today’s complex communication systems. Whether you need a 2 way splitter for cable installations or a multi-port configuration, this device guarantees low insertion loss and high power handling, meticulously maintaining signal integrity across every connected path. The RF splitter not only simplifies complex cabling but also provides a robust, scalable foundation for networks that demand peak performance, from dense urban deployments to critical public safety infrastructure.nn
Built to Last: The Circular Type Housing Advantage

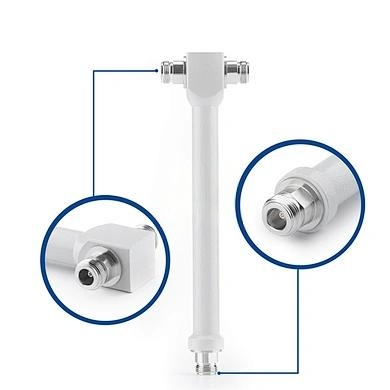

nnConstructed with durability in mind, the RF splitter features a robust circular type housing that provides both superior mechanical protection and efficient heat dissipation. This design is optimized for minimal VSWR (≤1.25:1), ensuring reliable operation in environments where temperature fluctuations and physical stress are common. The 100ohm splitter cable compatibility further enhances its versatility, allowing seamless integration into existing setups without causing signal degradation. The circular type enclosure also simplifies installation in tight spaces, such as equipment racks or wall-mounted junction boxes, where traditional rectangular splitters might struggle to fit. This thoughtful engineering makes the RF splitter a trusted choice for telecom operators and system integrators who require consistent performance over years of service.nn
Key Advantages of the RF Splitter for Modern Networks
nnKey advantages of this RF splitter include its ultra-wideband support (698-2700MHz), which covers critical frequency bands for cellular, public safety, and IoT applications. The guarantee of low PIM performance and high power handling means this 2 way splitter for cable systems can handle multiple high-power signals simultaneously without introducing unwanted intermodulation products. This is particularly crucial in distributed antenna systems (DAS) and wireless backhaul networks, where signal cleanliness directly impacts data rates and reliability. The RF splitter’s ability to maintain stable performance across such a broad spectrum makes it a cost-effective solution for operators modernizing their infrastructure for 5G and other emerging technologies.nn
Performance Metrics: Insertion Loss and Power Handling
nnEngineered for efficiency, the RF splitter minimizes insertion loss to ensure optimal signal strength across all outputs. The following table shows the detailed specifications for all available models, including power variants and connector options.nn
| Model No. | Frequency Range (MHz) | Split Way | VSWR | Insertion Loss (dB) | Average Power (W) | 3rd Order IMD (dBc) | Impedance (Ω) | Connector Types | Operation Temp. (℃) | Application | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MOP-PS-727-200(300/500)-XXNF(MF/DF) | 698-2700 | 2 | ≤1.25:1 | ≤3.3 | 200/300/500 | ≤-155@2x43dBm | 50 | N / 4.3-10 / DIN-Female | -20~+55 | Indoor or Outdoor | Black Plated |
| 3 | ≤5.2 | ||||||||||
| 4 | ≤6.4 | ||||||||||
| MOP-PS-740-200(300/500)-XXNF(MF/DF) | 698-3800 | 2 | ≤1.25:1 | ≤3.5 | 200/300/500 | ≤-150@2x43dBm / -150@2X43dBc | |||||
| 3 | ≤5.5 | ||||||||||
| 4 | ≤7 |
nn
Versatile Deployment: From DAS to Broadcast Systems
nnWhether deployed in 698-2700MHz DAS networks, broadcast systems, or wireless backhaul, this RF splitter delivers consistent performance that professionals can count on. Its combination of wide frequency coverage, low loss, and rugged circular type construction makes it an indispensable component for system integrators seeking reliable signal distribution solutions. The 100ohm splitter cable readiness further extends its utility by ensuring compatibility with legacy cabling infrastructure, reducing the need for costly adaptations. In conclusion, the RF splitter stands out as a high-performance, durable, and versatile component that ensures your network operates at its best. Its attention to detail in design, from the circular type housing to the tight VSWR specifications, provides the peace of mind that signal integrity will be preserved, regardless of the application. Whether you are building a new network or upgrading an existing one, this RF splitter is a wise investment that delivers long-term value and performance.
