Why Your RF Testing Setup Needs a Reliable 100W Dummy Load
nn

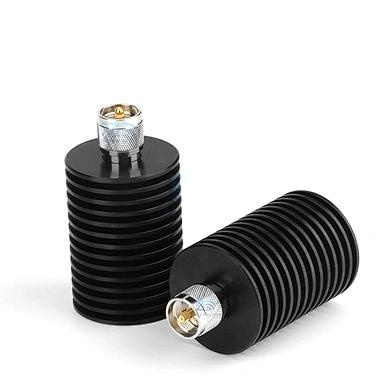

When you are fine-tuning a transmitter or troubleshooting RF interference, a high-quality termination dummy load is one of the most essential tools in your kit. The wrong termination can lead to reflected power, distorted signals, and even damage to expensive equipment. Enter the 100W dummy load—specifically the MOP-DL-1GHz-100W-PL259M from our line—which combines robust power handling with exceptional signal purity. This article explores why this model stands out for RF professionals and hobbyists alike.
nn
Understanding the 100W Dummy Load Specifications
nn
Before diving into specific applications, let us examine the core specifications that define this 100W dummy load. The following table presents all technical parameters in a clear, structured format.
nn
| Parameter | Value/Specification |
|---|---|
| Model Number | MOP-DL-3GHz-xxW-NM (NF/MM/DM/DF) |
| Rated Power Options | 2W, 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC–3 GHz |
| Impedance | 50 Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 |
| PIM3 (dBc @ 2 × 43 dBm) | ≤ -105 |
| PIM5 (dBc @ 2 × 43 dBm) | ≤ -120 |
| Connector Types Available | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types |
| Operating Temperature Range | -20 to +55 °C |
| Humidity Tolerance | ≤ 95% |
nn
As you can see, the 100W dummy load is engineered for reliable performance across a wide set of conditions. The frequency range of DC–3 GHz makes it suitable for both legacy and modern communication systems. Whether you are testing a 2-meter amateur radio transceiver or a UHF industrial link, this termination dummy load handles the task.
nn
VSWR and Signal Integrity in a 100W Dummy Load
nn
A critical feature of any 100W dummy load is its VSWR rating. With a maximum VSWR of 1.2:1 across the entire frequency band, this device minimizes reflections. In practice, this means your signal is absorbed cleanly, giving you accurate power readings and protecting your transmitter from damage. Low VSWR also ensures that you can trust the results of antenna tuning and impedance matching tests.
nn
Low Passive Intermodulation (PIM) Performance
nn
This specific 100W dummy load stands out as a low-PIM component. PIM3 is rated at ≤ -105 dBc at 2 × 43 dBm, while PIM5 reaches ≤ -120 dBc at the same power level. For base station testing or multi-carrier environments, low PIM is non-negotiable. Interference from intermodulation products can mask weak signals or cause desensitization. By using a low-PIM 100W dummy load, you ensure that your test setup does not introduce its own artifacts.
nn
Applications of This Termination Dummy Load
nn
Now that we understand the technical foundations, let us explore real-world scenarios where the MOP-DL-1GHz-100W-PL259M proves invaluable.
nn
Transmitter Calibration and Testing
nn
When you need to calibrate a new amplifier or verify the output power of a transmitter, a termination dummy load is mandatory. Connect the PL259-Male connector directly to your radio, and you have a secure, stable load. The 100W dummy load can absorb up to 100 watts continuously, allowing you to perform extended testing without overheating.
nn
Antenna System Diagnostics
nn
By substituting the antenna with a known 100W dummy load, you can isolate problems. If your SWR meter shows a high reading with the antenna but drops to near 1:1 with the dummy load, the issue lies in the antenna or feedline. Conversely, if the reading remains poor, you may have a transmitter or balun defect. This simple diagnostic method saves hours of troubleshooting.
nn
Low-PIM Measurements for DAS and Small Cells
nn
In modern distributed antenna systems (DAS) and small cell deployments, low intermodulation is crucial. Engineers use a low-PIM 100W dummy load to test cables, connectors, and jumpers before installation. The low PIM performance of this load makes it an ideal reference standard for factory acceptance tests or field verification.
nn
Choosing the Right Connector and Power Variant
nn
While the focus keyword 100W dummy load describes the primary model, the series offers flexibility. The table shows options from 2W to 200W, along with multiple connector types. For most amateur and commercial applications, the 100W variant with PL259-Male is versatile. However, if your system uses Type-N or DIN connectors, you can select the corresponding version without compromising performance.
nn
Conclusion: Invest in a Reliable 100W Dummy Load
nn
A high-quality 100W dummy load is not a luxury—it is a necessity for anyone working with RF transmitters. The MOP-DL-1GHz-100W-PL259M combines robust power handling, excellent VSWR, and low PIM in a compact, durable package. Whether you are performing routine maintenance, calibrating equipment, or designing new systems, this termination dummy load provides the accurate, repeatable load you need. Make the smart choice and add this 100W dummy load to your test bench today.
