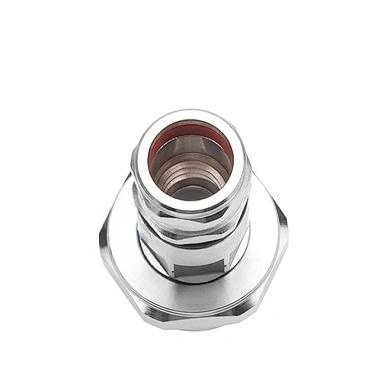

Elevate Your RF Signal with the 7/16 Male RF DIN Plug Coaxial Connector
nnIn the demanding world of RF communication, signal integrity is everything. Every decibel of loss, every hint of interference, can degrade performance and compromise network reliability. To meet this critical need, our 7/16 Male RF DIN Plug Coaxial Connector For 1/2 Super Flexible For Feeder Cable is engineered to deliver unwavering stability and efficiency. Whether you are constructing a new base station or optimizing an existing wireless network, this connector ensures that your signal transmission remains pure, powerful, and dependable.nn
Built for Superior Electrical Performance
nnAt the heart of this connector’s design is a commitment to exceptional electrical characteristics. The 7/16 Male RF DIN Plug Coaxial Connector For 1/2 Super Flexible For Feeder Cable operates with a precise 50-ohm characteristic impedance, covering a broad frequency range from DC to 6 GHz. This ensures compatibility with a wide variety of modern systems, from 3G and 4G to emerging 5G infrastructure. The connector boasts an insulation resistance of ≥10,000 MΩ, while both center and outer contact resistance are kept impressively low at ≤1.5 MΩ. These specifications contribute to extremely low insertion loss (≤0.10 dB) and a voltage standing wave ratio (VSWR) of ≤1.10. Furthermore, passive intermodulation (PIM) at 2x20W is ≤ -160 dBc, effectively minimizing signal distortion and interference to guarantee pure, clear transmission.nn
Specifications at a Glance
nn
| Parameter | Value |
|---|---|
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC ~ 6 GHz |
| Insulation Resistance | ≥10,000 MΩ |
| Center Contact Resistance | ≤1.5 MΩ |
| Outer Contact Resistance | ≤1.5 MΩ |
| Dielectric Strength | 2500V rms |
| Working Voltage | 1400V rms |
| Insertion Loss | ≤0.10 dB |
| VSWR | ≤1.10 |
| PIM (2x20W) | ≤ -160 dBc |
nn
Crafted from Premium Materials for Long-Lasting Durability
nnThis connector is not just about performance; it is built to last. The materials selected for the 7/16 Male RF DIN Plug Coaxial Connector For 1/2 Super Flexible For Feeder Cable are chosen for their conductivity, corrosion resistance, and mechanical strength. The inner conductor pin is crafted from brass with a silver plating, while the inner conductor socket uses tin-bronze with silver plating. The body and outer conductor feature brass with a tri-metal plating for enhanced protection. The insulator is made from high-quality polytetrafluoroethylene (PTFE), and the gasket uses resilient silicone rubber. To ensure secure connections and prevent loosening, the nut is made from brass with a nickel plating. This combination of materials guarantees excellent signal conductivity and robust mechanical durability, even in harsh environments.nn
Material and Plating Details
nn
| Component | Material | Plating |
|---|---|---|
| Inner Conductor Pin | Brass | Silver |
| Inner Conductor Socket | Tin-bronze | Silver |
| Body & Outer Conductor | Brass | Tri-metal |
| Insulator | PTFE | N/A |
| Gasket | Silicone Rubber | N/A |
| Nut | Brass | Nickel |
nn
Exceptional Environmental Adaptability
nnOutdoor and industrial applications demand components that can withstand extreme conditions. The 7/16 Male RF DIN Plug Coaxial Connector For 1/2 Super Flexible For Feeder Cable is engineered to operate reliably across a wide temperature range, from -65°C to +165°C. It has undergone rigorous testing, including MIL-STD-202F thermal shock and vibration tests, ensuring it can handle the stresses of real-world deployments. The connector’s durability exceeds 500 mating cycles, and its sealing class is rated IP68, meaning it can withstand 24 hours of immersion in 1 meter of water at 20°C. Additionally, it is RoHS compliant, making it an environmentally responsible choice.nn
Mechanical and Environmental Specifications
nn
| Specification | Value |
|---|---|
| Durability (mating cycles) | ≥500 |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Condition B |
| Vibration Test | MIL-STD-202, Meth. 204, Cond. B |
| Temperature Range | -65 to +165°C |
| RoHS Compliant | Yes |
| Sealing Class | IP68 (24hrs @ 1m H₂O @ 20°C) |
nn
Conclusion
nnWhen it comes to RF communication, every component matters. The 7/16 Male RF DIN Plug Coaxial Connector For 1/2 Super Flexible For Feeder Cable is a testament to quality engineering, combining outstanding electrical performance, premium materials, and exceptional environmental resilience. By choosing this connector, you are investing in a stable, efficient, and reliable signal transmission solution that will stand the test of time. Whether for communication base station construction or wireless network optimization, this connector delivers the performance you need.
