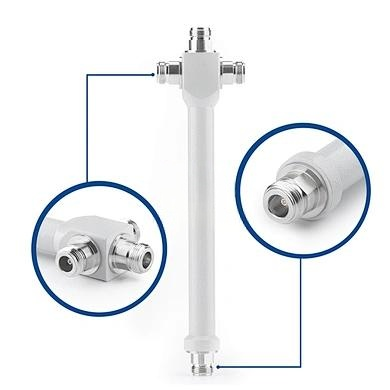

Unlocking Network Efficiency with High-Performance Power Splitters
nnIn the demanding world of telecommunications, the reliability of signal distribution can make or break a network’s performance. These professional-grade power splitters are engineered to meet the rigorous requirements of modern 4G and 5G-ready infrastructure. By dividing an input signal into multiple paths with minimal loss and maximum isolation, these devices ensure that every connected element—from base station antennas to indoor coverage points—receives a clean, consistent signal. Whether you are upgrading an existing 4G base station or deploying a new indoor distribution system, these splitters provide the precision and durability necessary for uninterrupted service.nn
Wide Frequency and Distribution Flexibility
nnEach power splitter is meticulously designed to cover the critical frequency bands of 698-2700MHz and 698-3800MHz, making them ideal for both legacy 4G and emerging broadband applications. The series supports 2-way, 3-way, and 4-way signal distribution, giving network planners the flexibility to tailor coverage to specific site requirements. Standard connector interfaces—including N-type, 4.3-10, and DIN—ensure seamless integration with existing coaxial cables and antenna systems. The combination of these features allows for rapid deployment in both indoor and outdoor environments, from dense urban corridors to remote tower sites.nn
Low Insertion Loss and High Isolation Performance
nnSignal integrity is paramount, and these splitters excel in maintaining it. With extremely low insertion loss—just 3.3 dB for a 2-way split in the 698-2700 MHz range—they preserve signal strength, reducing the need for additional amplification. High isolation between output ports minimizes crosstalk and interference, while the excellent Voltage Standing Wave Ratio (VSWR) of ≤1.25:1 ensures maximum power transfer from the source to the load. This results in cleaner signals, fewer dropped connections, and improved overall network quality.nn
Robust Power Handling and Intermodulation Suppression
nnBuilt for high-power environments, these power splitters are capable of handling 200W, 300W, or 500W of average power, depending on the model selected. This makes them suitable for macro cell base stations and other high-output applications. A standout feature is the exceptional 3rd order intermodulation distortion (IMD) performance of ≤-150 dBc (and ≤-155 dBc for select models). By suppressing unwanted signal mixing products, they maintain signal clarity in dense frequency environments—a critical advantage for carriers managing multiple carriers within the same infrastructure.nn
Environmental Resilience and Durable Design
nnReliability in the field is non-negotiable. These splitters operate across a wide temperature range of -20°C to +55°C, ensuring consistent performance in climates ranging from freezing winters to scorching summers. The black plating process provides a corrosion-resistant finish, protecting internal components from moisture, dust, and physical wear. This robust construction supports outdoor installation without the need for additional enclosures, reducing overall deployment costs.nn
Comprehensive Specifications at a Glance
nnTo help you select the ideal model for your application, the following table details the technical parameters for both frequency variants and distribution configurations.nn
| Parameter | Model MOP-PS-727-200(300/500)-XXNF(MF/DF) | Model MOP-PS-740-200(300/500)-XXNF(MF/DF) |
|---|---|---|
| Frequency Range | 698-2700 MHz | 698-3800 MHz |
| Split Way Options | 2, 3, 4 | 2, 3, 4 |
| VSWR | ≤1.25:1 | ≤1.25:1 |
| Insertion Loss (2-way) | ≤3.3 dB | ≤3.5 dB |
| Insertion Loss (3-way) | ≤5.2 dB | ≤5.5 dB |
| Insertion Loss (4-way) | ≤6.4 dB | ≤7.0 dB |
| Average Power Handling | 200 W / 300 W / 500 W | 200 W / 300 W / 500 W |
| 3rd Order IMD | ≤-155 dBc @ 2×43 dBm | ≤-150 dBc @ 2×43 dBm |
| Impedance | 50 Ω | 50 Ω |
| Connector Types | N / 4.3-10 / DIN-Female | N / 4.3-10 / DIN-Female |
| Operating Temperature | -20°C to +55°C | -20°C to +55°C |
| Application | Indoor or Outdoor | Indoor or Outdoor |
| Finish | Black Plated | Black Plated |
nn
Conclusion: The Optimal Choice for Modern Distribution
nnWhen every decibel of signal strength counts, these power splitters deliver the performance, reliability, and flexibility that network engineers demand. Featuring low insertion loss, high isolation, and robust power handling across a wide frequency spectrum, they are perfectly suited for 4G base stations, indoor distribution systems, and other indoor/outdoor applications. The black plating process and broad operating temperature range ensure long-term stability, while the standard interface options simplify integration into any topology. By choosing these power splitters, you invest in a solution that maximizes network efficiency and minimizes signal degradation—a critical factor in today’s connected world.
