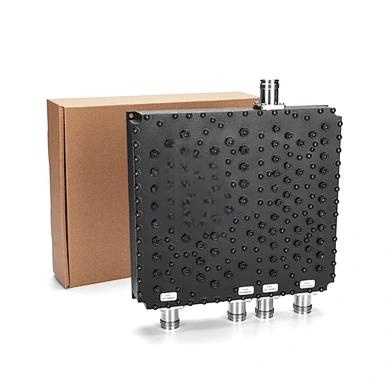

Introduction: Unlocking Superior Network Performance with the RF Combiner / RF Quadplexer
n
In the demanding world of modern telecommunications, the integrity and efficiency of your RF signal path are non-negotiable. As networks densify and spectrum becomes more precious, the equipment you choose must deliver flawless performance under extreme conditions. The RF combiner/RF quadplexer stands as a critical component, designed to consolidate multiple frequency bands into a single antenna feed line, dramatically reducing tower loading and installation costs while maintaining pristine signal quality. This device is engineered for operators who require rigorous isolation, minimal insertion loss, and uncompromised reliability in harsh outdoor environments.
nn
Core Electrical Specifications: What Sets This RF Combiner/RF Quadplexer Apart
n
Every parameter of this quadplexer has been optimized for high-density multi-band systems. The unit supports four distinct frequency ranges essential for modern cellular infrastructure, ensuring seamless operation across LTE and 5G bands. With an industry-leading isolation of greater than 50 dB, adjacent band interference is virtually eliminated, preserving call quality and data throughput. The exceptional voltage standing wave ratio (VSWR) of ≤1.25 ensures maximum power transfer with minimal reflection, protecting sensitive base station equipment.
nn
Detailed Technical Parameters
n
The following table outlines the complete electrical and mechanical specifications for the RF combiner/RF quadplexer. All data points are critical for system integration and performance validation.
nn
| Parameter | Specification / Value |
|---|---|
| Product Type | RF Combiner / RF Quadplexer |
| Frequency Range (MHz) | 729-790 / 850-894 / 1930-1990 / 2110-2170 |
| Insertion Loss (dB) | <1.0 dB (typical across all bands) |
| Isolation (dB) | >50 dB (adjacent band) |
| Voltage Standing Wave Ratio (VSWR) | ≤1.25:1 |
| Intermodulation Products (dBm) | ≤-153 dBc (with 2 x 43 dBm carriers) |
| Maximum Input Power (W) | 200 W (per port) |
| Impedance (Ω) | 50 Ω |
| Operating Temperature Range (°C) | -25°C to +65°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Lightning Protection (kA) | 3 kA; 10/350 μs pulse |
| Ingress Protection Rating | IP67 |
| Connector Type | 5 PCS 4.3-10 Female |
| Color | Grey |
nn
Understanding Insertion Loss and Isolation in Multi-Band Systems
n
Low insertion loss is paramount for maintaining signal strength and reducing the need for additional amplification. In this RF combiner/RF quadplexer, insertion loss is kept below 1.0 dB across all operating bands, which directly translates to better coverage and higher data rates for end users. Simultaneously, the >50 dB isolation ensures that strong signals from one band do not desensitize receivers operating in adjacent bands—a common challenge in crowded spectrum environments. These parameters together make the device ideal for co-location scenarios where multiple operators share infrastructure.
nn
Reliability and Environmental Hardiness
n
Deployed in the most demanding outdoor environments, this quadplexer features an IP67 ingress protection rating, guaranteeing complete protection against dust and temporary immersion in water. Its wide operating temperature range from -25°C to +65°C ensures consistent performance from arctic installations to desert heat. The integrated lightning protection, rated at 3 kA with a 10/350 μs pulse, provides vital surge suppression, safeguarding valuable network equipment against lightning-induced transients—a requirement for cell sites exposed to storms.
nn
Conclusion: Engineering Trust into Every Connection
n
Selecting the right RF combiner/RF quadplexer is a decision that echoes through the entire network lifecycle. This component delivers the precise combination of low intermodulation distortion, high isolation, and robust mechanical construction required for high-performance 4G and 5G deployments. By integrating four critical bands into a single, weatherproof, and lightning-protected enclosure, operators can streamline site architecture without compromising on electrical performance. For network engineers who demand the highest standards in signal integrity and field reliability, this quadplexer stands as a proven solution—reducing total cost of ownership while meeting the most stringent technical specifications. Trust in a design that has been rigorously tested to ensure your network stays ahead of demand, delivering clear, uninterrupted communication in every climate and condition.
